21389 - Toro Super Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Housing Assembly Parts Diagram

Super Recycler Walk-Behind Mower

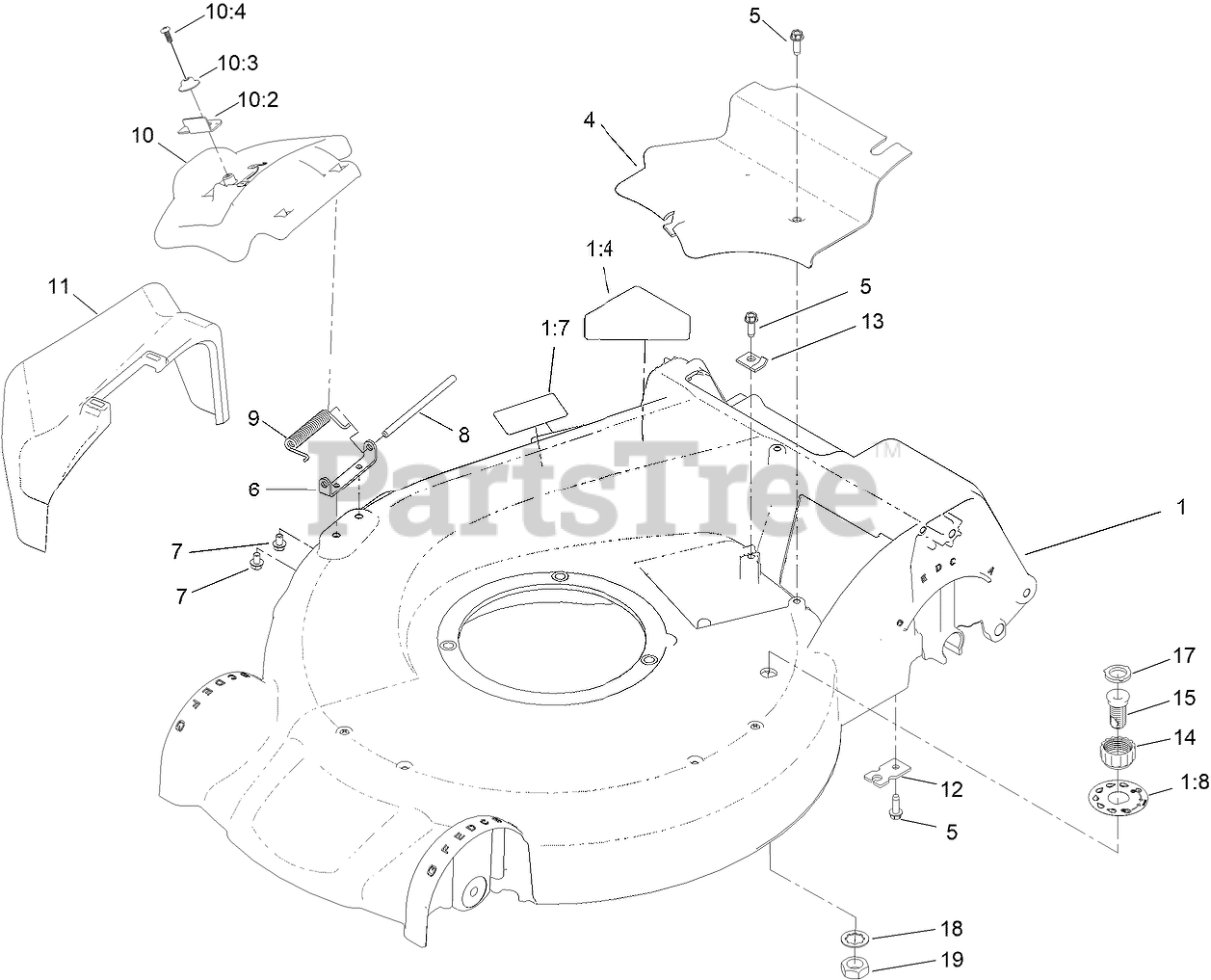

Housing Assembly Parts Diagram

  • Title

1

Toro 140-3768

HOUSING ASM

$222.99

$

Usually ships in 3-6 days

0

1:4

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

1:7

Toro 125-5092

DECAL-PLACEMENT, FOOT

$2.49

$

Usually ships in 3-6 days

0

1:8

Toro 137-9196

DECAL-QUICK WASH

$2.49

$

In Stock, only 2 left!

0

4

Toro 107-7494

COVER-BELT

$21.99

$

In Stock, only 1 left!

0

5

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

6

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

7

Toro 137-4795

SCREW

$1.49

$

In Stock, Qty 20+

0

8

Toro 99-5291

See Supercession: 136-8672
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

9

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

10

Toro 107-3717

DISCHARGE DOOR ASM

$25.99

$

Usually ships in 3-6 days

0

10:2

Toro 138-3221

LATCH-DOOR

$1.99

$

Usually ships in 3-6 days

0

10:3

Toro 138-3242

CAP-DOOR

$3.99

$

In Stock, only 4 left!

0

10:4

Toro 137-9137

SCREW-PPH

$1.49

$

In Stock, Qty 5

0

11

Toro 108-3753

CHUTE-DISCHARGE, SIDE

$25.99

$

In Stock, only 1 left!

0

12

Toro 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, Qty 6

0

13

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

14

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, only 1 left!

0

15

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, only 1 left!

0

17

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, only 3 left!

0

18

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, only 2 left!

0

19

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0
