21386x6C - Murray Ultra 21" Walk-Behind Mower (2000) Engine Mount Parts Diagram

Ultra 21" Walk-Behind Mower

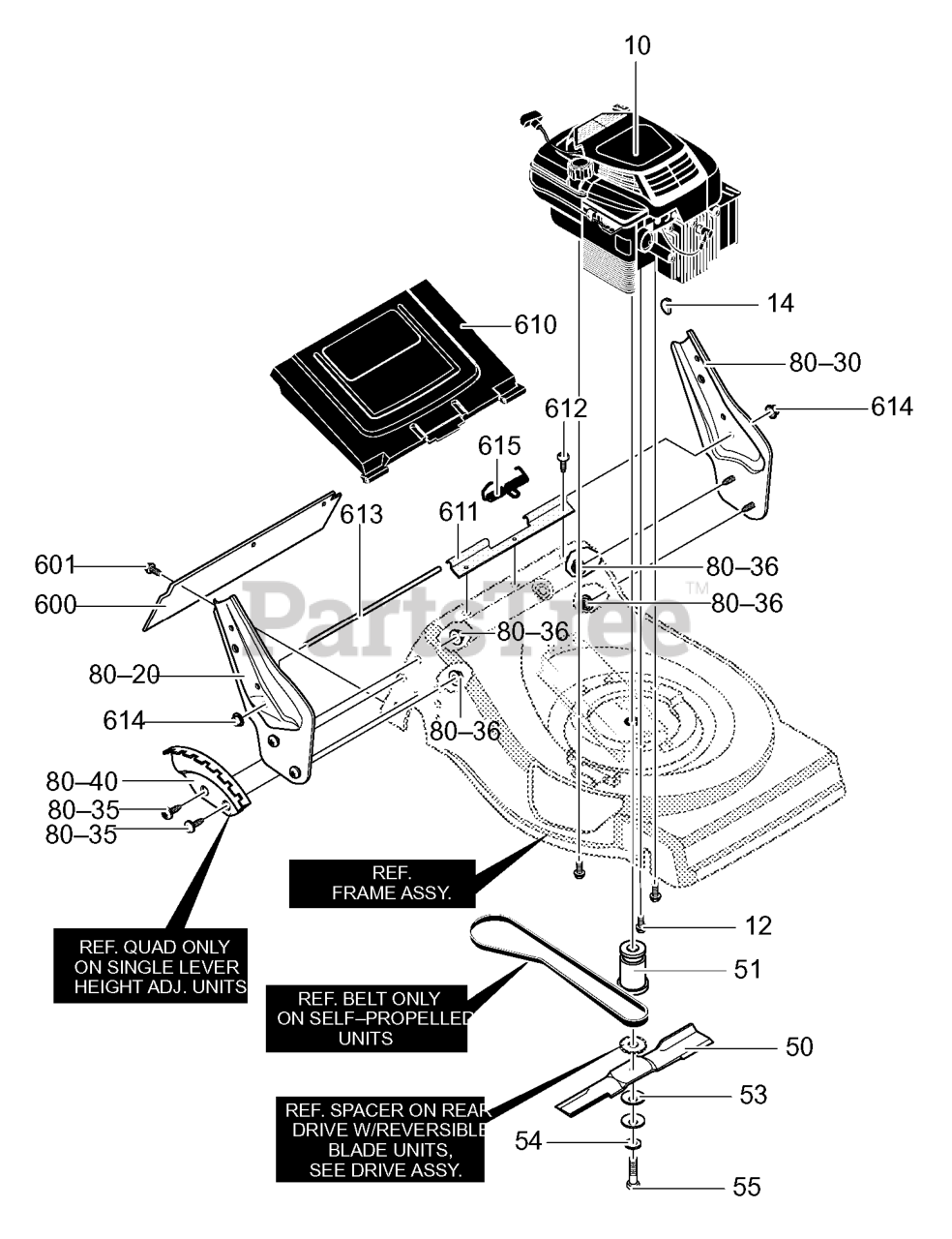

Engine Mount Parts Diagram

  • Title

10

ENGINE *

Note: (See Engine Manual)

$

$

Not available

12

Murray 47792MA

SCREW, 3 /8-16X1.00

$3.99

$

Usually ships in 2-12 days

0

14

NOT USED ON THIS UNIT

$

$

Not available

50

Murray 71584

BLADE, 21" MULCH

$

$

Currently unavailable

51

Murray 671056

ADAPTER, BLADE 21"

$

$

Currently unavailable

53

Murray 710210

WASHER, BEVELLE

$40.99

$

Usually ships in 2-12 days

0

54

Murray 710207

WASHER, FLAT .406 x .812 x .06

$1.49

$

Usually ships in 2-12 days

0

55

Murray 710163

SCREW, 3/8-24 x 1.50
(Superseded to 710074)

$3.99

$

Usually ships in 2-12 days

0

80-20

Murray 672766

BRACKET, HANDLE RH

$

$

Currently unavailable

80-30

Murray 672767

BRACKET, HANDLE LH

$

$

Currently unavailable

80-35

Murray 710277

SCREW, 5/16-18 x 0.63

$18.99

$

Usually ships in 2-12 days

0

80-36

Murray 710204

NUT, 5/16-18, HEXWDFLK WHIZ

$5.49

$

Usually ships in 2-12 days

0

80-40

Murray 672276

QUADRANT, HEIGHT ADJ

$

$

Currently unavailable

600

Murray 043640

DEFLECTOR, REAR

$

$

Not available

601

Murray 710271

SCREW, 10-16X.50

$

$

Currently unavailable

610

Murray 071409

DOOR, REAR 21

$66.99

$

Usually ships in 2-12 days

0

611

Murray 071410MA

SPACER,RR DOOR

$7.99

$

Usually ships in 2-12 days

0

612

Murray 710273

SCREW, 10-16X.50

$

$

Currently unavailable

613

Murray 672282 Z

ROD, PIVOT RR DOOR.25X18.5

$

$

Currently unavailable

614

Murray 710285

CAP, PUSH ON
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

615

Murray 340823

SPRING, TORSION

$

$

Currently unavailable

--

Murray F-000474M

OWNER'S MANUAL

$

$

Currently unavailable
