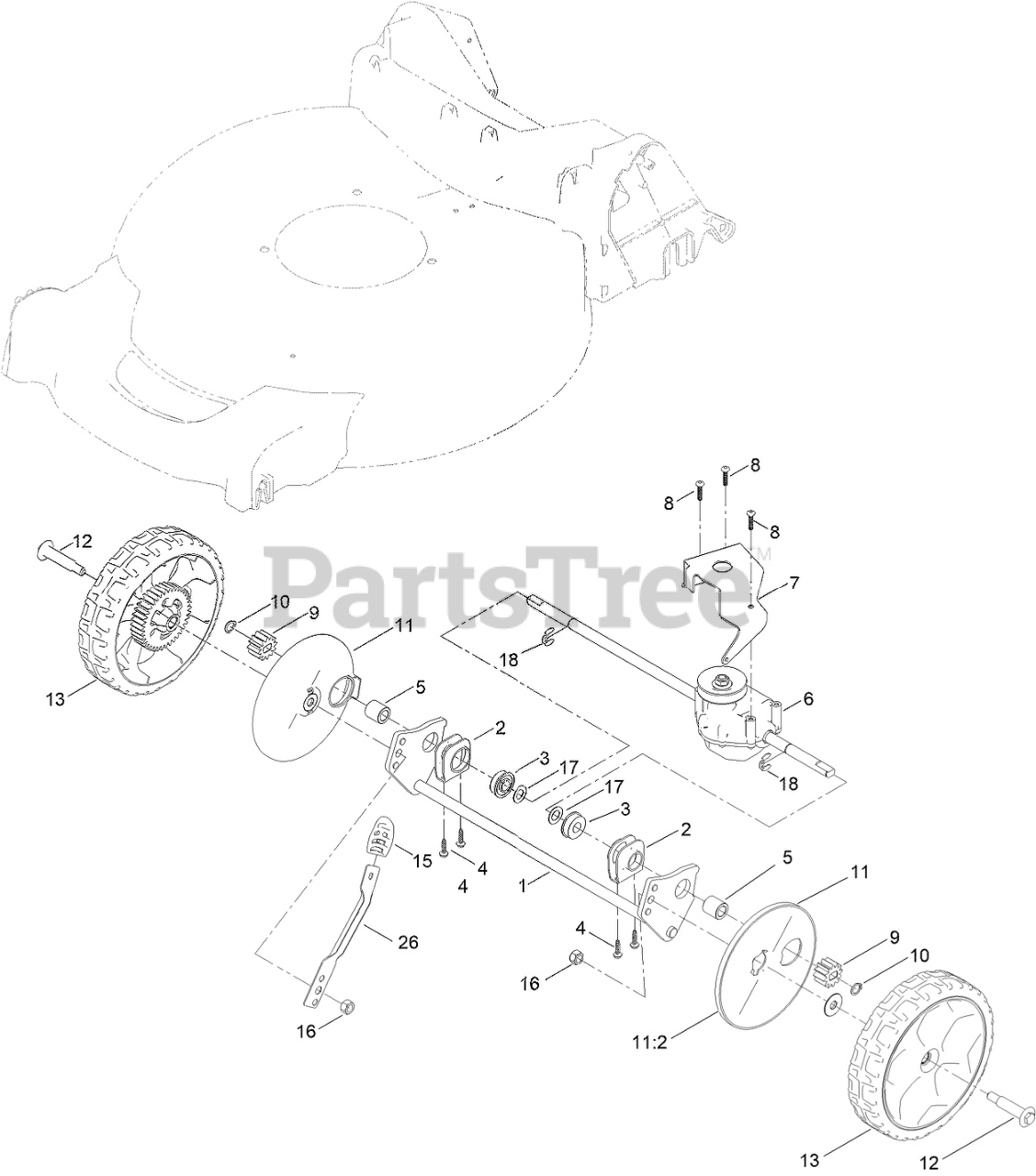

21357 - Toro 21" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 412246472 - 999999999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

21" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 127-0708-03

AXLE-REAR

$34.99

$

In Stock, only 1 left!

0

2

Toro 138-3234

RETAINER-BEARING

$3.49

$

In Stock, Qty 7

0

3

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 18

0

4

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

5

Toro 127-6896

BUSHING-SLEEVE

$3.49

$

In Stock, only 4 left!

0

6

Toro 131-0881

TRANSMISSION

$108.99

$

In Stock, only 1 left!

0

7

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

8

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

9

Toro 115-4668

GEAR-PINION

$15.99

$

In Stock, only 4 left!

0

10

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

11

Toro 127-6840

WHEEL COVER ASM

$5.99

$

In Stock, Qty 11

0

11:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

12

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

13

Toro 127-0692

8 INCH WHEEL GEAR ASM

$43.99

$

In Stock, only 3 left!

0

15

Toro 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, Qty 6

0

16

Toro 603773

LOCKNUT

$2.99

$

In Stock, Qty 8

0

17

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

0

18

Toro 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 6

0

26

Toro 145-3857

ARM-SPRING

$6.99

$

Usually ships in 3-6 days

0
