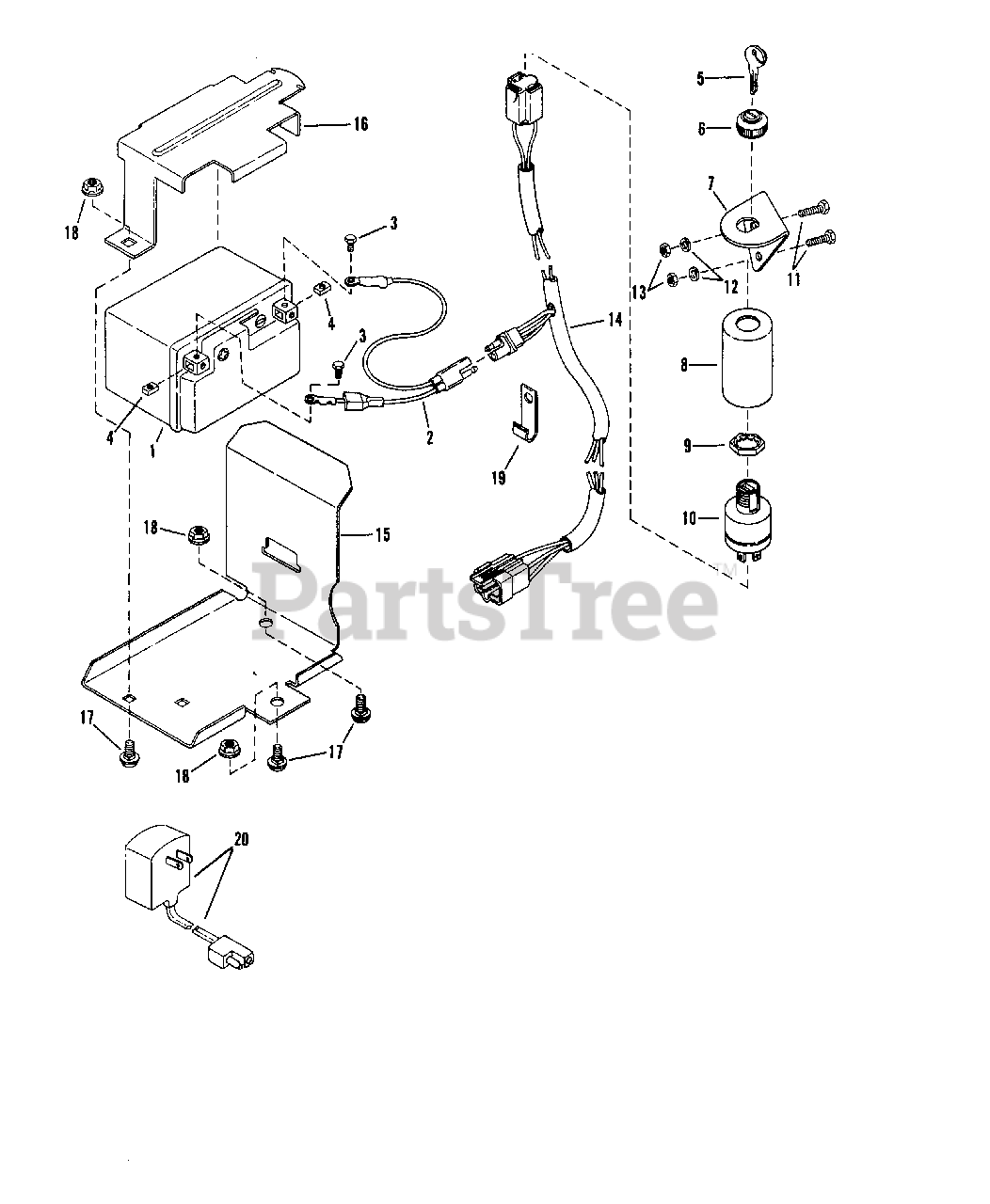

21351S - Snapper 21" Walk-Behind Mower, 3.5hp Electric Start ('85 Models & Later) Parts Diagram

21" Walk-Behind Mower, 3.5hp

Electric Start ('85 Models & Later) Parts Diagram

  • Title

1

Snapper 7067012

KIT, Battery 12 Volt
(Superseded to 7067012YP)

Note: (Includes items 1,2,3,& 4)(Replaces 6-7011)

$93.99

$

Usually ships in 2-12 days

0

1

Snapper 7019763

USE 7067012
(Superseded to 7067012YP)

$93.99

$

Usually ships in 2-12 days

0

2

Snapper 7015488

HARNESS, Battery (For '88 & earlier, use with item 21)
(Superseded to 7015488YP)

$14.99

$

In Stock, only 1 left!

0

3

Snapper 7043977

SCREW, #10-24 x 1/2" Hex Head Cap
(Superseded to 7043977YP)

$

$

Not available

4

Snapper 7090932

NUT, #10-24 Square
(Superseded to 7090932YP)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7011167

KEY, (Set of 2)
(Superseded to 7011167YP)

$5.99

$

In Stock, only 1 left!

0

6

Snapper 7015207

ASSEMBLY, Seal & Face Nut
(Superseded to 7015207YP)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 7038485

BRACKET, Ignition Switch

Note: Was 38179

$

$

Not available

8

Snapper 7012551

COVER, Switch
(Superseded to 7012551YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7015206

NUT, 3/4-20 Lock

$

$

Not available

10

Snapper 7011139

SWITCH, Ignition
(Superseded to 7011139YP)

Note: Was 15205

$42.99

$

Usually ships in 2-12 days

0

11

Snapper 7090552

SCREW, 1/4-28 x 1 3/8 Hex Head Cap
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

13

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7018833

HARNESS, Wiring (For '88 & earlier, use with item 21)

$

$

Currently unavailable

15

Snapper 7036002

BRACKET, Battery (Self-Propelled Models)('88 & earlier)
(Superseded to 7036002YP)

$39.99

$

Usually ships in 2-12 days

0

15

Snapper 7036002

BRACKET, Battery (Push Models)
(Superseded to 7036002YP)

Note: Was 36131

$39.99

$

Usually ships in 2-12 days

0

15

Snapper 7032906

BRACKET, Battery (Self-Propelled Models) ('89 Models & Later)
(Superseded to 7032906AYP)

Note: Was 36250

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7036129

COVER, Battery (Self-Propelled Models)
(Superseded to 7036129YP)

$28.99

$

Usually ships in 2-12 days

0

16

Snapper 7036132

COVER, Battery (Push Models)
(Superseded to 7036132AYP)

$28.99

$

Usually ships in 2-12 days

0

17

Snapper 7090731

BOLT, 5/16-18 x 112" Carriage
(Superseded to 703798)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7012652

CLIP, Wiring
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7061188

CHARGER, Battery (60 Hertz) ('86 & Earlier Models)
(Superseded to 770625)

Note: Was 11789 or 60627 (Shown)

$59.99

$

In Stock, only 2 left!

0

20

Snapper 7061188

CHARGER, Battery (60 Hertz) ('88 Models & Later)
(Superseded to 770625)

Note: Was 18834 or 60677 (Not shown) note:18834 Rpl By 206838

$59.99

$

In Stock, only 2 left!

0

21

Snapper 7015921

ADAPTER, Wiring to Battery Harness
(Superseded to 7015921YP)

Note: (Adapter required between #2 & #14 for '88 & earlier); (Not shown)

$5.99

$

Usually ships in 2-12 days

0
