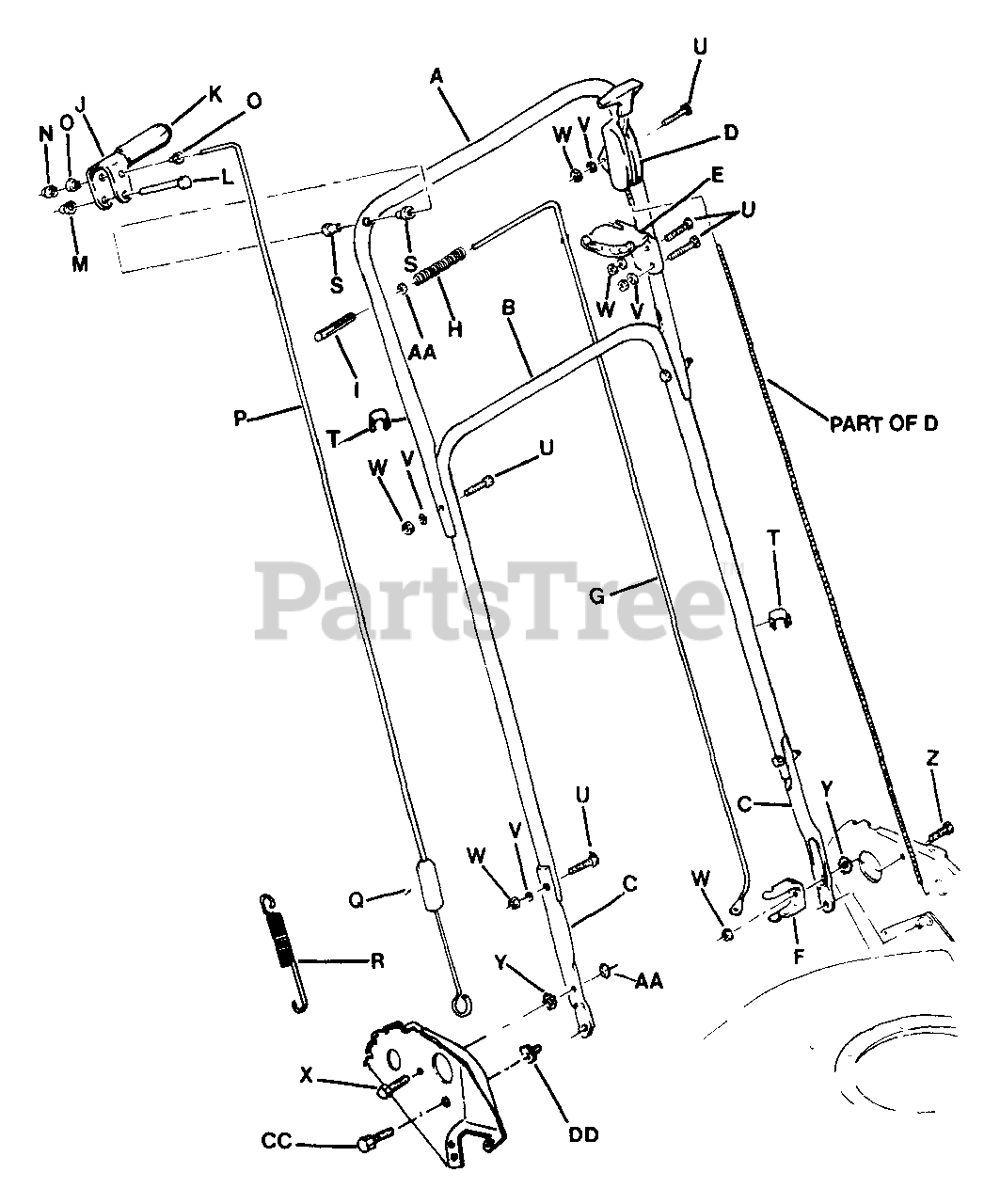

21350PS - Snapper 21" Walk-Behind Mower, 3.5hp Handles, Controls Self Propelled (Except Commercial) Parts Diagram

21" Walk-Behind Mower, 3.5hp

Handles, Controls Self Propelled (Except Commercial) Parts Diagram

  • Title

A

Snapper 7033444

HANDLE, UPPER

Note: Was 39600

$

$

Not available

B

Snapper 7036037

HANDLE, MIDDLE

Note: Was 37331

$

$

Not available

C

Snapper 7038209

HANDLE, LOWER

Note: Was 37333

$

$

Not available

D

Snapper 7018186

CONTROL, THROTTLE, 46.5" - B&S
(Superseded to 7018186YP)

$69.99

$

Usually ships in 2-12 days

0

D

Snapper 7018187

CONTROL, THROTTLE, 42.5" - TEC
(Superseded to 7018187YP)

$23.99

$

Usually ships in 2-12 days

0

E

Snapper 7038478

SECTOR, SPEED CONTROL
(Superseded to 7038478YP)

$82.99

$

Usually ships in 2-12 days

0

F

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

Note: Was 31755

$26.99

$

In Stock, only 1 left!

0

G

Snapper 7023795

LEVER, SPEED CONTROL 36"

Note: Was 12110

$

$

Not available

H

Snapper 7012093

SPRING, SPEED CONTROL LEVER
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

I

Snapper 7023801

GRIP, SPEED CONTROL LEVER
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

J

Snapper 7032826

HANDLE, Clutch
(Superseded to 7074473BMYP)

Note: Was 31881

$16.99

$

In Stock, Qty 20+

0

K

Snapper 7014307

GRIP, CLUTCH HANDLE
(Superseded to 7014307YP)

Note: Was 11982

$4.49

$

In Stock, Qty 20+

0

L

Snapper 7023792

PIN, CLUTCH HANDLE
(Superseded to 704031)

Note: Was 11886

$3.99

$

In Stock, Qty 20+

0

M

Snapper 7091020

NUT, PUSH 1/4
(Superseded to 7091020YP)

Note: Was 90489

$4.49

$

In Stock, Qty 20+

0

N

Snapper 7012134

NUT, PUSH

$3.49

$

Usually ships in 2-12 days

0

O

Snapper 7012135

BUSHING, PULL ROD (NYLON)

$4.49

$

In Stock, only 1 left!

0

P

Snapper 7023134

ROD, CLUTCH PULL
(Superseded to 7023134YP)

Note: Was 12120

$18.99

$

In Stock, Qty 14

0

Q

Snapper 7012121

COVER, VINYL
(Superseded to 7012121YP)

$

$

Not available

R

Snapper 7012122

SPRING, CLUTCH
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

S

Snapper 7014343

BUSHING, CLUTCH HANDLE PIN
(Superseded to 7014343YP)

Note: Was 12070

$3.99

$

In Stock, Qty 20+

0

T

Snapper 7023813

CLIP
(Superseded to 7023813SM)

Note: Was 10098

$3.49

$

In Stock, Qty 20+

0

U

Snapper 7090552

SCREW, HEX HEAD CAP 1/4-28 X 1 3/8
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

V

Snapper 7090053

WASHER, INTERNAL TOOTH LOCK 1/4
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

W

Snapper 7090095

NUT, HEX 1/4-28
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

X

Snapper 7090240

SCREW, HEX HEAD CAP 5/16-24 X 1 1/4
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

Y

Snapper 7090189

WASHER, INT/EXT TOOTH LOCK 5/16
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

Z

Snapper 7090233

SCREW, HEX HEAD CAP 5/16-24 x 3/4
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

AA

Snapper 7090188

WASHER, FLAT SAE 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

BB

Snapper 7090111

SCREW, HEX HEAD CAP 1/4-28 x 1 3/4 (Not shown, used with some throttle controls)

$2.99

$

In Stock, only 3 left!

0

CC

Snapper 7090204

SCREW, HEX HEAD CAP 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

DD

Snapper 7090895

NUT, TEE 5/16-18
(Superseded to 7090895YP)

Note: Was 90733

$3.49

$

Usually ships in 2-12 days

0
