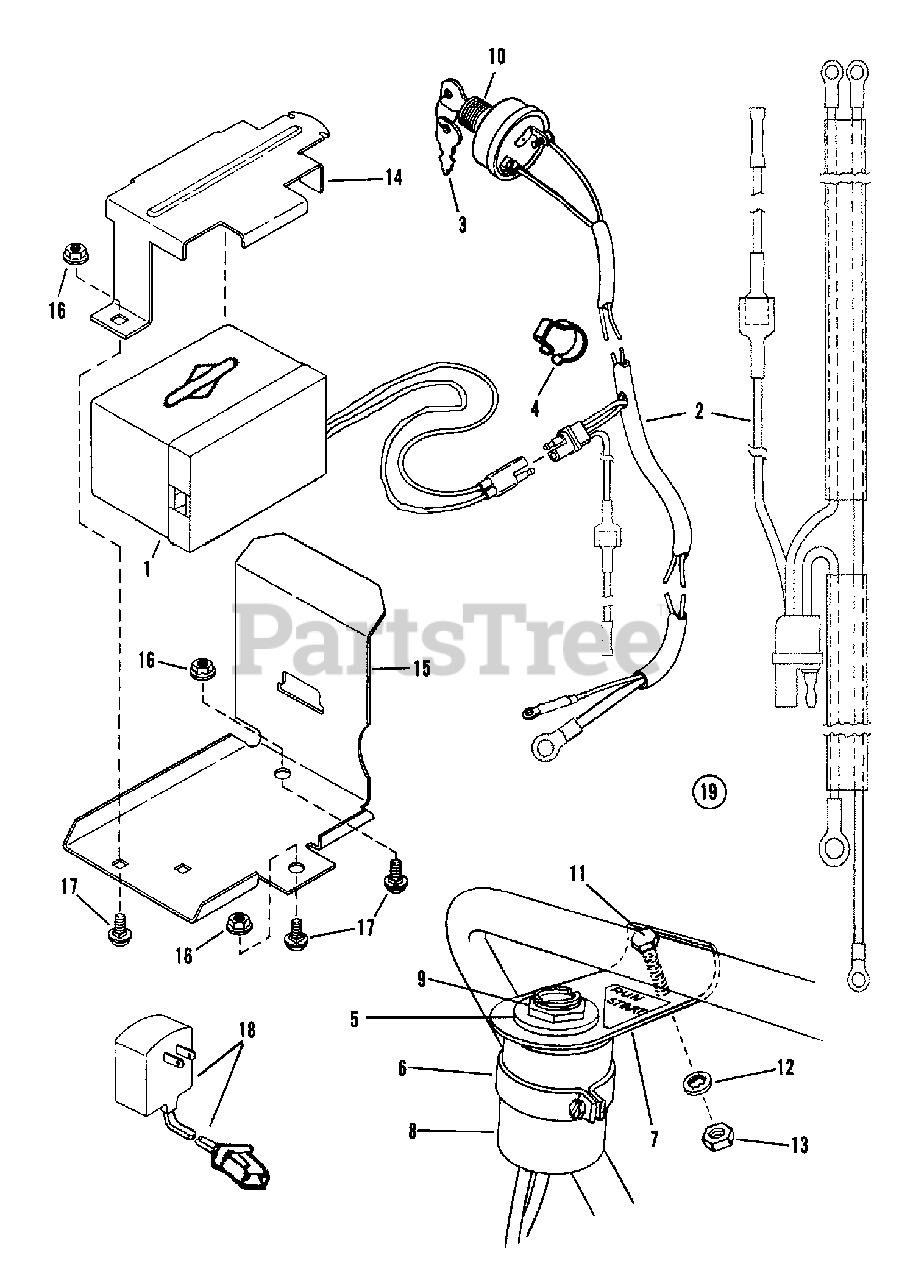

21350PS - Snapper 21" Walk-Behind Mower, 3.5hp Electric Start (1982, 6V B&S 21350PS) Parts Diagram

21" Walk-Behind Mower, 3.5hp

Electric Start (1982, 6V B&S 21350PS) Parts Diagram

  • Title

1

Snapper 7018539

NLA - BATTERY (6 Volt, 9 AH) (B&S #493359)

$

$

Currently unavailable

2

Snapper 7015488

HARNESS, Battery
(Superseded to 7015488YP)

$14.99

$

In Stock, only 1 left!

0

3

Snapper 7011138

KEY, (Set of 2)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

4

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091546

ITLW, 5/8 YZ
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 7011037

CLAMP
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

7

Snapper 7057303

BRKT & DECAL, Ignition Switch
(Superseded to 7057303YP)

Note: Was 31141

$49.99

$

Usually ships in 2-12 days

0

8

Snapper 7012551

COVER, Switch
(Superseded to 7012551YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7015438

HN, 5/8-32 ZP
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7011155

SWITCH, Ignition (Use B & S terminals only)
(Superseded to 7011155YP)

Note: Was 14372

$38.99

$

Usually ships in 2-12 days

0

11

Snapper 7090552

SCREW, 1/4-28 x 1 3/8 Hex Head Cap
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

13

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7036129

COVER, Battery
(Superseded to 7036129YP)

$28.99

$

Usually ships in 2-12 days

0

15

Snapper 7032906

BRACKET, Battery
(Superseded to 7032906AYP)

Note: Was 36002

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7090731

BOLT, 5/16-18 x 1/2" Carriage
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

18

Snapper 7018536

NLA - CHARGER, Battery (6 Volt B&S #395569)

$

$

Currently unavailable

19

Snapper 7060549

NLA - KIT, Conversion (For 6 Volt B&S System 4 engine)

$

$

Currently unavailable
