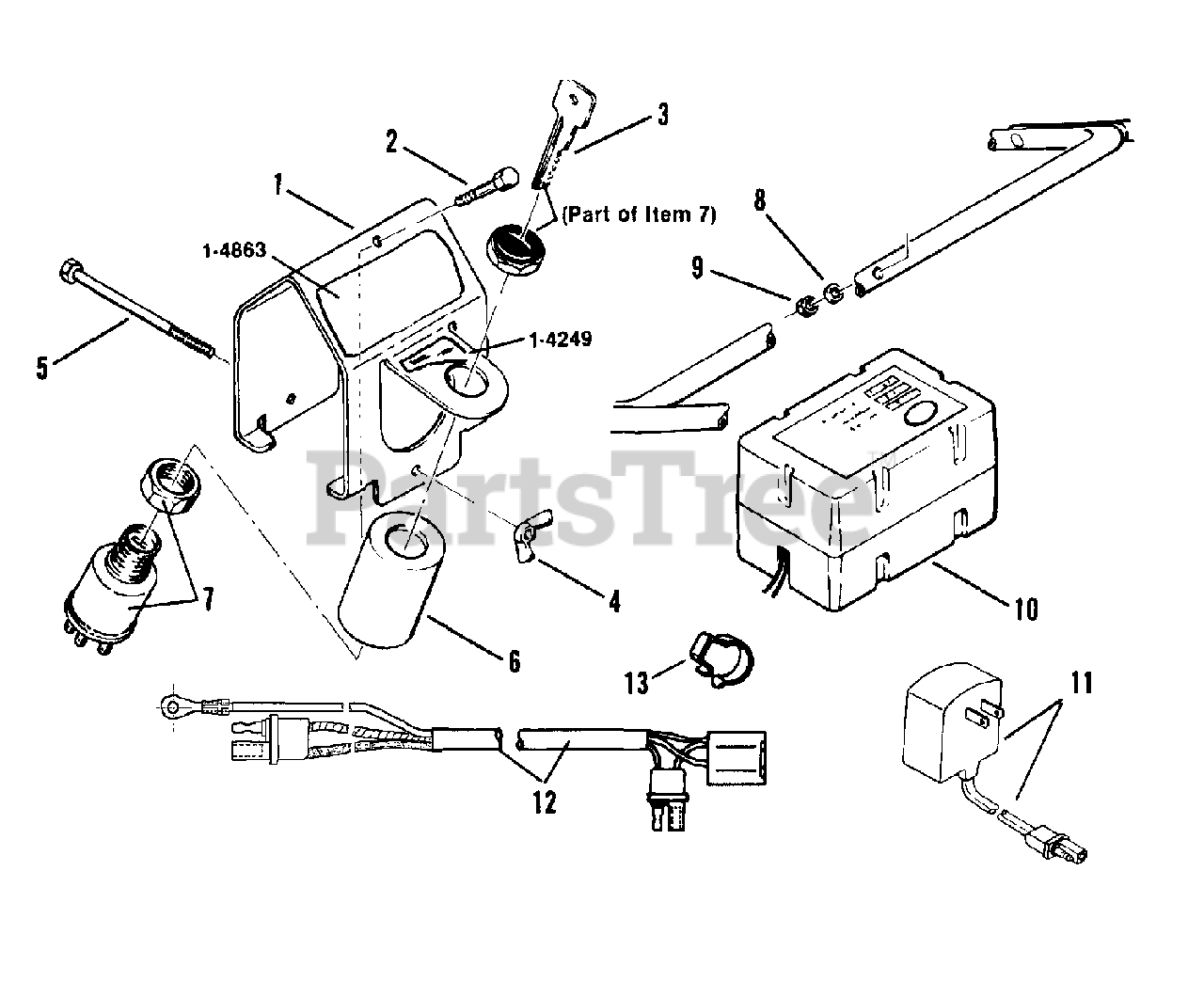

21350PS - Snapper 21" Walk-Behind Mower, 3.5hp Electric Start (1979-1981 Models) Parts Diagram

21" Walk-Behind Mower, 3.5hp

Electric Start (1979-1981 Models) Parts Diagram

  • Title

1

Snapper 7057303

BRACKET, ASSEMBLY (7037749 & 7014249)
(Superseded to 7057303YP)

Note: Was 50862

$49.99

$

Usually ships in 2-12 days

0

2

Snapper 7090529

CAPSCREW, 1/4F X 1-1/4
(Superseded to 7090529YP)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7011167

KEY, (Set of 2)
(Superseded to 7011167YP)

Note: Part of switch assembly

$5.99

$

In Stock, only 1 left!

0

4

Snapper 7090098

WING NUT 1/4F

$

$

Currently unavailable

5

Snapper 7090487

CAPSCREW, 1/4F X 3-1/4

$

$

Currently unavailable

6

Snapper 7012551

COVER, SWITCH
(Superseded to 7012551YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7011139

SWITCH, IGNITION
(Superseded to 7011139YP)

$42.99

$

Usually ships in 2-12 days

0

8

Snapper 7090053

LOCKWASHER, 1/4 INTERNAL TOOTH
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

9

Snapper 7090095

NUT, 1/4F HEX
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7067012

BATTERY, 12 VOLT
(Superseded to 7067012YP)

Note: Was 18215

$93.99

$

Usually ships in 2-12 days

0

11

Snapper 7061188

CHARGER, BATTERY (60 HERTZ)
(Superseded to 770625)

Note: Was 11789 or 60627

$59.99

$

In Stock, only 2 left!

0

12

Snapper 7018095

HARNESS, WIRING 48.5" (B&S)
(Superseded to 7018095YP)

$43.99

$

Usually ships in 2-12 days

0

13

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0
