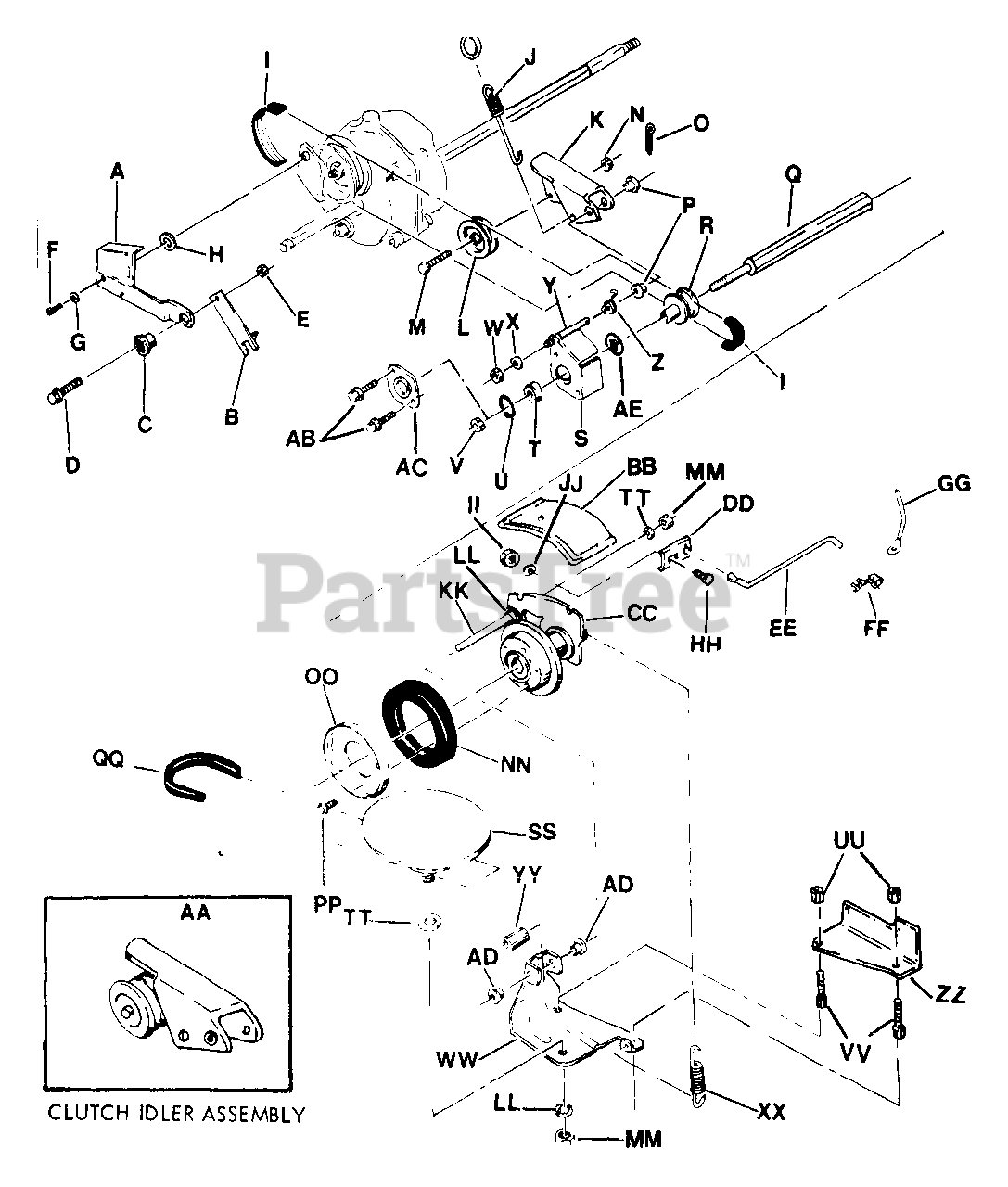

21350PS - Snapper 21" Walk-Behind Mower, 3.5hp Drive System Parts Diagram

21" Walk-Behind Mower, 3.5hp

Drive System Parts Diagram

  • Title

A

Snapper 7034179

LINK, Differential
(Superseded to 7034179BMYP)

Note: Was 31880

$20.99

$

Usually ships in 2-12 days

0

B

Snapper 7032408

GUIDE, LOWER BELT
(Superseded to 7032408YP)

Note: Was 31882

$26.99

$

Usually ships in 2-12 days

0

C

Snapper 7012114

BUSHING, DIFFERENTIAL LINK
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

D

Snapper 7090238

CAPSCREW, HEX HEAD 5/16-24 x 1 (21500PC)
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

D

Snapper 7090240

CAP SCREW, HEX HEAD 5/16-24 x 1 1/4 (21350P & 21400P)
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

E

Snapper 7090222

NUT, HEX LOCK 5/16-24
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

F

Snapper 7090534

CAPSCREW, HEX HEAD 5/16-18 x 3/8
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

G

Snapper 7090391

WASHER, INTERNAL TOOTH LOCK 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

H

Snapper 7011079

WASHER, SPRING
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

I

Snapper 7012354

BELT, POLY V
(Superseded to 7012354YP)

$13.99

$

In Stock, Qty 5

0

J

Snapper 7012122

SPRING, CLUTCH
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

K

Snapper 7032832

ARM, CLUTCH IDLER
(Superseded to 7032832AYP)

Note: Was 31877

$22.99

$

In Stock, only 1 left!

0

L

Snapper 7012124

PULLEY, IDLER
(Superseded to 7012124YP)

$18.99

$

In Stock, Qty 7

0

M

Snapper 7090552

CAPSCREW, HEX HEAD 1/4-28 x 1 3/8
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

N

Snapper 7090303

NUT, HEX LOCK 1/4-24
(Superseded to 703972)

$3.49

$

In Stock, Qty 6

0

O

Snapper 7091597

PIN, COTTER 3/32 x 3/4
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

P

Snapper 7012117

BUSHING, 3/8 I.D. NYLON
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 11

0

Q

Snapper 7072284

SHAFT, Hex
(Superseded to 7072284YP)

Note: Was 21745

$

$

Not available

R

Snapper 7024521

PULLEY, POLY V-BELT
(Superseded to 7019383YP)

Note: Was 12140

$54.99

$

In Stock, Qty 12

0

S

Snapper 7031873

HOLDER, BEARING (HALF)
(Superseded to 7031873YP)

$

$

Not available

T

Snapper 7028014

BEARING, HEX SHAFT BALL
(Superseded to 7028014YP)

Note: Was 12304

$17.99

$

In Stock, Qty 20+

0

U

Snapper 7011025

O-RING
(Superseded to 704008)

$3.99

$

In Stock, Qty 20+

0

V

Snapper 7090289

NUT, LOCK 3/8-24
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

W

Snapper 7091630

NUT, HEX 3/8-24
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

X

Snapper 7090390

WASHER, INTERNAL TOOTH LOCK 3/8
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

Y

Snapper 7012111

STUD, IDLER
(Superseded to 703836)

$8.49

$

In Stock, only 1 left!

0

Z

Snapper 7012126

SPRING, IDLER TORSION
(Superseded to 7012126YP)

$4.49

$

In Stock, only 1 left!

0

AA

Snapper 7051921

IDLER, CLUTCH ASSEMBLY
(Superseded to 7051921YP)

Note: Was 50706 (INCLUDES K,L,M, N, P)

$108.99

$

In Stock, only 1 left!

0

BB

Snapper 7012118

COVER, DRIVEN RING
(Superseded to 7012118YP)

$3.99

$

Usually ships in 2-12 days

0

CC

Snapper 7501000

ASSEMBLY, Driven Disc
(Superseded to 7600109YP)

Note: Was 7053225 or 57262 (Includes NN, OO & PP)

$143.99

$

Usually ships in 2-12 days

0

DD

Snapper 7032831

CONNECTOR, TRANSFER ROD
(Superseded to 7032831YP)

Note: Was 31874

$

$

Not available

EE

Snapper 7012255

ROD, TRANSFER
(Superseded to 7023790YP)

$9.49

$

In Stock, Qty 11

0

FF

Snapper 7010937

CLIP, TRANSFER ROD RIGHT ARC 1/4"
(Superseded to 7010937YP)

$7.49

$

In Stock, only 4 left!

0

GG

LEVER, SPEED CONTROL

Note: (SEE "Handles, Controls" Illustration & Parts List)

$

$

Not available

HH

Snapper 7090316

BOLT, CARRIAGE 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

II

Snapper 7091511

NUT, HEX 5/16-18
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

JJ

Snapper 7090187

WASHER, LOCK 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

KK

Snapper 7012125

GUIDE, THRUST PLATE
(Superseded to 703837)

$8.49

$

In Stock, only 1 left!

0

LL

Snapper 7090390

WASHER, INTERNAL TOOTH LOCK 3/8
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

MM

Snapper 7091630

NUT, HEX 3/8-24
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

NN

Snapper 7023364

RING, Driven (Rubber Disc)
(Superseded to 704059)

Note: Was 10927

$14.99

$

In Stock, Qty 20+

0

OO

Snapper 7031013

PLATE, DRIVEN RING
(Superseded to 7031013YP)

$5.99

$

In Stock, Qty 13

0

PP

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 9

0

QQ

Snapper 7012508

BELT, ENGINE 21350P & 21400P
(Superseded to 7012508YP)

$16.99

$

In Stock, Qty 20+

0

QQ

Snapper 7012353

BELT, ENGINE 21500PC
(Superseded to 7012353YP)

$15.99

$

Usually ships in 2-12 days

0

SS

Snapper 7061275

DISC, DRIVE ASSEMBLY
(Superseded to 7073528YP)

Note: Was 51302 or 12615

$38.99

$

In Stock, Qty 20+

0

TT

Snapper 7090122

WASHER, FLAT 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

UU

Snapper 7091601

NUT, 5/16C FLANGE
(Superseded to 703409)

Note: Was 12625

$5.49

$

In Stock, Qty 20+

0

VV

Snapper 7090731

BOLT, CARRIAGE 5/16C x 1/2 (SHORT NECK)
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

WW

Snapper 7033774

BRACKET, Deck
(Superseded to 7033774YP)

Note: Was 31919 (Now 17696 + 33774)

$

$

Not available

XX

Snapper 7029025

SPRING, WHEEL DRIVE
(Superseded to 7029025YP)

Note: Was 13694

$5.99

$

In Stock, Qty 7

0

YY

Snapper 7021758

SPACER, DECK BRACKET
(Superseded to 703941)

$27.99

$

In Stock, only 3 left!

0

ZZ

Snapper 7037732

BRACKET, STRAP 21500PC
(Superseded to 7037732YP)

$40.99

$

Usually ships in 2-12 days

0

AB

Snapper 7091122

SCREW, SELF-TAPPING 1/4-20 x 3/8
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 5

0

AC

Snapper 7031809

HOLDER, BEARING (OUTER HALF)
(Superseded to 7031809YP)

$4.49

$

In Stock, Qty 6

0

AD

Snapper 7012306

BUSHING, FLANGE
(Superseded to 703973)

$5.99

$

In Stock, Qty 9

0

AE

Snapper 7012316

WASHER, SPACER
(Superseded to 703946)

$3.99

$

In Stock, Qty 20+

0
