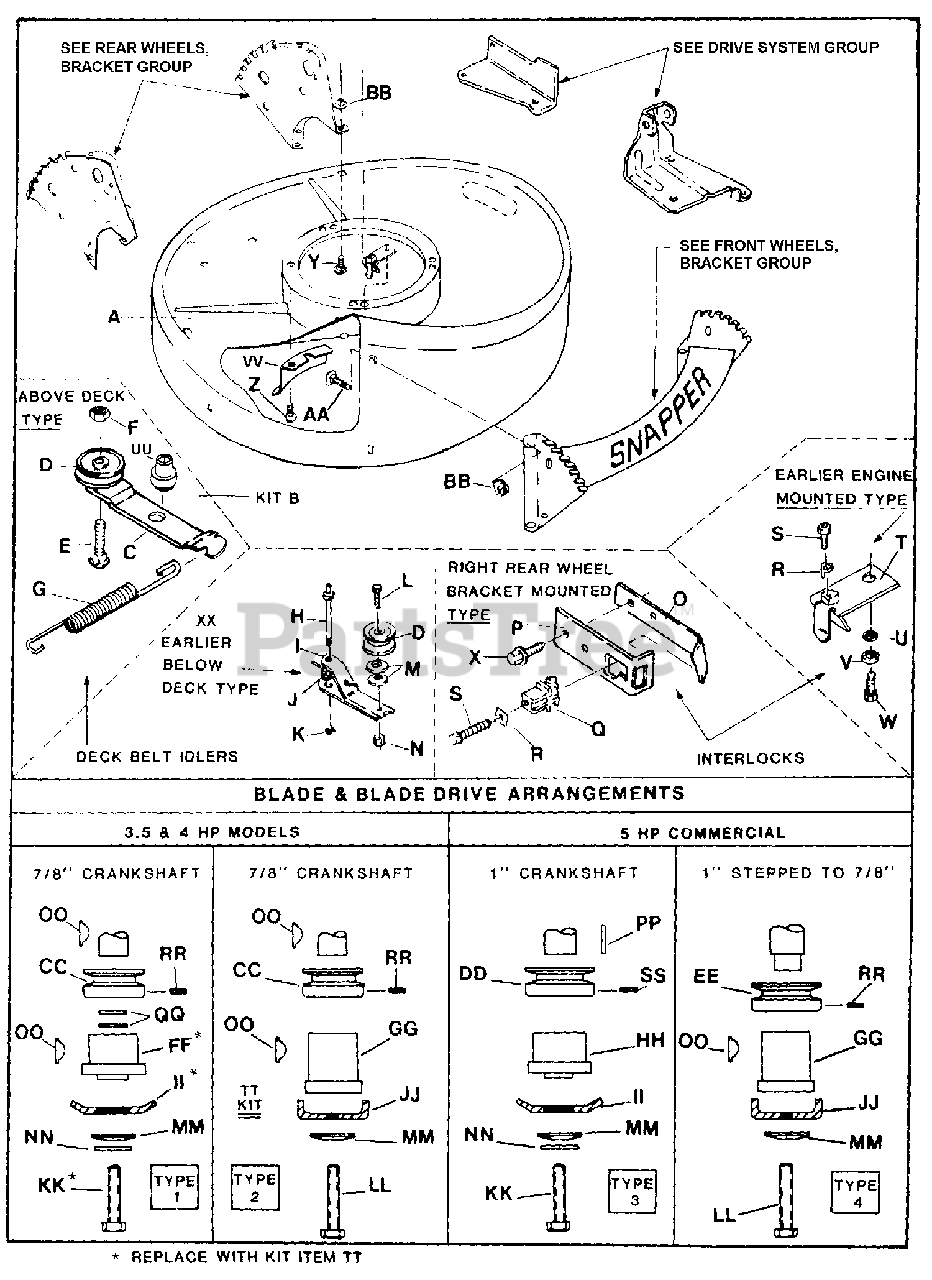

21350PS - Snapper 21" Walk-Behind Mower, 3.5hp Deck, Idler, Blade, Interlock Parts Diagram

21" Walk-Behind Mower, 3.5hp

Deck, Idler, Blade, Interlock Parts Diagram

  • Title

A

Snapper 7057663

DECK, ALL 21"
(Superseded to 7500549DYP)

Note: Was 51227 (INCLUDES DECALS & FOOT PAD - SEE "Decals" Illustration & Parts List)

$

$

Not available

B

Snapper 7060474

KIT, ABOVE DECK IDLER

Note: (REPLACES BELOW DECK TYPES)

$

$

Currently unavailable

C

Snapper 7032116

ARM, ABOVE DECK IDLER
(Superseded to 7032116YP)

$13.99

$

In Stock, Qty 9

0

D

Snapper 7012124

PULLEY, IDLER
(Superseded to 7012124YP)

$18.99

$

In Stock, Qty 9

0

E

Snapper 7090078

BOLT, 1/4C x 1-1/4 CARRIAGE
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

F

Snapper 7090372

NUT, 1/4C HEX Lock
(Superseded to 703954)

$

$

Not available

G

Snapper 7029025

SPRING, IDLER ARM to WHEEL BRACKET
(Superseded to 7029025YP)

Note: Was 13694

$5.99

$

In Stock, only 3 left!

0

H

Snapper 7012621

STUD, IDLER -- MANUAL START MODELS

$

$

Not available

H

Snapper 7012602

NLA - STUD, IDLER -- ELECTRIC START MODELS

$

$

Currently unavailable

I

Snapper 7032002

ARM, BELOW DECK TYPE IDLER
(Superseded to 7032002YP)

$40.99

$

In Stock, only 1 left!

0

J

Snapper 7012604

SPRING, BELOW DECK IDLER
(Superseded to 7012604YP)

$3.99

$

Usually ships in 2-12 days

0

K

Snapper 7012614

RING, RETAINING

$1.99

$

In Stock, only 1 left!

0

L

Snapper 7027198

SCREW, 1/4-28 x 1-1/2 HEX HEAD CAP
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

M

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

N

Snapper 7090303

LOCKNUT, 1/4-28
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

O

Snapper 7032417

SPRING, WHEEL BRACKET TYPE INTERLOCK
(Superseded to 7032417YP)

Note: Was 32113

$15.99

$

Usually ships in 2-12 days

0

P

Snapper 7032416

BRACKET, WHEEL BRACKET TYPE INTERLOCK
(Superseded to 7032416YP)

Note: Was 32112

$21.99

$

Usually ships in 2-12 days

0

Q

Snapper 7012048

INSULATOR, INTERLOCK
(Superseded to 7012048YP)

$3.49

$

Usually ships in 2-12 days

0

R

Snapper 7090385

LOCKWASHER, #8 INTERNAL TOOTH TAB

$

$

Not available

S

Snapper 7090379

SCREW, #8-18 x 3/4 SHEET METAL SELF TAPPING
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

T

Snapper 7050882

INTERLOCK ASSEMBLY

Note: (INCLUDES ITEM Q)

$

$

Currently unavailable

U

Snapper 7011791

RETAINER, 5/16 BOLT
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

V

Snapper 7011724

WASHER
(Superseded to 703940)

$4.49

$

In Stock, Qty 6

0

W

Snapper 7091609

SCREW, 5/16F x 1-1/2 HEX HEAD CAP
(Superseded to 7091609SM)

$4.99

$

Usually ships in 2-12 days

0

X

Snapper 7091084

SCREW, 1/4 x 3/8 HEX HEAD SELF TAPPING
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

Y

Snapper 7090731

BOLT, 5/16C x 1/2 SHORT NECK CARRIAGE GR. 5
(Superseded to 703798)

$4.49

$

Usually ships in 2-12 days

0

Z

Snapper 7090324

BOLT, ENGINE MOUNTING 3/8C x 1 WASHER HD SELF TAPPING
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

AA

Snapper 7091303

BOLT, 5/16C x 1 SHORT NECK CARRIAGE
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 7

0

BB

Snapper 7091601

NUT, 5/16C HEX FLANGE
(Superseded to 703409)

Note: Was 12625

$5.49

$

In Stock, Qty 20+

0

CC

Snapper 7021707

PULLEY, FOR ALL 3.5 & 4 HP ENGINES 7/8" ID
(Superseded to 7021707YP)

Note: (INCLUDES ITEM RR)

$48.99

$

In Stock, Qty 5

0

DD

Snapper 7021759

PULLEY, FOR EARLY 5 HP COMMERCIALS 1" ID
(Superseded to 7021759YP)

Note: (INCLUDES ITEM SS)

$42.99

$

Usually ships in 2-12 days

0

EE

Snapper 7021822

PULLEY, FOR 5 HP WITH STEPPED SHAFTS 1" ID
(Superseded to 7021822YP)

Note: (INCLUDES ITEM RR)

$34.99

$

Usually ships in 2-12 days

0

FF

Snapper 7012180

HUB, BLADE DRIVE 7/8" (TYPE 1)
(Superseded to 7012180YP)

$6.49

$

Usually ships in 2-12 days

0

GG

Snapper 7012927

HUB, BLADE DRIVE 7/8" (TYPE 2 & 4)
(Superseded to 7012927YP)

$13.99

$

In Stock, only 2 left!

0

HH

Snapper 7012319

HUB, BLADE DRIVE 1" (TYPE 3)

$

$

Not available

II

Snapper 7018193

BLADE, CUTTING (20.75", .876 Center Hole)(TYPES 1 &, 3)

$

$

Not available

JJ

Snapper 7019795

BLADE, CUTTING (TYPES 2 &, 4)
(Superseded to 7019795BZYP)

Note: Was 19645 or 19710

$28.99

$

In Stock, Qty 20+

0

KK

Snapper 7090483

SCREW, 3/8-24 x 1-3/4 GRADE 5 CAP
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

LL

Snapper 7090167

SCREW, 3/8-24 x 2 GRADE 5 CAP
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

MM

Snapper 7012063

WASHER, CONE
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

NN

Snapper 7020984

WASHER, FLAT
(Superseded to 7021746YP)

$3.99

$

In Stock, Qty 11

0

OO

Snapper 7010783

KEY, 5/32 x 5/8 HI-PRO
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

PP

Snapper 7012315

KEY, 1/4 SQUARE x 1.44"
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

QQ

Snapper 7090254

WASHER, 1/2 SPLIT LOCK (USED AS SHIMS)
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

RR

Snapper 7090201

SETSCREW, 5/16C x 5/16
(Superseded to 7090201SM)

$

$

Not available

SS

Snapper 7090471

SETSCREW, 1/4C x 5/16
(Superseded to 7090471YP)

$4.49

$

Usually ships in 2-12 days

0

TT

Snapper 7060449

KIT, BLADE & DRIVE
(Superseded to 7060449YP)

Note: (INCLUDES ITEMS OO, GG, JJ, MM & LL)

$35.99

$

In Stock, only 1 left!

0

UU

Snapper 7013893

BUSHING, Idler Arm/Drive Disc
(Superseded to 7013893YP)

$

$

Not available

VV

Snapper 7031968

COVER, Belt Hole (Push Models)

$

$

Not available

XX

Snapper 7050883

KIT, Idler Arm Assy. (Early Below Deck Type)
(Superseded to 7050883YP)

$87.99

$

Usually ships in 2-12 days

0
