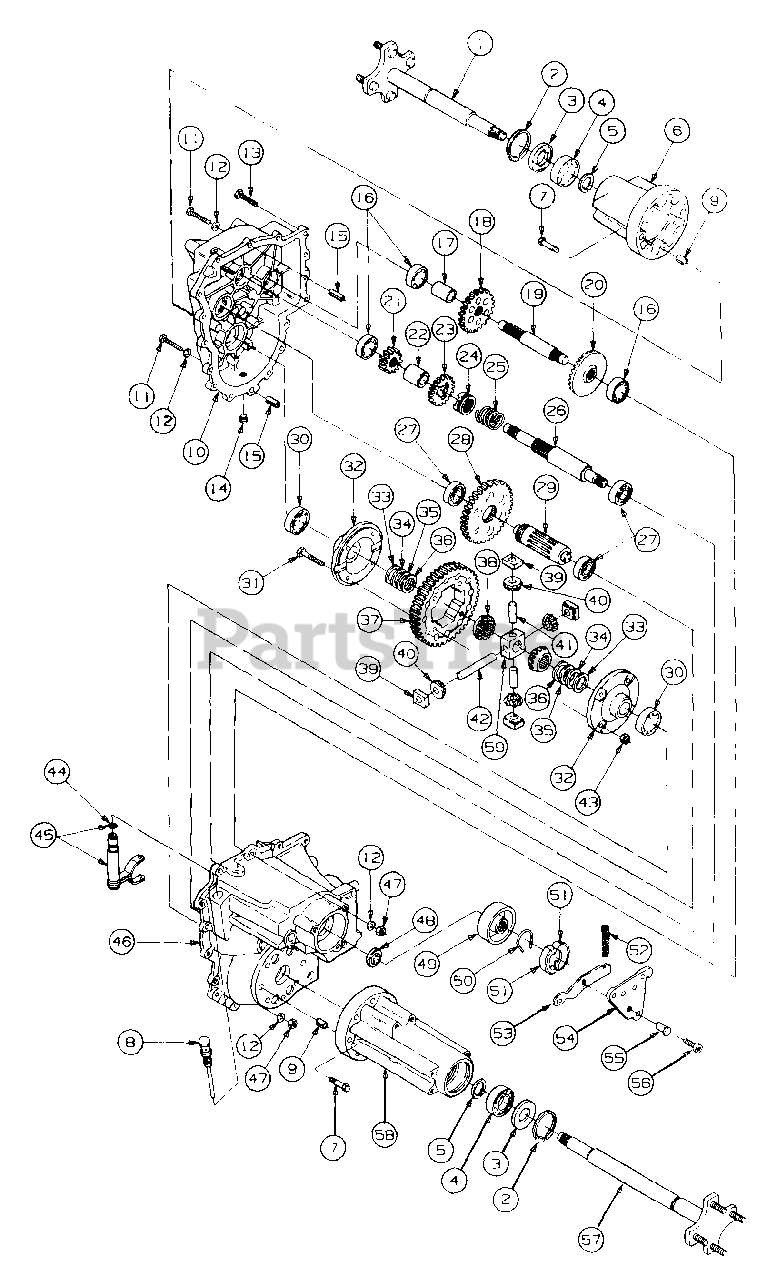

2135 (13B-214F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Hydro Transmission Parts Diagram

Garden Tractor

Hydro Transmission Parts Diagram

  • Title

1

Cub Cadet 611-3008

Axle Assy, LH, 11.9" Lg

$

$

Not available

2

Cub Cadet 716-3015

Ring, Inverted Retainer

$11.99

$

In Stock, only 3 left!

0

3

Cub Cadet 721-3020A

Seal, Oil
(Superseded to 921-3020A)

$12.99

$

In Stock, Qty 20+

0

4

Cub Cadet 741-3033A

Bearing
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

5

Cub Cadet 716-3018

Ring, External Retaining

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 619-3025

Housing, LH Axle

$

$

Not available

7

Cub Cadet 710-1008

Screw, Hex L-Wash Tapp, 3/8-16 x 1.88

$5.49

$

In Stock, Qty 7

0

8

Cub Cadet 727-3085

Dipstick, Oil
(Superseded to 927-3085)

$

$

Not available

9

Cub Cadet 715-3045

Bushing, Dowel
(Superseded to 915-3045)

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 619-3037B

Housing, LH Differential
(Superseded to 719-3170)

$250.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz Tube

$70.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.5

$5.49

$

In Stock, Qty 10

0

12

Cub Cadet 736-0463

Washer, Flat, .25 x .62 x .052

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0788

Screw, Hex Wash Hd Tapp, 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

14

Cub Cadet 737-0177

Plug, 1/2-14 NPTF

Note: (Used with 619-3037 LH Differential Housing)

$

$

Not available

Cub Cadet 710-1346

Screw, Plug, M14 x 1.5 x .827

Note: (Used with 736-0600 Flat Washer for 619-3037B Differential Housings)

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 715-3038

Pin, Slotted Spring, 7/16-1.0

Note: (Used with 619-3037 and 619-3038 LH and RH Differential Housings)

$

$

Not available

Cub Cadet 715-3045

Bushing, Dowel
(Superseded to 915-3045)

Note: (Used with 619-3037B and 619-3038A LH and RH Differential Housings)

$9.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 741-0361

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

17

Cub Cadet 750-3133

Spacer, .757 ID x 1.0 OD x 1.46

$

$

Not available

18

Cub Cadet 717-3388

Gear, 27T Drive

$

$

Not available

19

Cub Cadet 717-3374

Shaft, Drive

$

$

Currently unavailable

20

Cub Cadet 717-3347

Gear, 36T Bevel

$

$

Not available

21

Cub Cadet 717-3391

Gear, 16T Spur

$

$

Not available

22

Cub Cadet 750-3134

Spacer, .885 ID x 1.125 OD x 1.4

$

$

Not available

23

Cub Cadet 717-3387

Gear, 187 Shift

$

$

Not available

24

Cub Cadet 718-3039

Collar, Drive

$

$

Not available

25

Cub Cadet 732-3113

Spring Compression 1.015 ID x 1.6 L

$

$

Not available

26

Cub Cadet 711-3379A

Shaft, Shifter

$

$

Not available

27

Cub Cadet 741-3057

Bearing, Ball, .787 x 1.85 x .551
(Superseded to 941-3057)

$38.99

$

In Stock, Qty 10

0

28

Cub Cadet 717-3392

Gear, 42T Spur

$

$

Not available

29

Cub Cadet 717-3346

Shaft, 9T Output

$

$

Not available

30

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

31

Cub Cadet 710-0151

Screw, Hex Cap, 3/8-24 x 2.0

$7.49

$

In Stock, only 3 left!

0

32

Cub Cadet 619-3013

Cover, Differential

$

$

Not available

33

Cub Cadet 736-0423

Washer, Flat, 1.0 x 1.56 x .010 Thk

$

$

Not available

34

Cub Cadet 736-0431

Washer, Flat, 1.0 x 1.56 x .015 Thk
(Superseded to 936-0431)

$

$

Not available

35

Cub Cadet 736-0424

Washer, Flat, 1.0 x 1.56 x .020 Thk
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

36

Cub Cadet 736-0420

Washer, Flat, 1.0 x 1.56 x .040 Thk
(Superseded to 936-0420)

$

$

Not available

37

Cub Cadet 717-1159

Gear, 60T Bull

$

$

Not available

38

Cub Cadet 717-1119

Gear, 14T Differential Side

$44.99

$

In Stock, only 3 left!

0

39

Cub Cadet 717-1190

Block, Differential Thrust

$

$

Not available

40

Cub Cadet 717-1120

Gear, 10T Differential Pinion

$32.99

$

In Stock, only 4 left!

0

41

Cub Cadet 717-1178

Shaft, Cross

$28.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 717-1173

Shaft, Cross, .50 OD x 3.485 Lg

$38.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 721-3008

O-Ring, 3/8 ID x 1/2 OD

$

$

Not available

45

Cub Cadet 618-3084

Yoke Assy, Shift
(Superseded to 918-3084)

Note: (Includes Ref No. 44)

$

$

Not available

46

Cub Cadet 619-3036A

Housing, RH Differential

Note: (Replaces 619-3036 by also ordering (2) 715-3045 Dowel Bushings.)

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz Tube

$70.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

48

Cub Cadet 721-3029

Seal, Shift Shaft
(Superseded to 921-3029)

$9.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 761-3019

Drum, Brake

$24.99

$

In Stock, only 1 left!

0

50

Cub Cadet 732-3077

Spring, Brake

$2.99

$

In Stock, only 1 left!

0

51

Cub Cadet 761-3020

Shoe, Brake
(Superseded to 961-3020)

$

$

Not available

52

Cub Cadet 732-0152

Spring, Compression

$4.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 703-2191

Arm, Brake

$

$

Not available

54

Cub Cadet 618-3060

Plate, Brake
(Superseded to 918-3060)

$

$

Not available

55

Cub Cadet 761-3028

Actuator, Brake Shoe

$

$

Not available

56

Cub Cadet 710-3262

Screw, Low Hd Cap, 3/8-16 x .75

$

$

Not available

57

Cub Cadet 611-3009

Axle Assy, RH, 15.6 Lg

$

$

Not available

58

Cub Cadet 619-3024

Housing, Axle - RH

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz tube

$70.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 717-1180

Block, Differential Pinion

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0600

Washer

$

$

Not available
