2135 (13A-214F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Cylinder Head, Valve and Breather Parts Diagram

Garden Tractor

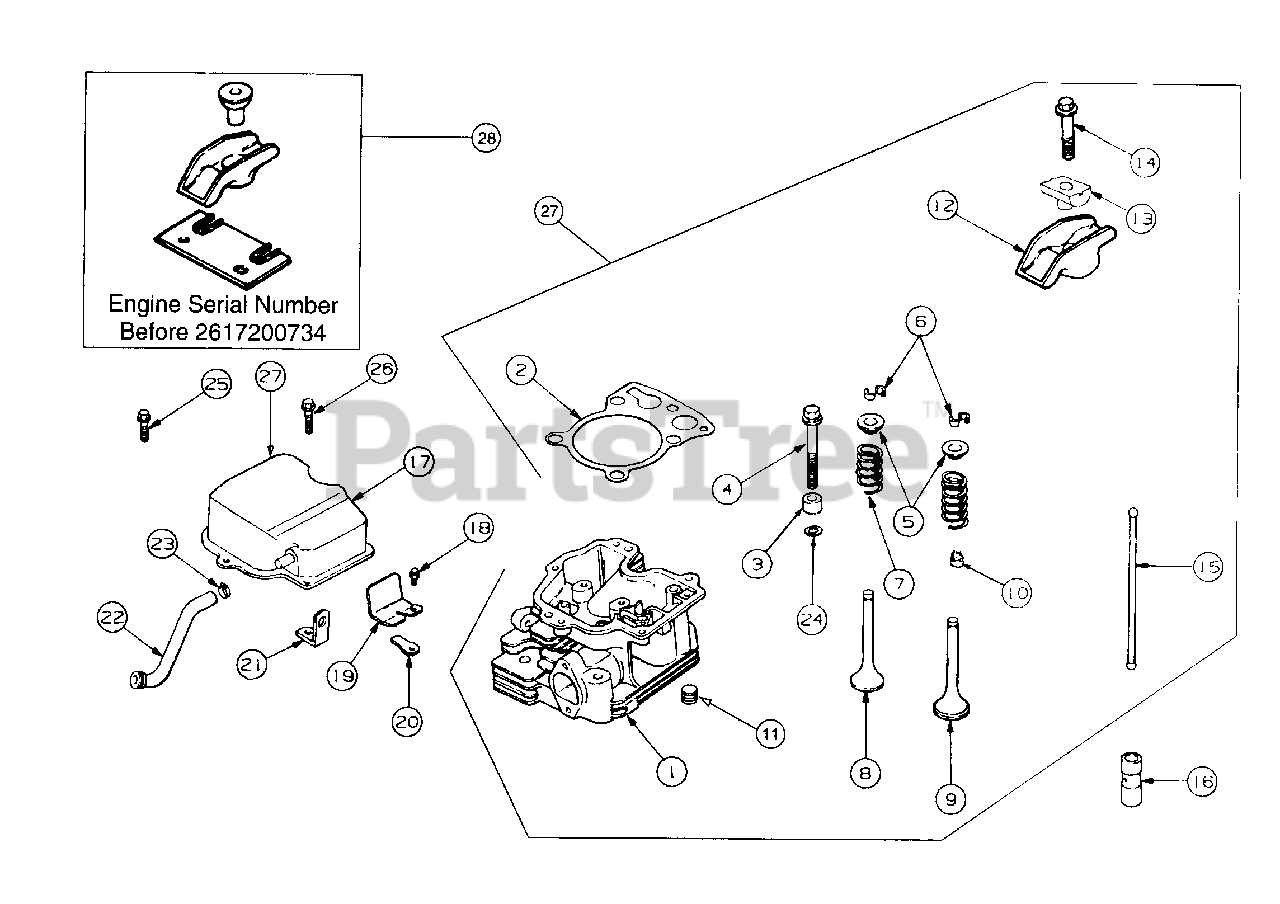

Cylinder Head, Valve and Breather Parts Diagram

  • Title

1

Cub Cadet KH-12-318-06

Cylinder Head
(Superseded to KH-12-755-81)

Note: (Engine Spec No 22508)

$

$

Not available

1

Cub Cadet KH-12-318-19

Cylinder Head

Note: (Engine Spec No 22531)

$

$

Not available

2

Cub Cadet KH-12-041-08

Gasket, Cylinder Head
(Superseded to KH-12-041-08-S)

$20.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-12-112-13

Spacer, Head Bolt, Exhaust Port

$

$

Not available

4

Cub Cadet KH-12-086-15

Screw, Cylinder Head, M10 x 1.5 x 81
(Superseded to KH-20-086-02-S)

$3.99

$

In Stock, Qty 17

0

5

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

6

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-089-01

Spring, Valve
(Superseded to KH-12-089-34-S)

$10.99

$

In Stock, only 2 left!

0

8

Cub Cadet KH-12-016-01

Valve, Exhaust, Std

$

$

Not available

Cub Cadet KH-12-016-02

Valve, Exhaust, .25

$

$

Not available

9

Cub Cadet KH-12-017-01

Valve, Intake, Std

$

$

Not available

Cub Cadet KH-12-017-02

Valve, Intake, .25

$

$

Not available

10

Cub Cadet KH-24-032-05

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-X-75-23

Plug, Allen Hd. 1/8" Pipe
(Superseded to KH-25-139-60-S)

Note: (Engine Spec No 22531)

$3.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

13

Cub Cadet KH-12-599-03

Pivot, Rocker Arm

$

$

Not available

14

Cub Cadet KH-M-0640034

Screw, Pivot Rocker, M6 x 1.0 x 34

$

$

Not available

15

Cub Cadet KH-12-411-01

Rod Push
(Superseded to KH-12-411-04-S)

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet KH-25-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

17

Cub Cadet KH-12-096-12

Cover, Valve w/Nipple
(Superseded to KH-12-755-102-S)

Note: (Engine Spec No 22508)

$86.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-096-07

Cover, Valve w/Nipple
(Superseded to KH-12-755-102-S)

Note: (Engine Spec No 22531)

$86.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-M-0545010

Screw, Brthr Reed Ret, M5 x .8 x 10

$

$

Not available

19

Cub Cadet KH-12-018-03

Retainer, Breather Reed

$

$

Not available

20

Cub Cadet KH-12-402-02

Reed, Breather

$

$

Not available

21

Cub Cadet KH-12-445-05

Strap, Lifting
(Superseded to KH-25-445-02-S)

$2.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-12-326-09

Hose, Breather
(Superseded to KH-12-326-25-S)

$12.99

$

In Stock, only 1 left!

0

23

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet KH-12-468-05

Washer, Flat

$

$

Not available

25

Cub Cadet KH-M-0645020

Screw,Hex Flange, M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet KH-M-0645025

Screw, Valve Cover, M6 x 1.0 x 25
(Superseded to KH-M-645025-S)

$2.49

$

In Stock, only 3 left!

0

27

Cub Cadet KH-12-755-81

Kit, Cylinder Head

Note: (Includes 6-15, 24, KH-12-041-01 (2), KH-12-041-02, and KH-12-041-03.)

$

$

Not available

28

Cub Cadet KH-12-755-74

Upgrade to Current Rocker Arm Assy

Note: (Order P/N KH-12-755-74 which Includes Ref Nos. 12 & 13)

$

$

Not available

Cub Cadet KH-12-113-69

Graphic, OHV Engine

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-12-041-03

GASKET-EXHAUST

$

$

Not available

Cub Cadet KH-12-041-02

GASKET-A/C BASE

$2.99

$

In Stock, Qty 5

0

Cub Cadet KH-12-041-01

GASKET-CARBURETOR

$2.49

$

In Stock, Qty 14

0
