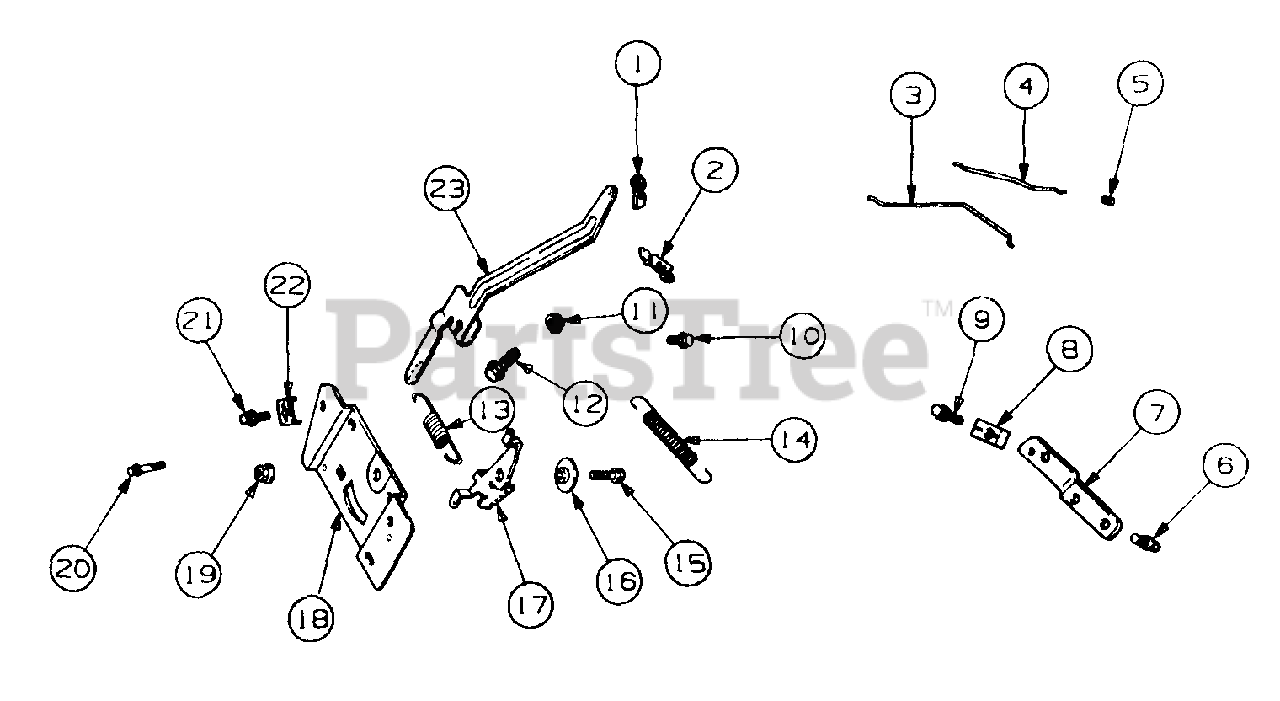

2135 (136-214F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Engine Controls Parts Diagram

Garden Tractor

Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-25-158-11

Bushing, Throttle

$

$

Not available

2

Cub Cadet KH-12-090-14

Lever, Choke, Upper

$

$

Not available

3

Cub Cadet KH-12-079-08

Linkage, Choke, Upper

$

$

Not available

4

Cub Cadet KH-12-079-04

Linkage, Throttle

$

$

Not available

5

Cub Cadet KH-25-158-08

Bushing, Linkage

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-M-0545010

Screw, Bracket, M5 x .8 x 10

$

$

Not available

7

Cub Cadet KH-12-126-15

Bracket, Choke Mount

$

$

Not available

8

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet KH-M-0545016

Screw, Clamp, M5 x .8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

10

Cub Cadet KH-M-0545010

Screw, M5 x .8 x 10

$

$

Not available

11

Cub Cadet KH-M-0641060

Nut, M6x1
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-M-0642025

Screw, Governor Arm, M6 x 1 x 25
(Superseded to KH-M-642025-S)

$2.49

$

In Stock, only 1 left!

0

13

Cub Cadet KH-12-089-17

Spring, Governor

$

$

Not available

14

Cub Cadet KH-230117

Spring, Linkage

$

$

Not available

15

Cub Cadet KH-M-0545016

Screw, Throttle Cntrl, M5 x .8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

16

Cub Cadet KH-12-112-07

Spacer, Throttle Control

$

$

Not available

17

Cub Cadet KH-12-090-13

Lever, Throttle Control

$

$

Not available

18

Cub Cadet KH-12-146-05

Plate, Control

$

$

Not available

19

Cub Cadet KH-M-0541050

Nut, Hex, M5 x .8

$

$

Not available

20

Cub Cadet KH-M-0645016

Screw, Control Plate, M6 x 1 x 16
(Superseded to KH-M-645016-S)

Note: (Used on Engine Spec #22508)

$3.99

$

In Stock, Qty 15

0

Cub Cadet KH-M-0664020

Screw, Control Plate, M6 x 1 x 20
(Superseded to KH-25-086-403-S)

Note: (Used on Engine Spec #22531)

$2.49

$

In Stock, only 2 left!

0

21

Cub Cadet KH-M-0545016

Screw, Cable Clamp, M5 x .8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

22

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet KH-12-090-19

Lever, Governor
(Superseded to KH-12-090-40-S)

$48.99

$

Usually ships in 2-5 days

0
