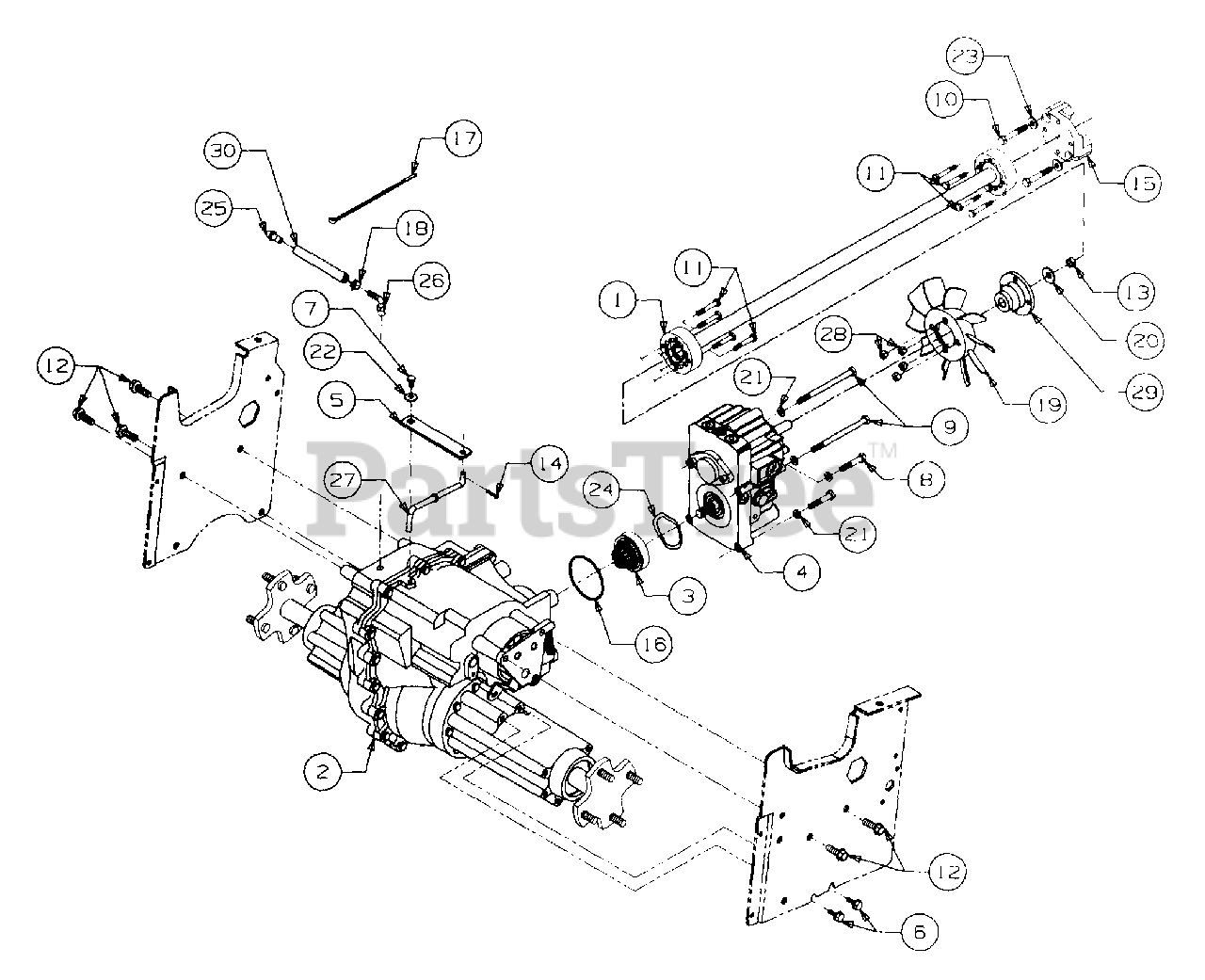

2135 (136-214F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Drive Line Parts Diagram

Garden Tractor

Drive Line Parts Diagram

  • Title

1

Cub Cadet 603-0191

Shaft Assy, Drive, 27.87 Lg

$318.99

$

In Stock, only 2 left!

0

Cub Cadet 759-3764

Kit, Drive Barrel

$27.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-3085A

Transmission Assembly, Hydro,
(Superseded to 918-3231)

Note: (For components see separate breakdown for Transmission)

$

$

Not available

3

Cub Cadet 618-3088

Pinion Assy, Input

$189.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-3111

Pump, Hydrostatic
(Superseded to 918-3111)

Note: (For components see separate parts breakdown for hydrostatic pump)

$

$

Not available

5

Cub Cadet 703-2568

Arm, Hydro Dump

$

$

Not available

6

Cub Cadet 710-1260

Screw, Hex Wash Hd Tap, 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0642

Screw, Hex Wash Hd Tap,1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 11

0

9

Cub Cadet 710-3195

Screw, Hex Cap, 5/16-18 x 4.5 GR5

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-24-086-16

Screw, Hex Patch, M10-1.5 x 90mm
(Superseded to KH-24-086-17-S)

Note: (Same as 710-3258)

$2.49

$

In Stock, Qty 5

0

11

Cub Cadet 710-3288

Screw, Hex Patch, 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

12

Cub Cadet 710-3290

Screw, Hex Wash Hd Tap, 3/8-16 x 1.25

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0262

Nut, Hex Center Lock Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0104

Pin, Internal Cotter, 5/16 Dia x 1.12

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$33.99

$

In Stock, only 1 left!

0

16

Cub Cadet 721-0261

O-Ring, 2.75 x .103

$9.99

$

In Stock, only 1 left!

0

17

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

19

Cub Cadet 731-3095

Fan, 10 Blade Cooling
(Superseded to 931-3095)

$28.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .063

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-3008

Washer, Flat, .312 x .750 x .119
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-3099

Washer, Spring Wave, 1.96 x 2.44 x .06
(Superseded to 936-3099)

$

$

Not available

25

Cub Cadet 737-0296

Vent

$12.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 737-0299

Fitting, Elbow

$

$

Not available

27

Cub Cadet 747-3228

Rod, Hydro Disengagement

$

$

Not available

28

Cub Cadet 748-3037

Nut, Fan, 1/4-20
(Superseded to 948-3037)

$

$

Not available

29

Cub Cadet 748-3052

Adapter, Pump

$52.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 759-3330

Line, Fuel, 7 in. Lg,

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft. Lg)

$63.99

$

In Stock, only 2 left!

0
