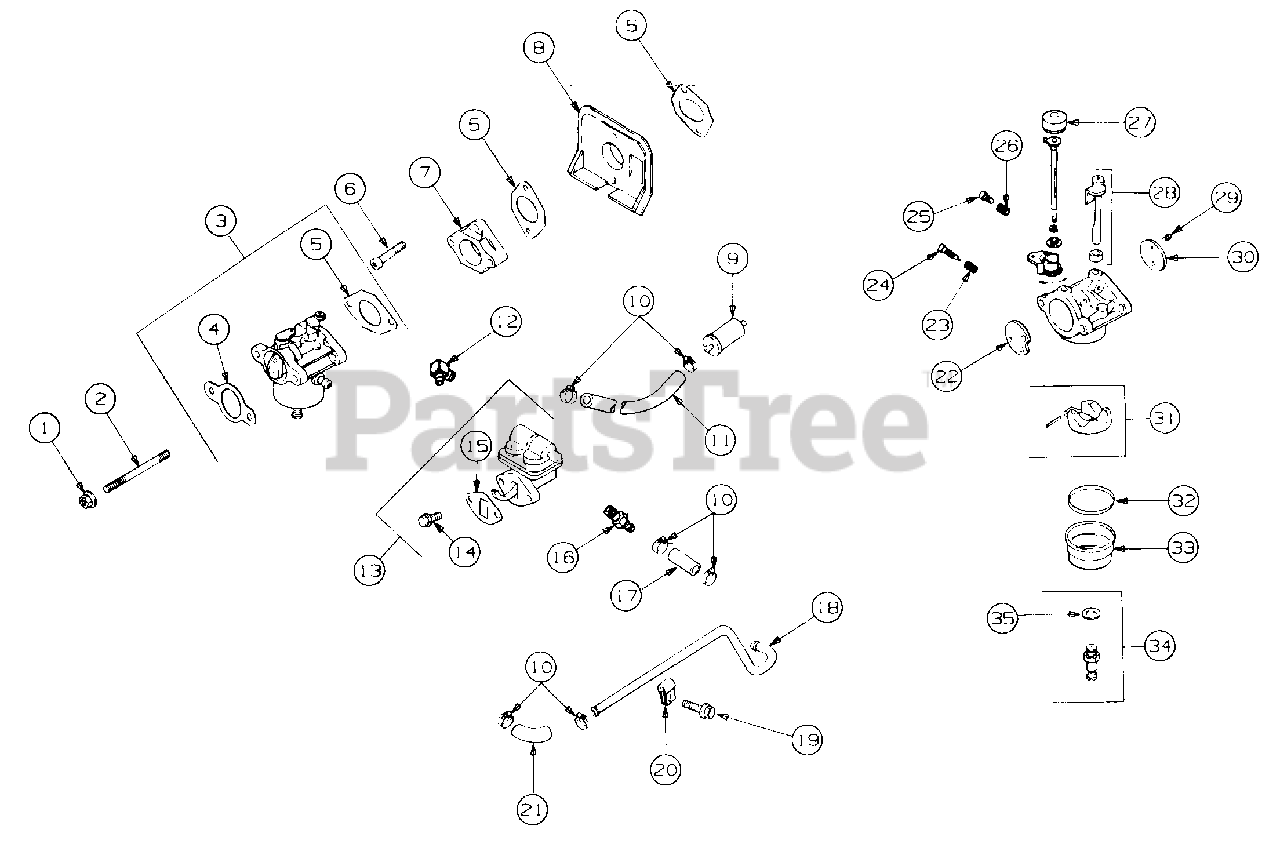

2135 (135-214F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Fuel System Parts Diagram

Garden Tractor

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-SM-0641060

Nut, Carburetor, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet KH-M-0629085

Stud, Carburetor, M6 x 1.0 x 72

$1.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-12-853-28

Kit, Carburetor w/Gaskets
(Superseded to KH-12-853-98-S)

Note: (Includes Ref No. 4 & 5)

$263.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-041-02

Gasket, Air Filter

$2.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 16

0

6

Cub Cadet KH-M-0644035

Screw, Adapter, M6 x 1.0 x 35
(Superseded to KH-M-644035-S)

$2.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-12-029-04

Adapter, Carburetor

$

$

Not available

8

Cub Cadet KH-12-265-01

Deflector, Heat
(Superseded to KH-12-265-08-S)

$9.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-25-050-03

Filter, Fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-X-426-9

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

11

Cub Cadet KH-12-353-07

Line, Fuel
(Superseded to KH-25-111-36-S)

$7.49

$

In Stock, only 1 left!

0

12

Cub Cadet KH-25-155-02

Connector, Hose, 90°.

$

$

Not available

13

Cub Cadet KH-12-559-01

Kit Fuel Pump
(Superseded to KH-12-559-02-S)

Note: (Includes Ref No. 14 & 15)

$48.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-M-0645020

Screw, Fuel Pump, M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-25-041-09

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

In Stock, only 1 left!

0

16

Cub Cadet KH-X-380-1

Connector, Straight Hose
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-25-353-02

Line, Fuel, 3"

$

$

Not available

18

Cub Cadet KH-12-123-06

Line, Fuel, Metal
(Superseded to KH-12-353-11)

$

$

Not available

19

Cub Cadet KH-M-0545010

Screw, Clip, M5 x 0.8 x 10

$

$

Not available

20

Cub Cadet KH-12-154-01

Clip, Tube

$

$

Not available

21

Cub Cadet KH-12-353-01

Line, Fuel, 1-1/4
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

22

Cub Cadet KH-12-146-10

Plate, Choke

$

$

Not available

23

Cub Cadet KH-12-089-09

Spring, Idle Fuel

$

$

Not available

24

Cub Cadet KH-12-368-01

Needle, Idle Fuel Adj

$

$

Not available

25

Cub Cadet KH-12-086-04

Screw, Idle Speed Adj

$

$

Not available

26

Cub Cadet KH-12-089-09

Spring, Idle Speed

$

$

Not available

27

Cub Cadet KH-12-173-06

Cap, Choke Lever

$

$

Not available

28

Cub Cadet KH-12-144-09

Shaft, Throttle w/Lever & Seal

$

$

Not available

29

Cub Cadet KH-25-086-27

Screw, Throttle Plate

$

$

Not available

30

Cub Cadet KH-12-146-03

Plate, Throttle

$

$

Not available

31

Cub Cadet KH-12-757-02

Kit, Float

$

$

Not available

32

Cub Cadet KH-12-041-05

Gasket, Bowl

$

$

Not available

33

Cub Cadet KH-12-104-01

Bowl, Fuel

$

$

Not available

34

Cub Cadet KH-12-755-13

Kit, Needle w/Gasket

Note: (Includes Ref No. 35)

$

$

Not available

35

Cub Cadet KH-12-041-06

Gasket, Bowl Ret Screw
(Superseded to KH-25-041-03)

$

$

Not available

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 16

0

Cub Cadet KH-12-757-01

Kit, Carburetor Repair

$

$

Not available

Cub Cadet KH-12-757-11

Kit, Choke Repair

$

$

Not available
