2135 (135-214F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) 38" Spindle Assembly Parts Diagram

Garden Tractor

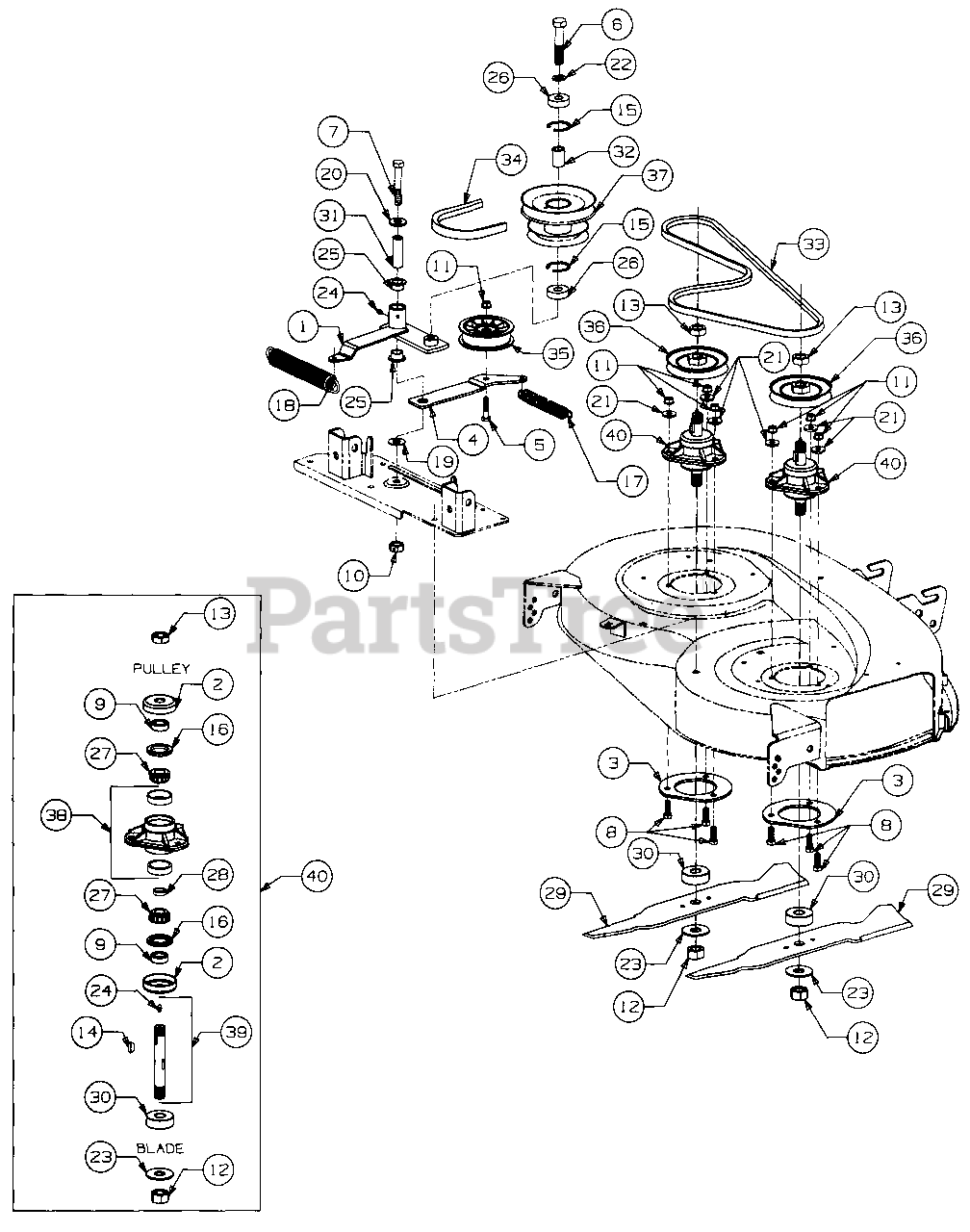

38" Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0172

Pivot Arm, Double Pulley
(Superseded to 903-0857)

Variations

Cub Cadet 603-0172-0498

Idler Arm Assembly - OLD CUB YELLOW (0498)

$131.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0172-0716

Idler Arm Assembly - CUB YELLOW-99 (0716)

$131.99

$

In Stock, only 1 left!

0

$131.99

$

In Stock, only 1 left!

0

2

Cub Cadet 703-1387

Cup, Spindle Hdn
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

3

Cub Cadet 703-1650

Plate, Spindle Mtg

$

$

Not available

4

Cub Cadet 703-2463

Arm, Idler
(Superseded to 703-2463-0637)

Variations

Cub Cadet 703-2463-0498

Idler Arm - OLD CUB YELLOW (0498)

$39.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2463-0637

Idler Arm - POWDER BLACK (0637)

$39.99

$

In Stock, only 2 left!

0

$39.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.50 Lg GR5

$4.49

$

In Stock, Qty 6

0

6

Cub Cadet 710-0923

Screw, Hex Cap, 5/8-18 x 13.0 Lg GR5

$9.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 13.0 Lg GR8

$

$

Not available

8

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 711-3171

Spacer, .755 x 1.25 x .44 Lg
(Superseded to 911-3171)

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3018

Nut, Hex, 3/4-16 GR8

$8.99

$

In Stock, Qty 6

0

13

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16 GR5

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 x 3/4 Hdn

$4.99

$

In Stock, only 2 left!

0

15

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 721-3018

Seal, Oil, 1.25 x 1.874 x .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

17

Cub Cadet 732-0262

Spring Extension, .88 OD x 6.12 Lg
(Superseded to 932-0262)

$

$

Not available

18

Cub Cadet 732-3115

Spring, Extension, 1.25 OD x 8.15

$

$

Not available

19

Cub Cadet 736-0100

Washer, Flat, .531 x 1.25 x .036 Thk

$6.99

$

In Stock, Qty 7

0

20

Cub Cadet 736-0179

Washer, Flat, .531 x 1.25 x .100 Thk

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x 6.135 Thk

$4.49

$

In Stock, only 3 left!

0

22

Cub Cadet 736-0290

Washer, Flat, .63 x 1.0 x .063 Thk Hdn

$6.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-3014

Washer, Flat, .781 x 2.0 x .105 Thk

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 737-3000

Fitting, 3/16 Drive Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 741-0338

Bearing, Flange, 3/4 ID x .53 Lg

$9.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 741-0524

Bearing, Ball, .62 ID x 1.57 OD x .44 Thk
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

27

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

28

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$12.99

$

In Stock, only 3 left!

0

29

Cub Cadet 742-3009

Blade, Low Lift, 19.38 Lg
(Superseded to 759-3817)

$27.99

$

In Stock, Qty 15

0

Cub Cadet 759-3395

Blade, Hard Coated Low Lift, 19.38 L
(Superseded to 759-3831)

$

$

Not available

Cub Cadet 742-3008

Blade, Bagging, 19.38 Lg
(Superseded to 759-3816)

$34.99

$

In Stock, Qty 14

0

Cub Cadet 759-3396

Blade, Hard Coated Bagging, 19.38 Lg
(Superseded to 759-3832)

$44.99

$

In Stock, Qty 5

0

30

Cub Cadet 748-3020

Spacer
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

31

Cub Cadet 750-0656

Spacer, Idler Brkt, .50 ID x .75 OD x 2.25 Lg

$11.99

$

In Stock, only 1 left!

0

32

Cub Cadet 750-3132

Spacer, Pulley, .635 ID x .88 OD x 1.25 Lg
(Superseded to 950-3132)

$9.99

$

In Stock, only 1 left!

0

33

Cub Cadet 754-3029

Belt, Spindle, A-Section x 59 Lg
(Superseded to 954-3029)

$32.99

$

In Stock, Qty 5

0

34

Cub Cadet 754-3055A

Belt, PTO, B-Section x 112.4 Lg
(Superseded to 954-3055A)

$59.99

$

In Stock, Qty 11

0

35

Cub Cadet 756-0627

Pulley, Flat Idler, 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

36

Cub Cadet 756-3008

V-Pulley, 4.62 OD

$53.99

$

In Stock, Qty 6

0

37

Cub Cadet 756-3070

Pulley, Double
(Superseded to 756-3113)

$141.99

$

In Stock, only 1 left!

0

38

Cub Cadet 759-3226

Housing w/Cups, Spindle
(Superseded to 959-3226)

$

$

Not available

39

Cub Cadet 759-3369

Kit, Shaft w/Seal
(Superseded to 959-3369)

$78.99

$

In Stock, only 3 left!

0

40

Cub Cadet 759-3665

Spindle Assy, Blade
(Superseded to 959-3665)

$

$

Not available
