2135 (134-214F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Neutral Linkage, Hydraulic Pickup & Return Tubes S/N 006356 & Below Parts Diagram

Garden Tractor

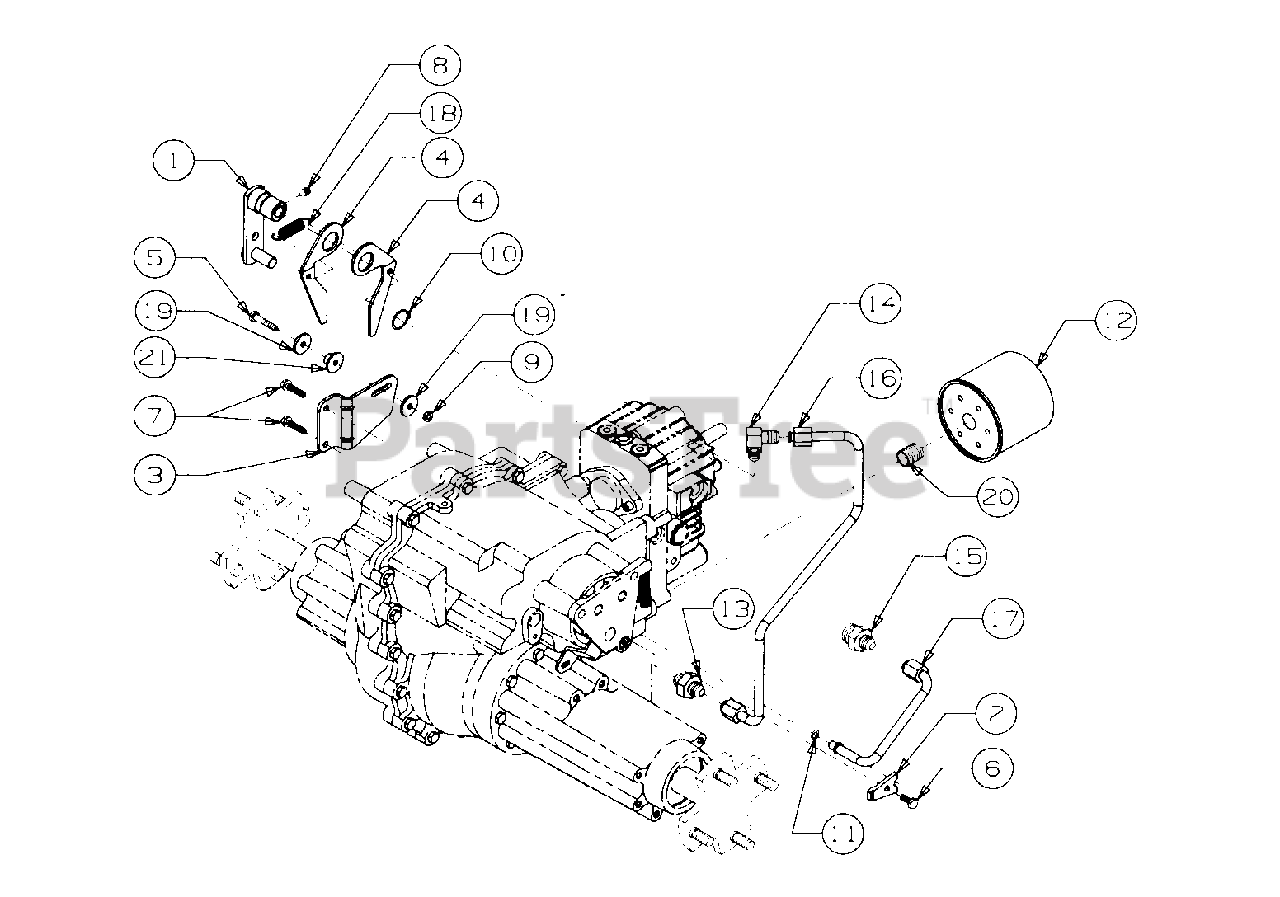

Neutral Linkage, Hydraulic Pickup & Return Tubes S/N 006356 & Below Parts Diagram

  • Title
1

Cub Cadet 603-0160

Arm Assy, Control

$

$

Not available

2

Cub Cadet 703-1802

Clamp, Single

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2440

Bracket, Hydro Neutral

$

$

Not available

4

Cub Cadet 703-2441

Arm, Neutral

$7.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 x 1.25 Lg

$3.99

$

In Stock, Qty 12

0

6

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0788

Screw, Hex Wash TT-Tap 1/4-20 x 1.0 Lg

$7.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3242

Screw w/Patch,Set

$

$

Not available

9

Cub Cadet 712-0324

Nut, Hex Top Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

10

Cub Cadet 716-0111

Ring, Snap, .875 Shaft

$6.99

$

In Stock, only 4 left!

0

11

Cub Cadet 721-3021

O-Ring,.301 x .070 Dia
(Superseded to 921-3021)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

13

Cub Cadet 727-3002

Connector, Tube 37 Deg w/O-Ring
(Superseded to 927-3002)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.49

$

In Stock, Qty 6

0

14

Cub Cadet 727-3086

Elbow, Adjustable w/O-Ring

$

$

Not available

Cub Cadet 721-3002

O-Ring, 1/4 OD Tube

$

$

Not available

15

Cub Cadet 727-3087

Connector, Straight w/O-Ring

$

$

Not available

Cub Cadet 721-3005

O-Ring, 5/8 OD Tube
(Superseded to 921-3005)

$

$

Not available

16

Cub Cadet 727-3088

Tube, Pickup

$

$

Not available

17

Cub Cadet 727-3089

Tube, Return

$

$

Not available

18

Cub Cadet 732-3119

Spring, Extension, .50 OD x 1.97 Lg
(Superseded to 732-3119A)

$23.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0176

Washer, Flat, .25 x .93 x .120 Thk

$4.99

$

In Stock, only 4 left!

0

20

Cub Cadet 737-3022

Nipple, Oil Filter
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0

21

Cub Cadet 750-0918

Spacer, Centering

$

$

Not available
