2135 (134-214F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) 38" Deck Assembly Parts Diagram

Garden Tractor

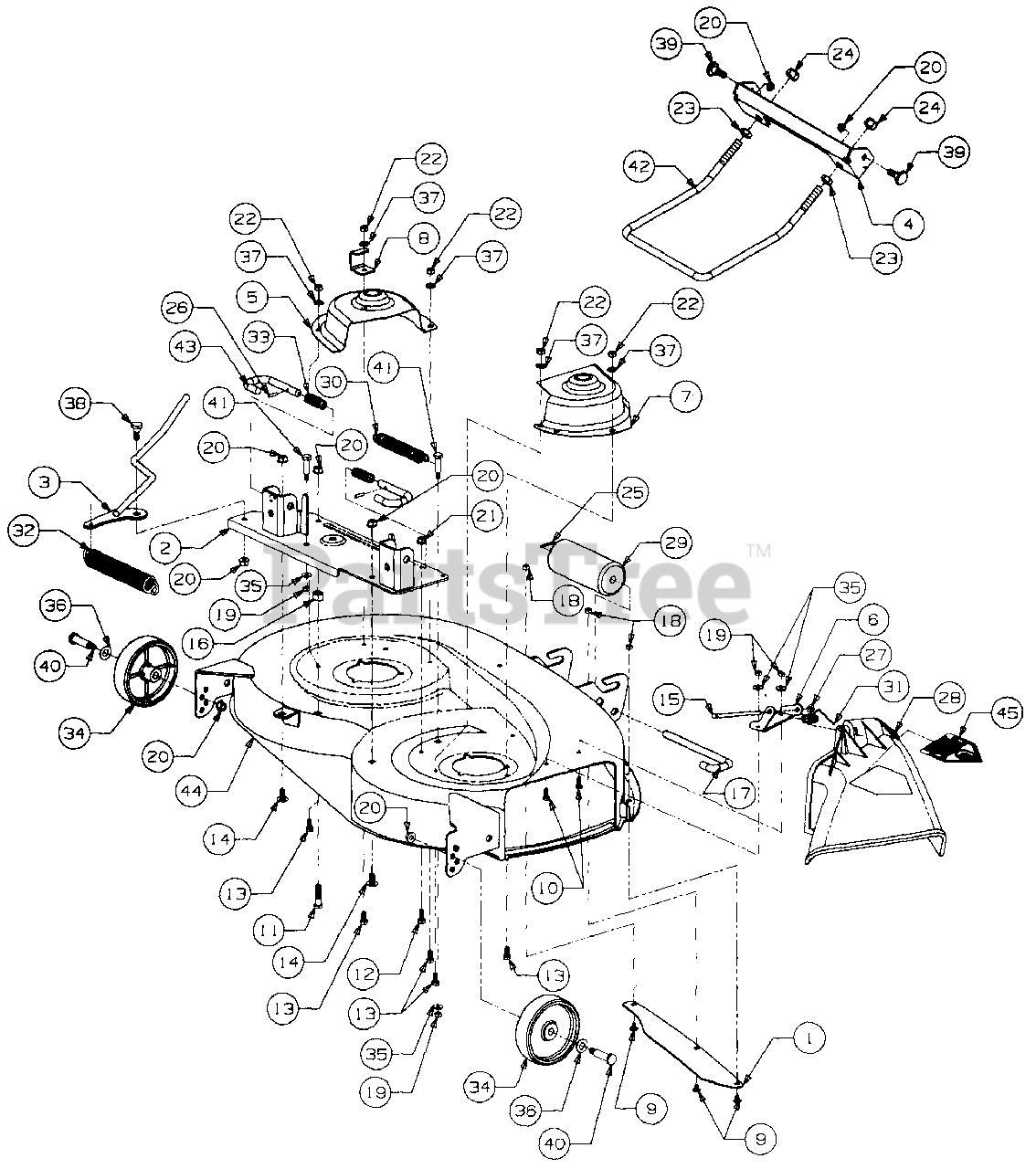

38" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 17863

Skirt, Extension
(Superseded to 17863-0637)

Variations

Cub Cadet 17863-0637

SKIRT-EXTENSION - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-0181

Plate Assy, Mounting
(Superseded to 603-0181B)

Variations

Cub Cadet 603-0181-0498

USE 603-0181B-0716 PLATE ASM- - OLD CUB YELLOW (0498)

$192.99

$

Usually ships in 3-6 days

0

$155.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0199

Handle, Tension

Variations

Cub Cadet 603-0199-0498

USE 603-0199-0716 HANDLE TEN - OLD CUB YELLOW (0498)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0199-0716

HANDLE TENSION - CUB YELLOW-99 (0716)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0199-0637

HANDLE TENSION - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0199-4021

TENSION HANDLE - CUB YELLOW 2 (4021)

$

$

Not available

$54.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0200

Bracket, Front Lift
(Superseded to 703-2248)

Variations

Cub Cadet 603-0200-0498

Front Lift Bracket - OLD CUB YELLOW (0498)

$47.99

$

In Stock, only 2 left!

0

Cub Cadet 603-0200-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$47.99

$

In Stock, only 2 left!

0

$38.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-1413

Cover, LH Belt

$

$

Not available

6

Cub Cadet 703-1693

Bracket, Hinge Mtg
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

7

Cub Cadet 703-2182

Cover, RH Belt
(Superseded to 703-3237-4021)

Variations

Cub Cadet 703-2182-0498

Belt Cover, RH Yellow - OLD CUB YELLOW (0498)

$66.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2559

Bracket, Handle Stop

Variations

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0167

Bolt, Carriage, 1/4-20 x .50 Lg
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x 2.62 Lg GR2
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.50 Lg GR5

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3021

Screw, Hex Cutting, 5/16-18 x .62 Lg

$

$

Not available

14

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 x .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0792

Pin, Hinge, .25 Dia x 6.75 Lg
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 711-3224

Spacer, .395 ID x .75 OD x .440 Lg

$

$

Not available

17

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

18

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

20

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3083

Nut, Hex Top Nylon Lock, 112-13

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia x 1.0 Lg

$3.99

$

In Stock, only 2 left!

0

26

Cub Cadet 715-3003

Pin, Spirol Spring, 3/16 Dia x .75 Lg

$6.99

$

In Stock, Qty 7

0

27

Cub Cadet 726-0106

Cap, Speed Nut

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-1032

Deflector Assy, Chute
(Superseded to 631-05229)

Note: (Includes Ref No. 6, 15, 27 & 31)

$81.99

$

In Stock, Qty 6

0

29

Cub Cadet 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

30

Cub Cadet 732-0262

Spring, Extension, .88 OD x 6.12
(Superseded to 932-0262)

$

$

Not available

31

Cub Cadet 732-0602

Spring, Torsion
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

32

Cub Cadet 732-3115

Spring, Extension, 1.25 OD x 8.15 Lg

$

$

Not available

33

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 734-0973

Wheel, Deck, 5 in. Dia

$12.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062 Thk

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0272

Washer, Flat, .51 0 x 1.0 x .060 Thk

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0275

Washer, Flat, .34 x .68 x .062 Thk

$6.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340 Lg

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 738-0507B

Bolt, Shoulder, .50 Dia x .434 Lg

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0533

Bolt, Shoulder, .498 Dia x 1.64 Lg

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 738-0572

Bolt, Shoulder, .375 Dia x 1.16 Lg

$7.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-3172

Rod, Front Lift
(Superseded to 747-3172C)

$71.99

$

In Stock, only 3 left!

0

43

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, only 3 left!

0

44

Cub Cadet 759-3730

Deck Assy w/Graphics

$

$

Currently unavailable

Cub Cadet 777-9192A

Graphic, Rider Danger
(Superseded to 777S30018)

$8.49

$

In Stock, Qty 11

0

Cub Cadet 777-1043

Graphic, Man & Machine

$

$

Not available

Cub Cadet 777-9341

Graphic, Assemble Chute
(Superseded to 777S30295)

$20.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0
