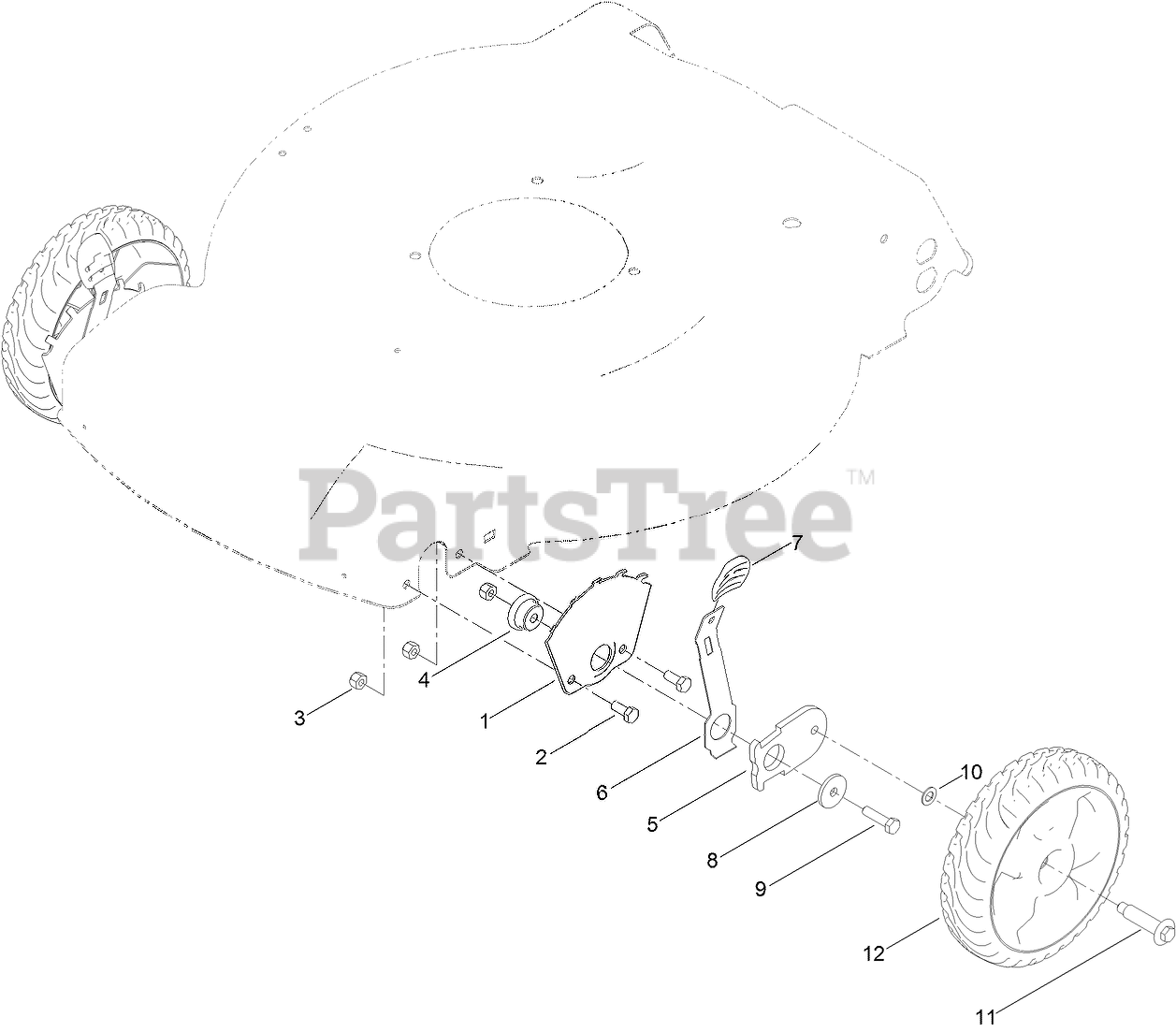

21329 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 400000000 - 403899999) Front Wheel and Height-of-Cut Assembly Parts Diagram
22" Recycler Walk-Behind Mower with SmartStow
Front Wheel and Height-of-Cut Assembly Parts Diagram
Toro 115-1956-03
PLATE-HOC, FRONT
$10.99
$
In Stock, Qty 8
Toro 322-3
SCREW-HH
$0.99
$
In Stock, Qty 13
Toro 3296-29
NUT-LOCK, NI
$2.49
$
In Stock, Qty 20+
Toro 105-1818
BUSHING-MOUNT, HOC
$5.49
$
In Stock, Qty 9
$7.49
$
In Stock, only 3 left!
Toro 105-1809
ARM-SPRING
$11.99
$
In Stock, only 2 left!
Toro 105-3042
KNOB-LEVER, HOC
$4.49
$
In Stock, Qty 5
Toro 105-3048
WASHER-FLAT
$1.49
$
In Stock, Qty 12
Toro 322-6
SCREW-HH
$3.99
$
In Stock, Qty 20+
Toro 40-1940
WASHER
$2.99
$
In Stock, Qty 18
Toro 614650
BOLT-SHOULDER
$4.49
$
In Stock, Qty 6
Toro 137-4833
81IN WHEEL ASM
$26.99
$
In Stock, Qty 11
