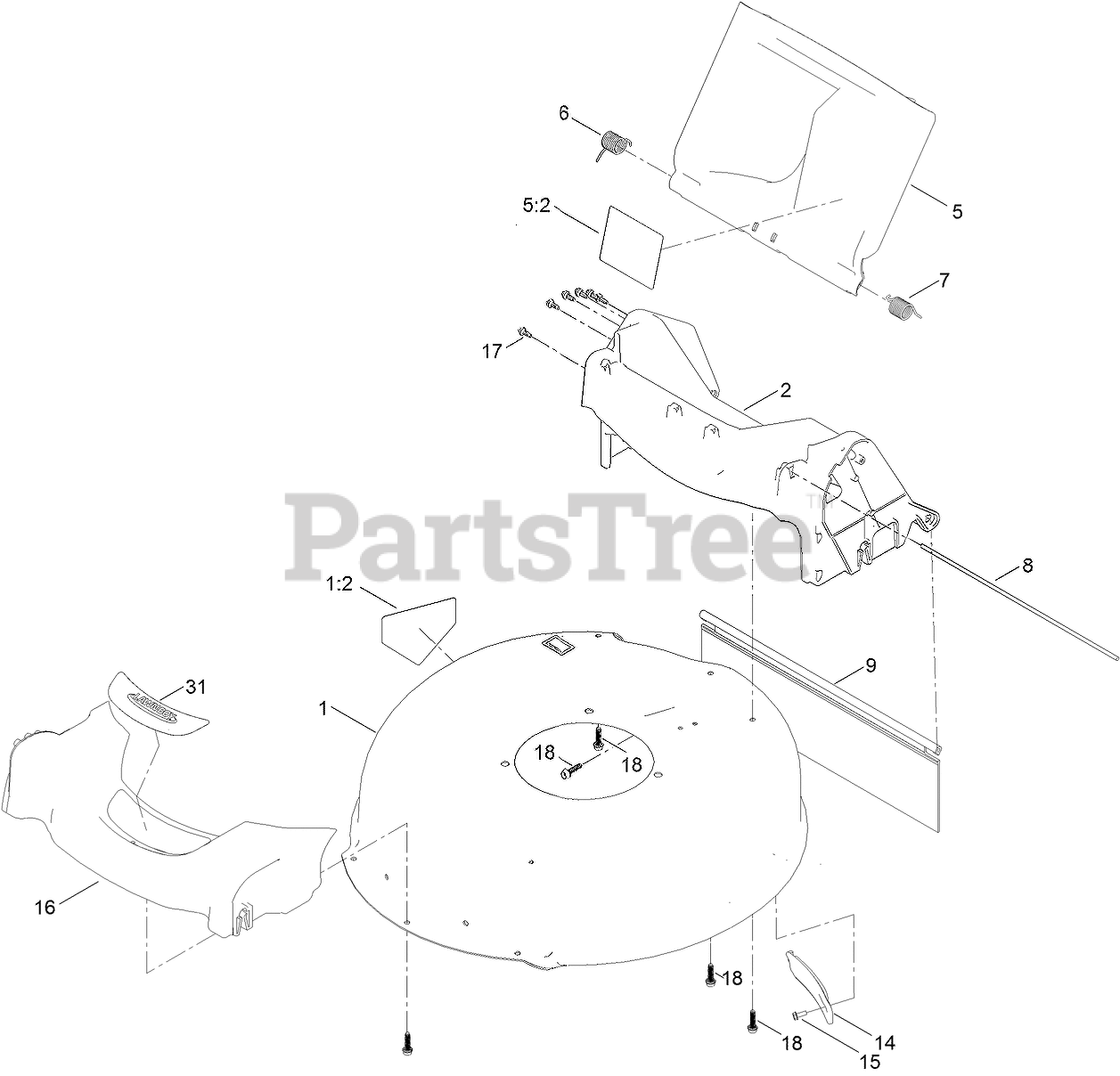

21320 - Toro 21" Recycler Walk-Behind Mower (SN: 406000000 - 999999999) Housing Assembly Parts Diagram

21" Recycler Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 136-5906

HOUSING ASM

$182.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

2

Toro 130-6657

CHUTE ASM

$45.99

$

In Stock, only 1 left!

0

5

Toro 130-2368

REAR DEFLECTOR ASM

$27.99

$

Usually ships in 3-6 days

0

5:2

Toro 117-4143

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

6

Toro 127-6807

SPRING-TORSION

$3.49

$

In Stock, only 2 left!

0

7

Toro 138-5378

SPRING-TORSION

$1.99

$

Usually ships in 3-6 days

0

8

Toro 127-0698

ROD-DOOR

$2.99

$

In Stock, only 1 left!

0

9

Toro 127-0724

SHIELD-TRAILING

$13.99

$

Usually ships in 3-6 days

0

14

Toro 132-4518

COVER-BELT

$2.99

$

Usually ships in 3-6 days

0

15

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

16

Toro 127-0677

BUMPER

$22.99

$

In Stock, only 1 left!

0

17

Toro 130-2355

STUD

$0.99

$

In Stock, Qty 10

0

18

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 6

0

31

Toro 136-5905

DECAL-DECK

$6.49

$

Usually ships in 3-6 days

0
