21319 - Toro 21" Recycler Walk-Behind Mower (SN: 400000000 - 999999999) FRONT WHEEL ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

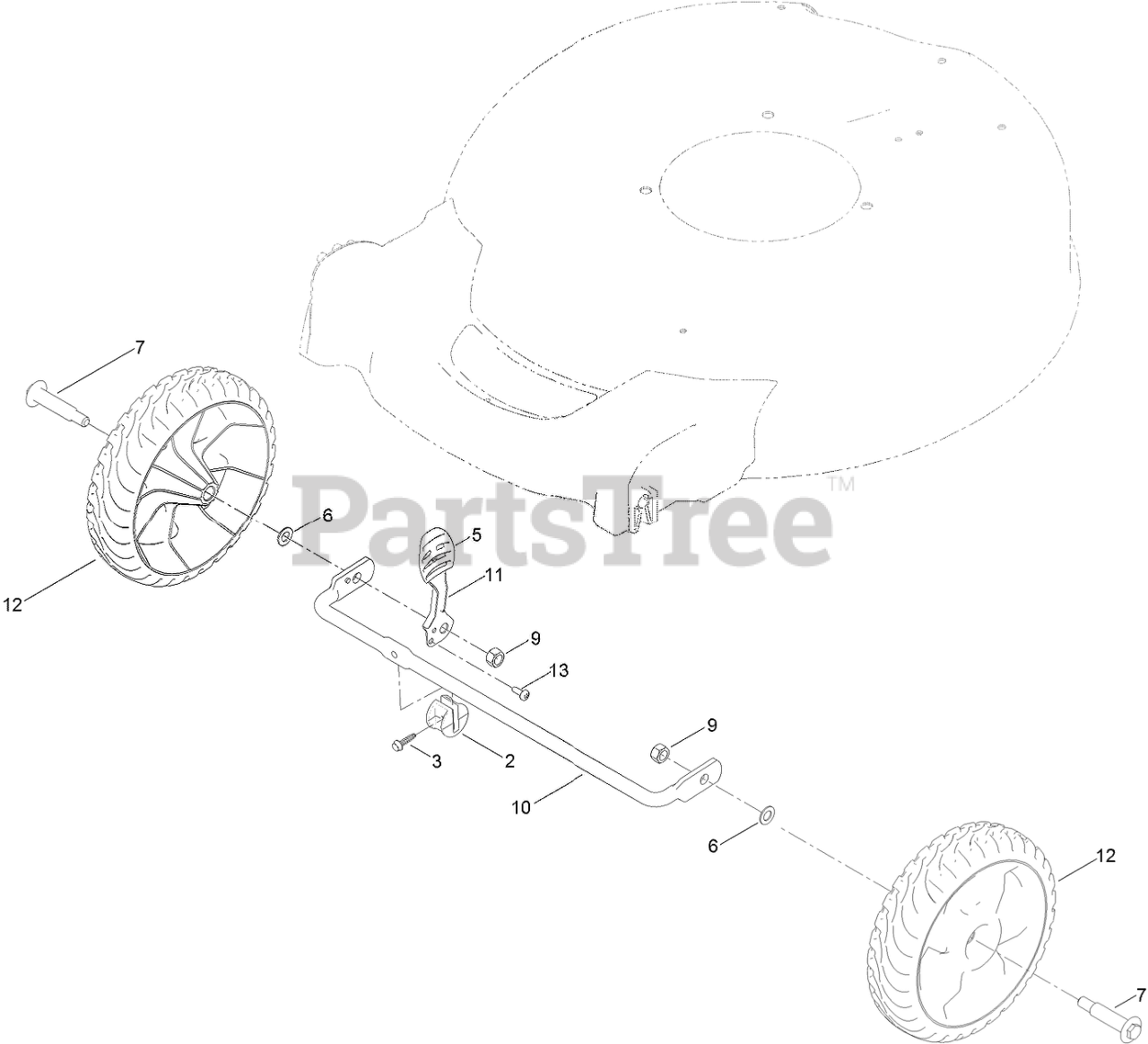

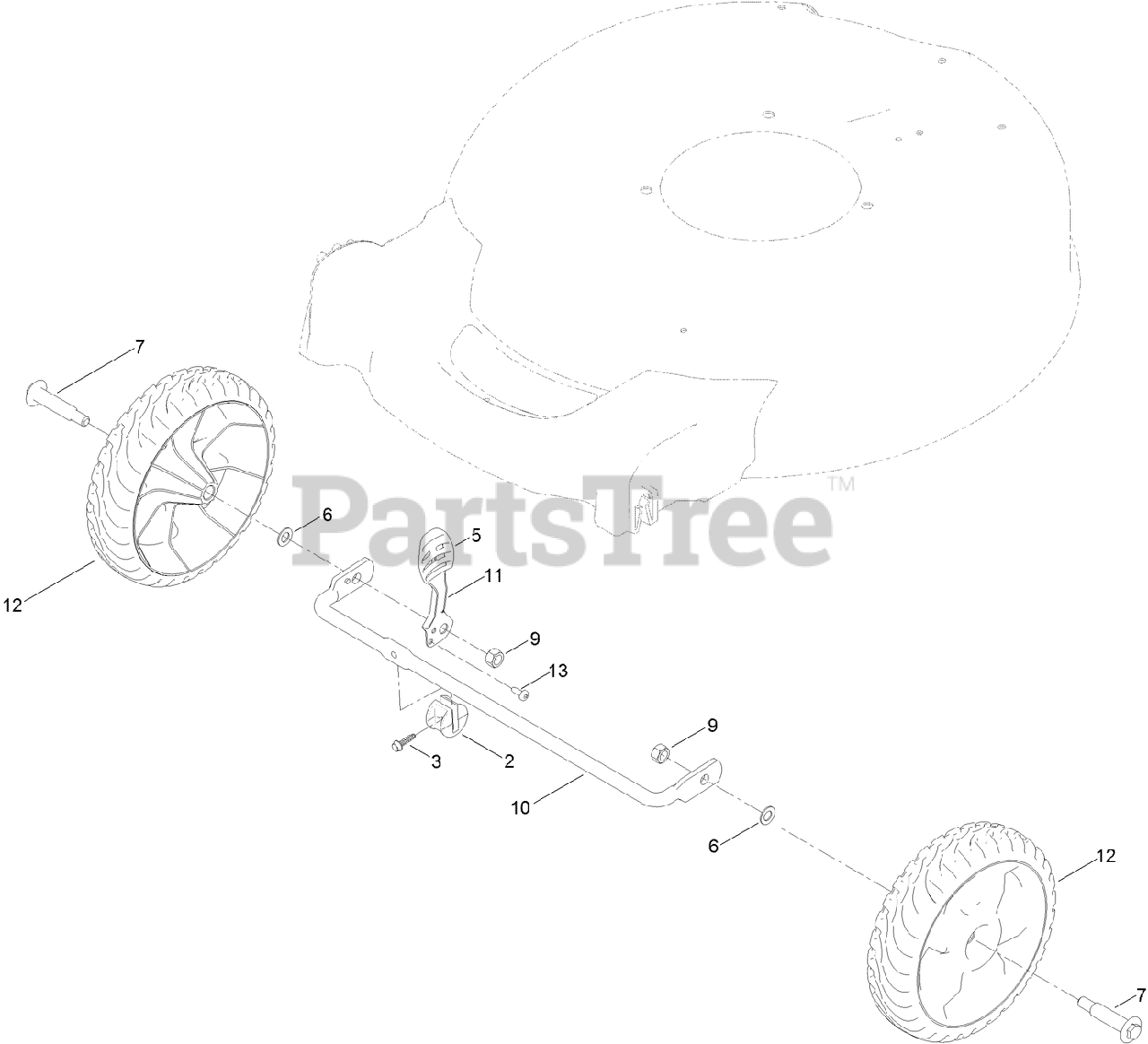

FRONT WHEEL ASSEMBLY Parts Diagram

  • Title
2

Toro 127-6800

STOP-AXLE

$1.49

$

In Stock, Qty 7

0

3

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

5

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, only 3 left!

0

6

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

7

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 11

0

9

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, only 2 left!

0

10

Toro 133-8153-03

AXLE-FRONT

$16.99

$

Usually ships in 3-6 days

0

11

Toro 133-8154

ARM-SPRING

$8.99

$

In Stock, only 3 left!

0

12

Toro 115-2894

8 INCH WHEEL ASM
(Superseded to 137-4833)

$26.99

$

In Stock, Qty 11

0

13

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0
