2130 - Green Machine String Trimmer Gearcase Parts Diagram

String Trimmer

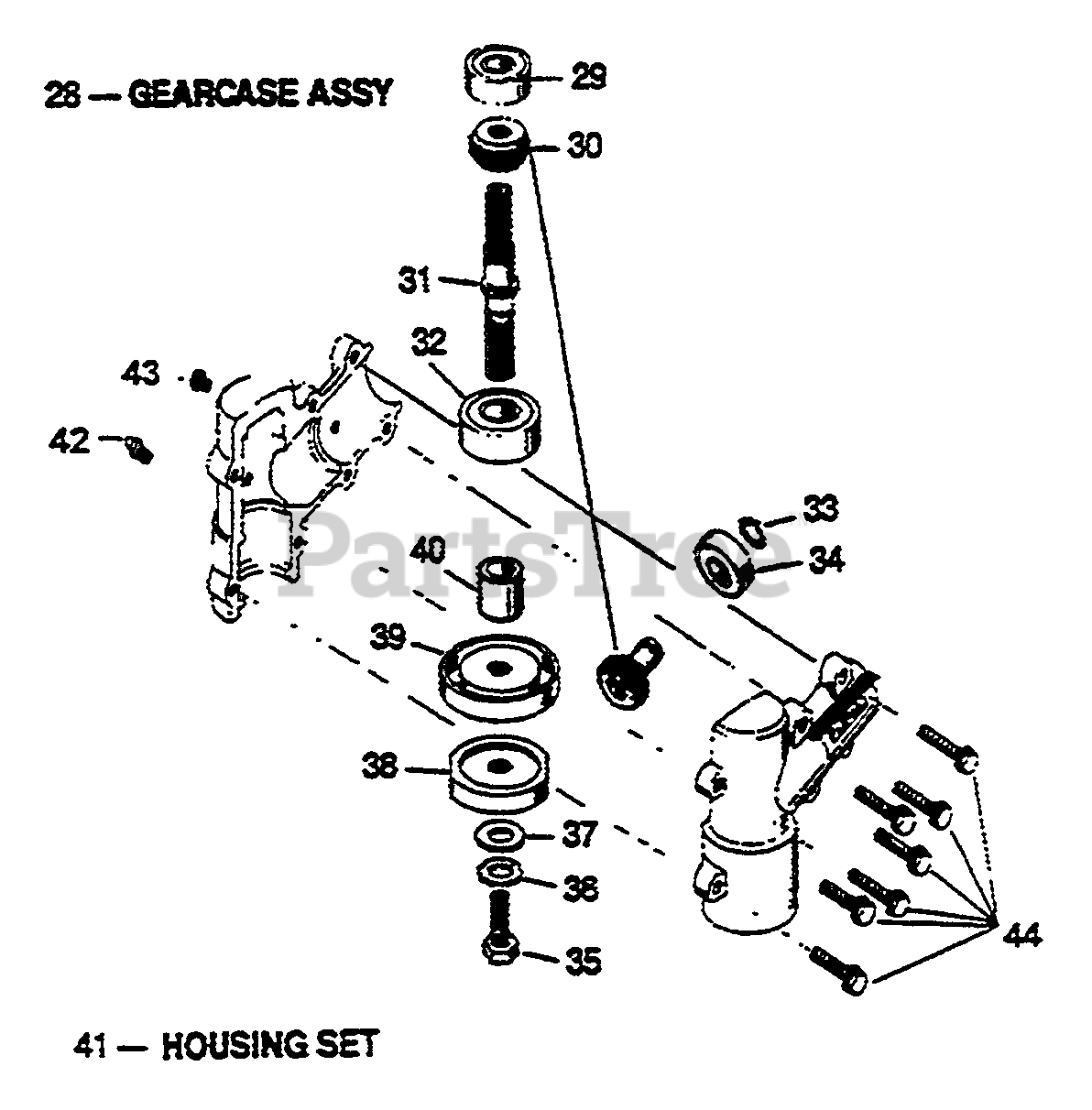

Gearcase Parts Diagram

  • Title
28

Homelite GM270303

GEARCASE ASSY
(Superseded to UP05308)

$191.99

$

Usually ships in 3-7 days

0

29

Homelite GM070027

BEARING
(Superseded to UP05816)

$

$

Not available

30

Homelite GM190609

GEAR SET KIT

$79.99

$

Usually ships in 3-7 days

0

31

Homelite GM226706

SHAFT, GEAR

$

$

Not available

32

$

$

Currently unavailable

33

Homelite GM060020

RING
(Superseded to 09151)

$

$

Not available

34

Homelite GM070026

BEARING
(Superseded to UP06386)

$

$

Not available

35

Homelite GM300080

BOLT
(Superseded to UP08260)

$

$

Not available

36

Homelite GM040007

WASHER
(Superseded to UP06519)

$

$

Not available

37

$

$

Not available

38

Homelite GM300075

HOLDER B
(Superseded to UP06798)

$9.99

$

Usually ships in 3-7 days

0

39

$

$

Not available

40

$

$

Currently unavailable

41

Homelite GM270306

HOUSING SET

Note: Includes ref Nos 42 thru 44

$

$

Currently unavailable

42

Homelite GM286710

FITTING ZERK

$

$

Not available

43

Homelite GM011310

SCREW-SELF TAPPING
(Superseded to UP04157)

$

$

Not available

44

Homelite GM011309

SCREW-SELF TAPPING
(Superseded to UP07929)

$

$

Not available
