2130 (13B-212F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Engine Mounting And Muffler Parts Diagram

Garden Tractor

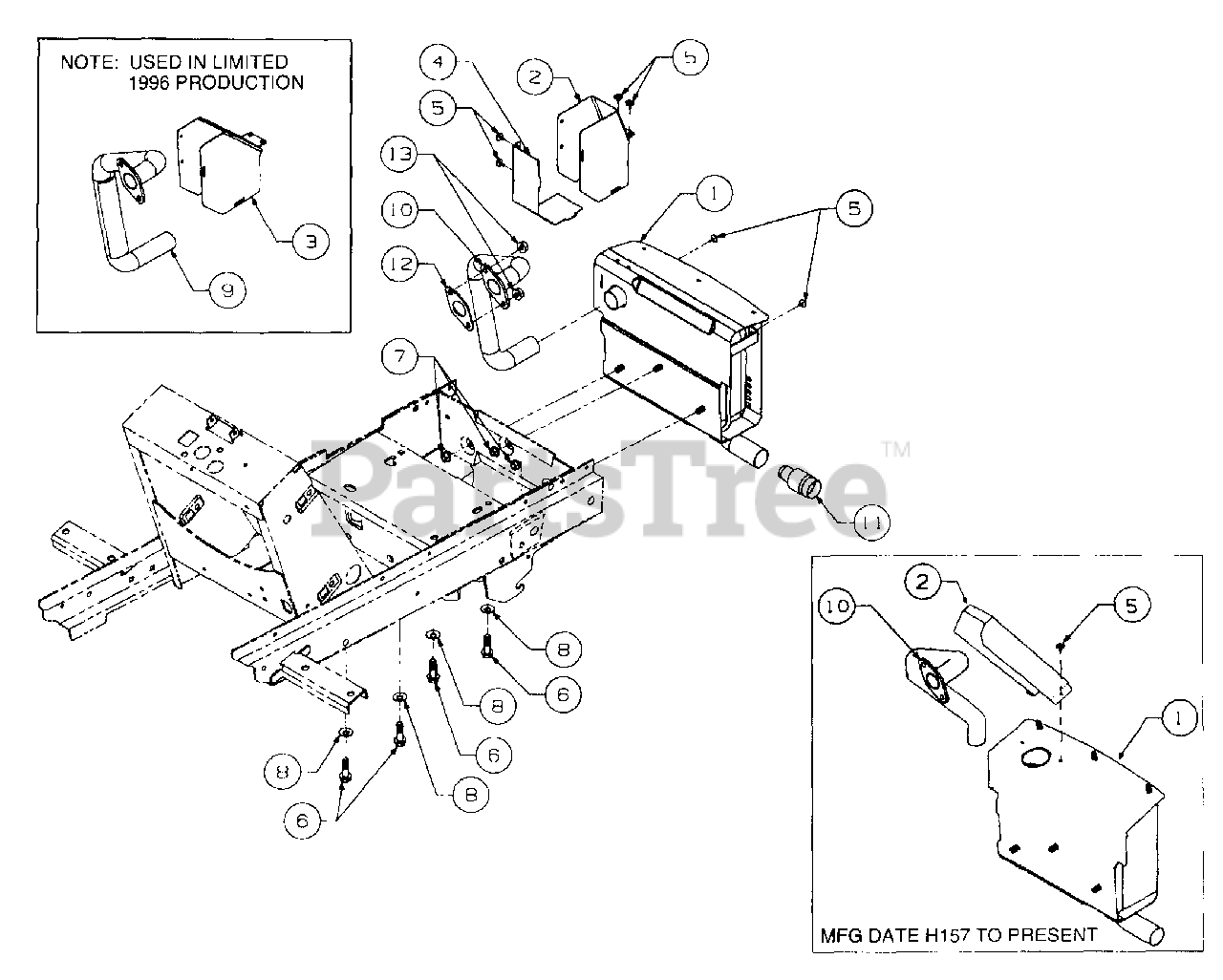

Engine Mounting And Muffler Parts Diagram

  • Title

1

Cub Cadet 951-3000A

Muffler Assembly

Note: (Mfg Date Prior to H157)

$

$

Not available

Cub Cadet 951-3001

Muffler Assembly
(Superseded to 951-3001P)

Note: (Mfg Date H157 to Present) (Replaces 951-3000A by Ordering Part Number 751-0653 and 703-3099)

$437.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2845

Shield, Exh.

Note: (Mfg. Date Prior to H157)

$

$

Not available

Cub Cadet 703-3099

Shield, Exh.
(Superseded to 703-3099A)

Note: (Mfg. Date H157 to Present)

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2846

Shield, Exh.

Note: (Used with exhaust tube 751-3120)

$

$

Currently unavailable

4

Cub Cadet 703-2847

Shield, Exhaust Tube Rear

$

$

Currently unavailable

5

Cub Cadet 710-1268

Screw, Hex Wash Hd Tapp #10-16 x .38

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-3290

Screw, Engine Mounting 3/8-16 x 1.25

$4.49

$

In Stock, only 1 left!

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 751-3120

Tube, Exaust, w/Attached Heat Baffle

$

$

Not available

10

Cub Cadet 751-3137

Tube, Exh.

Note: (Mfg Date Prior to H157)

$

$

Not available

Cub Cadet 751-0653

Tube, Exh.

Note: (Mfg Date H157 to Present)

$122.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 759-3744

Arrestor, Spark
(Superseded to 951-0544)

$

$

Not available

12

Cub Cadet 721-0375

Gasket, Exhaust (Same as KH-12-041-03)
(Superseded to KH-12-041-03)

$

$

Not available

13

Cub Cadet 712-3086

Nut, Exhaust, M8 x 1.25 (Same as KH-M-0841080)

$4.49

$

In Stock, only 2 left!

0
