2130 (13A-212F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Oil Pan/Lubrication Parts Diagram

Garden Tractor

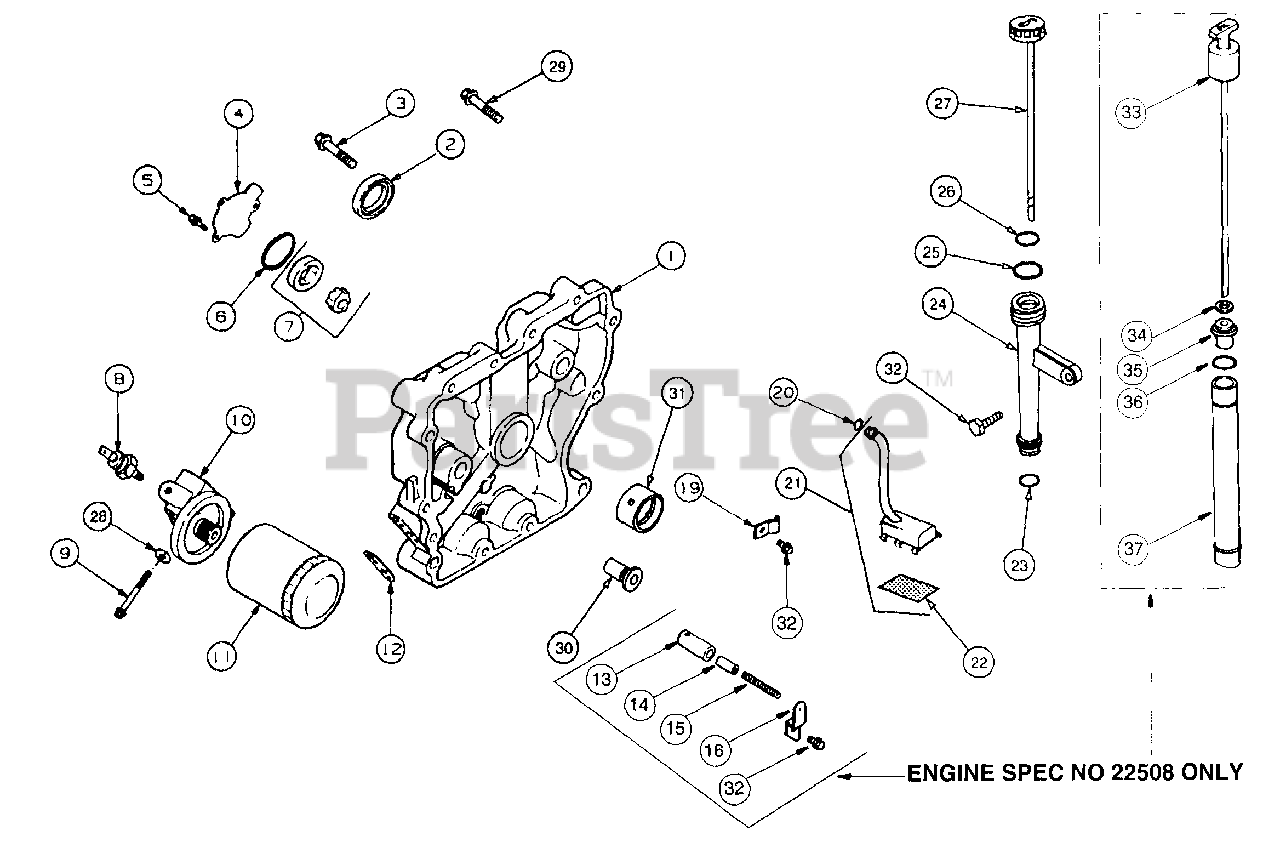

Oil Pan/Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-12-009-39

Plate Assembly, Closure

Note: (Includes 4, 6, 7, 30 and 31

$

$

Not available

2

Cub Cadet KH-12-032-03

Seal, Oil
(Superseded to KH-12-032-03-S)

Note: (PTO end)

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-086-16

Screw, Closure Plate M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

4

Cub Cadet KH-12-096-21

Cover, Oil Pump

$

$

Not available

5

Cub Cadet KH-M-545016

Screw, Oil Pump Cover, M5 x 0.8 x 16

$

$

Currently unavailable

6

Cub Cadet KH-12-153-05

O-Ring, Oil Pump

$

$

Not available

7

Cub Cadet KH-12-393-01

Pump Assembly, Oil

$

$

Not available

8

Cub Cadet KH-25-099-24

Switch, Oil Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0

9

Cub Cadet KH-M-651055-S

Screw, Oil Filter Adapter M6 x 1 x 55
(Superseded to KH-25-086-84-S)

$2.49

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-12-029-08

Adapter, Oil Filter

$

$

Not available

11

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

12

Cub Cadet KH-12-041-07

Gasket, Oil Filter Adapter

$

$

Not available

13

Cub Cadet KH-12-208-02

Body, Oil Pump Relief Valve
(Superseded to KH-25-462-09)

$

$

Not available

14

Cub Cadet KH-12-462-02

Piston, Oil Pump Relief Valve

$

$

Not available

15

Cub Cadet KH-12-089-16

Spring, Oil Pump Relief Valve

$

$

Currently unavailable

16

Cub Cadet KH-12-126-16

Bracket, Oil Pump Relief Valve
(Superseded to KH-25-462-09)

$

$

Not available

19

Cub Cadet KH-52-154-01

Clip, Oil Tube

$

$

Not available

20

Cub Cadet KH-12-153-04

O-Ring, Oil Pick-Up

$

$

Not available

21

Cub Cadet KH-12-755-73

Kit, Oil Pick-Up

Note: (Includes 22)

$

$

Not available

22

Cub Cadet KH-25-381-01

Pick-Up, OIl Screen

$

$

Not available

23

Cub Cadet KH-12-153-07

O-Ring Lower Oil Fill Tube

$

$

Not available

24

Cub Cadet KH-12-023-22

Tube, Oil Fill

$

$

Currently unavailable

25

Cub Cadet KH-12-153-02

O-Ring, Upper Oil Fill Tube
(Superseded to KH-12-153-02-S)

$2.49

$

In Stock, Qty 8

0

26

Cub Cadet KH-12-153-03

O-Ring, Dipstick Cap
(Superseded to KH-25-153-02-S)

$2.49

$

In Stock, only 1 left!

0

27

Cub Cadet KH-12-038-08

Cap/Dipstick, Oil Fill

$

$

Not available

28

Cub Cadet KH-X-25-12

Washer, Plain, 1/4

$

$

Not available

29

Cub Cadet KH-24-086-17

Screw, Hex Flange M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

30

Cub Cadet KH-25-462-09

Valve, Oil Pressure Relief

$

$

Not available

31

Cub Cadet KH-12-030-05

Bearing, Thrust

$

$

Not available

32

Cub Cadet KH-M-0545016

Screw, Hex Flange M5 x .8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

33

Cub Cadet KH-47-038-27

Dipstick Assembly

$

$

Not available

34

Cub Cadet KH-X-25-44

Washer, Plain, 5/16

$

$

Not available

35

Cub Cadet KH-52-032-14

Seal, Rubber
(Superseded to KH-25-032-13-S)

$3.49

$

Usually ships in 2-5 days

0

36

Cub Cadet KH-41-153-01

O-Ring, Lower Oil Fill Tube

$

$

Not available

37

Cub Cadet KH-12-123-16

Tube Oil Fill

$

$

Not available

Cub Cadet KH-41-518-20

Lead, Blue 6"

Note: (not shown)

$

$

Not available
