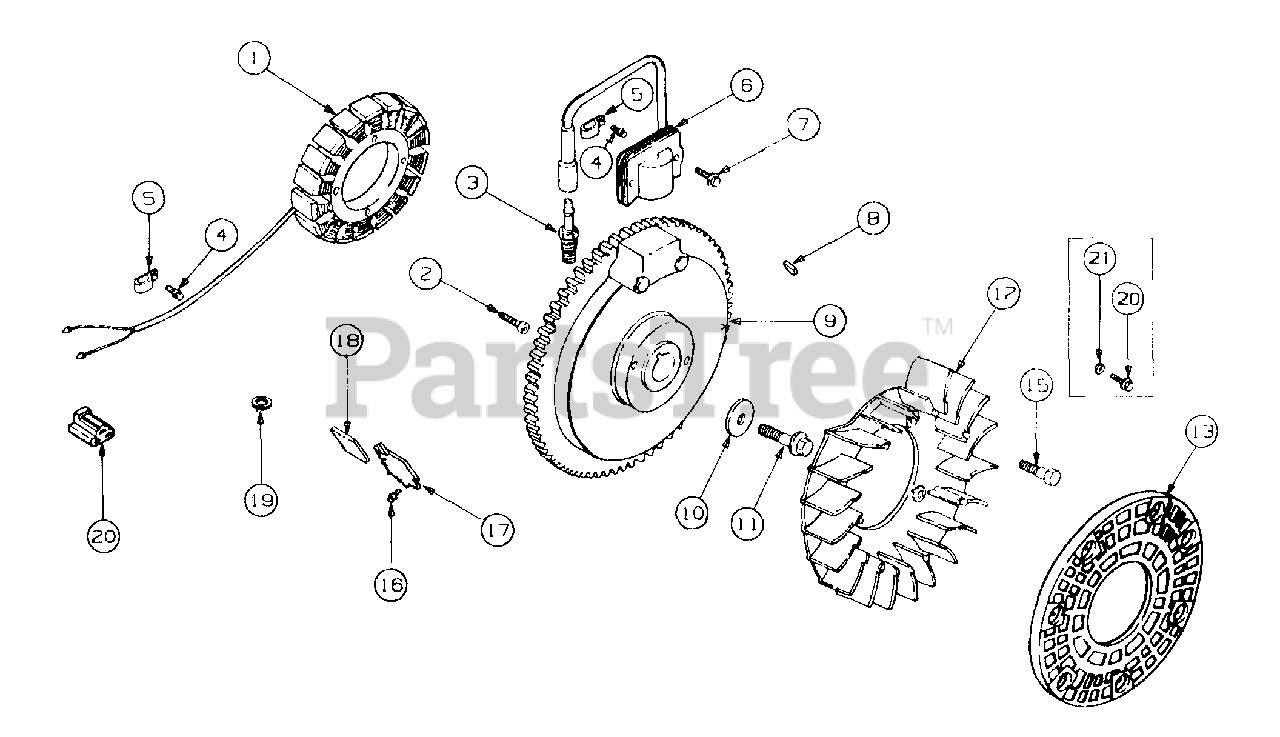

2130 (136-212F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Ignition/Electrical Parts Diagram

Garden Tractor

Ignition/Electrical Parts Diagram

  • Title

1

Cub Cadet KH-237878

Kit, Stator

Note: (Incl. KH-25-452-01)_

$149.99

$

In Stock, Qty 7

0

2

Cub Cadet KH-X-67-51

Screw Stator Mntg M5 x 0.8 x 25
(Superseded to KH-25-086-97-S)

$3.49

$

Usually ships in 2-5 days

0

3

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-M-0545010

Screw, Stator Harness Clip, M5 x .8 x 10

$

$

Not available

5

Cub Cadet KH-X-728-1

Clip, Cable

$

$

Not available

6

Cub Cadet KH-12-584-04

Module, Ignition

$32.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-M-0545020

Screw, Ignition Module, M5 x .8 x 20

$

$

Not available

8

Cub Cadet KH-X-42-15

Key

$

$

Not available

9

Cub Cadet KH-12-025-28

Flywheel Assy

$

$

Not available

10

Cub Cadet KH-12-468-03

Washer, Flywheel

$

$

Not available

11

Cub Cadet KH-12-086-14

Screw, Flywheel, M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, Qty 12

0

12

Cub Cadet KH-12-157-03

Fan
(Superseded to KH-12-157-03-S)

$

$

Not available

13

Cub Cadet KH-12-162-05

Screen, Grass

$

$

Not available

15

Cub Cadet KH-25-086-47

Bolt Shoulder M6 x 1 x 16

$

$

Not available

16

Cub Cadet KH-M-0639016

Screw, Rectifier, M6 x 1.0 x 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-41-403-09

Rectifier-Regulater
(Superseded to KH-25-403-37-S)

$

$

Not available

18

Cub Cadet KH-236602

Connector, 3 contact
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, only 1 left!

0

19

Cub Cadet KH-X-22-11

Washer, Lock, 1/4

$

$

Not available

20

Cub Cadet KH-236473

Connector, 3 contact

$

$

Not available

21

Spacer

Note: (Replaced by KH-25-086-47)

$

$

Not available

?22

Screw

Note: (Replaced by KH-25-086-47)

$

$

Not available

Cub Cadet KH-12-518-01

Lead, White, Ground to Kill, 19"

Note: (18 gauge, fully insulated push-on tab and insulated push-on tab terminals)

$

$

Not available

Cub Cadet KH-12-518-29

Lead, Black 6"

$

$

Not available

Cub Cadet KH-25-518-05

Lead, Black, 5"

Note: (14 gauge, uninsulated push-on tab terminals)

$

$

Not available

Cub Cadet KH-M-0445010

Screw, Hex Flange, M4 x .7 x 10

Note: (To attach harness to baffle)

$

$

Currently unavailable
