2130 (136-212F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Fuel System Spec. 22531 Parts Diagram

Garden Tractor

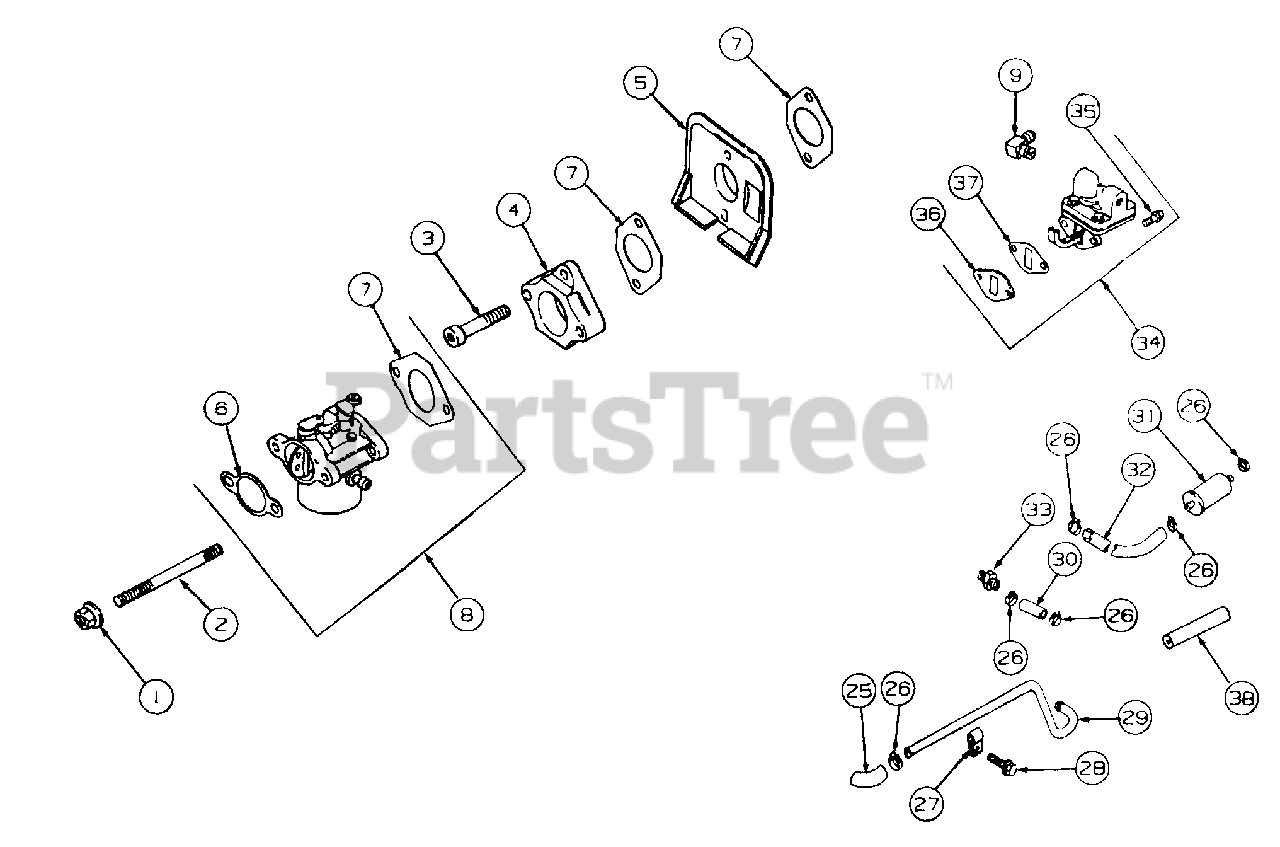

Fuel System Spec. 22531 Parts Diagram

  • Title

1

Cub Cadet KH-M-0641060

Nut, Hex Flange, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 7

0

2

Cub Cadet KH-M-0629116

Stud, Carburetor, M6 x 1.0 x 116

$

$

Currently unavailable

3

Cub Cadet KH-M-0644035

Screw, Socket Cap, M6 x 1.0 x 35
(Superseded to KH-M-644035-S)

$2.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-12-029-04

Adapter, Carburetor

$

$

Not available

5

Cub Cadet KH-12-265-04

Deflector, Heat
(Superseded to KH-12-265-08-S)

$9.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-041-02

Gasket, Air Filter

$2.99

$

In Stock, Qty 5

0

7

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 14

0

8

Cub Cadet KH-12-853-93

Kit, Carb w/Gskts

Note: [Includes 6, 7(1), KH-12-454-01(Wire Tie) and KH-25-452-20 (Terminal)]

$

$

Not available

9

Cub Cadet KH-25-155-02

Connector, Hose, 90°.

$

$

Not available

25

Cub Cadet KH-12-353-07

Line,90° Fuel
(Superseded to KH-25-111-36-S)

$7.99

$

In Stock, only 1 left!

0

26

Cub Cadet KH-X-426-9

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

27

Cub Cadet KH-X-728-1

Clip, Tube

$

$

Not available

28

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x .8 x 10

$

$

Not available

29

Cub Cadet KH-12-353-11

Line, Metal Fuel

$

$

Not available

30

Cub Cadet KH-12-353-01

Line, Fuel, 1 1/4
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

31

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

32

Cub Cadet KH-25-353-08

Line, Fuel, 5"
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

33

Cub Cadet KH-X-380-1

Connector, Straight Hose
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

34

Cub Cadet KH-12-559-01

Kit, Fuel Pump
(Superseded to KH-12-559-02-S)

Note: (Incl. 35, 36, 37)

$48.99

$

In Stock, Qty 6

0

35

Cub Cadet KH-M-0645020

Screw, Hex Flange, M6 x 1 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

36

Cub Cadet KH-12-112-05

Spacer, Fuel Pump

$

$

Not available

37

Cub Cadet KH-25-041-09

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

In Stock, only 1 left!

0

38

Cub Cadet 723-3066-24

Insulation Fuel Line

$16.99

$

In Stock, only 3 left!

0

Cub Cadet KH-12-757-02

Kit, Float Assembly

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-12-757-03

Kit, Carburetor Repair

Note: (Includes the following 4 items) (Not Shown)

$35.99

$

In Stock, Qty 8

0

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 14

0

Cub Cadet KH-12-041-02

Gasket, Air Filter Base

$2.99

$

In Stock, Qty 5

0

Cub Cadet KH-12-041-05

Gasket, Fuel Bowl

$

$

Not available

Cub Cadet KH-12-041-06

Gasket, Bowl Screw
(Superseded to KH-25-041-03)

$

$

Not available

Cub Cadet KH-12-757-08

Kit, Choke Repair

Note: (Includes the following 5 items) (Not Shown)

$

$

Not available

Cub Cadet KH-12-144-17

Shaft Assembly, Choke
(Superseded to KH-12-757-08)

$

$

Not available

Cub Cadet KH-12-146-12

Plate, Choke

$

$

Not available

Cub Cadet KH-12-158-01

Bushing, Choke
(Superseded to KH-12-158-01-S)

$12.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-173-06

Cap, Choke Lever

$

$

Not available

Cub Cadet KH-25-086-27

Screw, Valve (2)

$

$

Not available

Cub Cadet KH-12-757-33

Kit, Solenoid Repair

Note: (Includes the following 3 items) (Not Shown)

$

$

Not available

Cub Cadet KH-12-041-06

Gasket, Bowl Screw
(Superseded to KH-25-041-03)

$

$

Not available

Cub Cadet KH-12-454-01

Tie, Wire
(Superseded to KH-12-454-03-S)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-20

Terminal

$

$

Not available

Cub Cadet KH-M-05610101

Screw, Thrd Forming M5 x .8 x 10

Note: (Not Shown)

$

$

Currently unavailable

Cub Cadet KH-X-22-11

Washer, Lock 1/4"

Note: (Not Shown)

$

$

Not available
