2130 (135-212F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Transmission Controls Parts Diagram

Garden Tractor

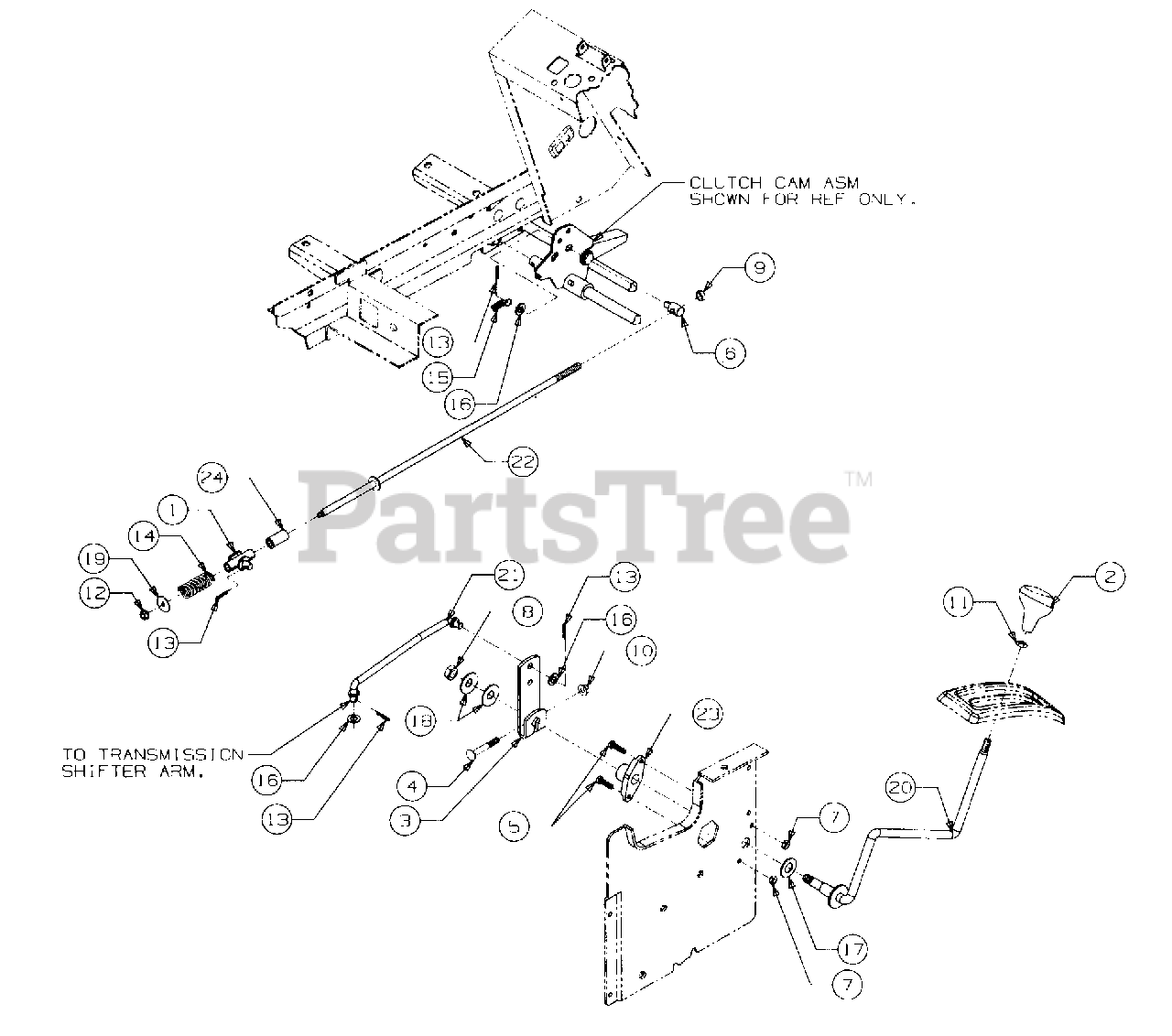

Transmission Controls Parts Diagram

  • Title
1

Cub Cadet 603-0272

Pivot Assy, Sleeve

$

$

Not available

2

Cub Cadet 631-0009

Knob, Shifter
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

3

Cub Cadet 703-2368

Bracket, Gear Shift

$

$

Not available

4

Cub Cadet 710-0449

Bolt, Carriage, 5/16-18 x 2.25 Lg GR5
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 Lg

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 711-3397

Ferrule, Adjustment

$

$

Not available

7

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0346

Nut, Hex Jam Lock, 1/2-20

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

10

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

12

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0104

Pin, Internal Cotter, 5/16 Dia x 1.12 Lg

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 732-3094

Spring, Compression, .63 ID x 2.0 Lg
(Superseded to 932-3094)

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-3118

Spring , Extension, .38 OD x 1.44 Lg

$10.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0185

Washer, Flat, .406 x.75 x .063 Thk

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0237

Washer, Flat, .64 x 1.25 x .100 Thk

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-3022

Washer, Bell
(Superseded to 936-3022)

$5.49

$

In Stock, only 2 left!

0

19

Cub Cadet 736-3092

Washer, Flat, .265 x 1.0 x .030 Thk Hdn

$3.99

$

In Stock, Qty 9

0

20

Cub Cadet 747-3212

Lever, Speed Control

$

$

Not available

21

Cub Cadet 747-3215

Rod, Gear Shift

$

$

Not available

22

Cub Cadet 747-3217

Rod, Clutch Adjustment

$

$

Not available

23

Cub Cadet 748-3053

Bushing, Control Lever

$

$

Not available

24

Cub Cadet 750-0684

Spacer, .39 ID x .63 OD x 1.25 Lg

Note: (Used on Serial no. 272,500 & below)

$

$

Not available
