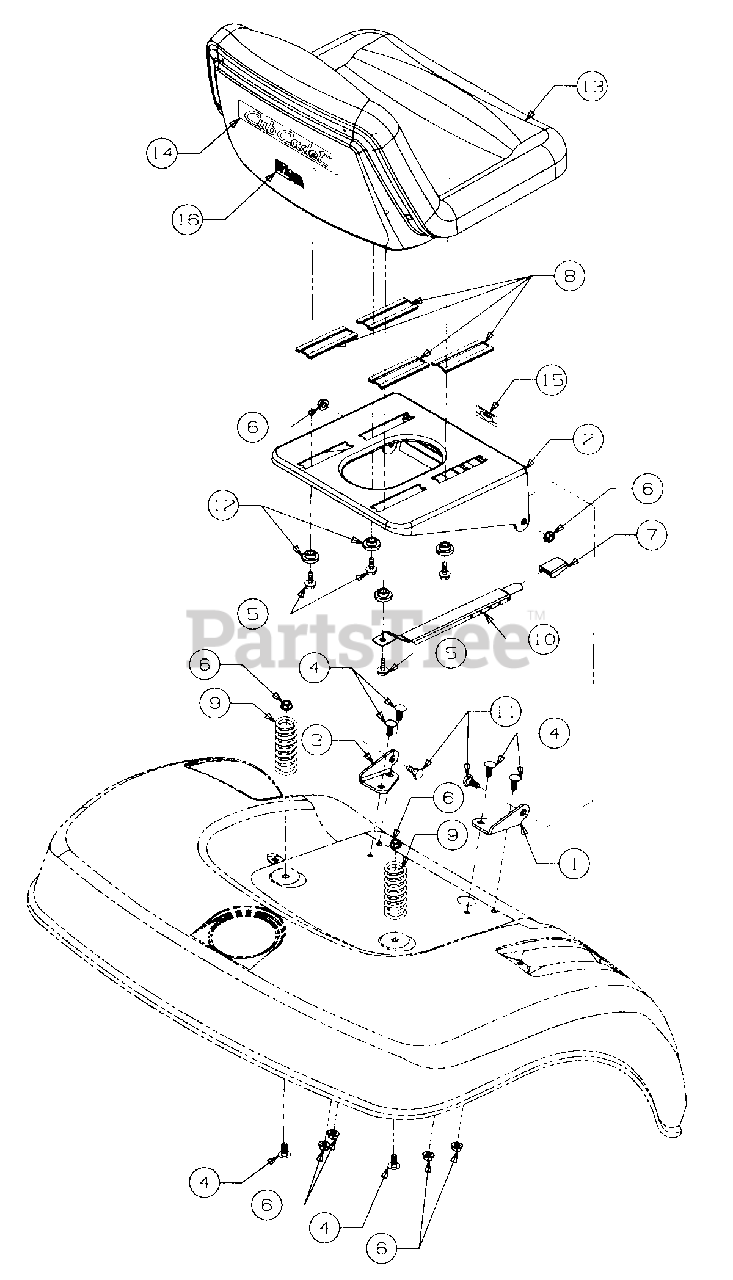

2130 (135-212F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Seat and Support Parts Diagram

Garden Tractor

Seat and Support Parts Diagram

  • Title
1

Cub Cadet 703-2394

Bracket, RH Seat Pivot

Variations

Cub Cadet 703-2394-0498

PIVOT BRACKET (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2394-0716

BRACKET-RH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

Cub Cadet 703-2395

Seat Base
(Superseded to 703-2395A)

Variations

Cub Cadet 703-2395-0498

USE 703-2395B-0716 BASE-SEAT - OLD CUB YELLOW (0498)

$120.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2395-0716

USE 703-2395B-0716 BASE-SEAT - CUB YELLOW-99 (0716)

$120.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2477

Bracket, LH Seat Pivot

Variations

Cub Cadet 703-2477-0498

USE 703-2477-0716 BRACKET-LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2477-0716

BRACKET-LH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75 Lg

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0601

Screw, Hex Wash Sf-Tapp 5/16-18 x .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 720-0190

Knob, Seat Adjuster
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

Cub Cadet 731-3154

Slide, Seat

$

$

Not available

9

Cub Cadet 732-3080

Spring, Compression 1.90 x 2.4 Lg
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

10

Cub Cadet 732-3098

Adjuster, Seat

$

$

Not available

11

Cub Cadet 738-0140

Bolt, Shoulder

$5.99

$

In Stock, Qty 15

0

12

Cub Cadet 738-0372

Spacer, Shoulder
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

13

Cub Cadet 757-3003

Seat, Medium Back
(Superseded to 759-04299)

$

$

Not available

14

Cub Cadet 777-1713

Graphic, Seat Back Script

$

$

Not available

15

Cub Cadet 777-1716

Graphic, Seat Adjuster

$

$

Not available

16

Cub Cadet 777-2041

Graphic, Made in USA
(Superseded to 777D01782)

$

$

Not available
