2130 (134-212F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Implement Lift Hanger Parts Diagram

Garden Tractor

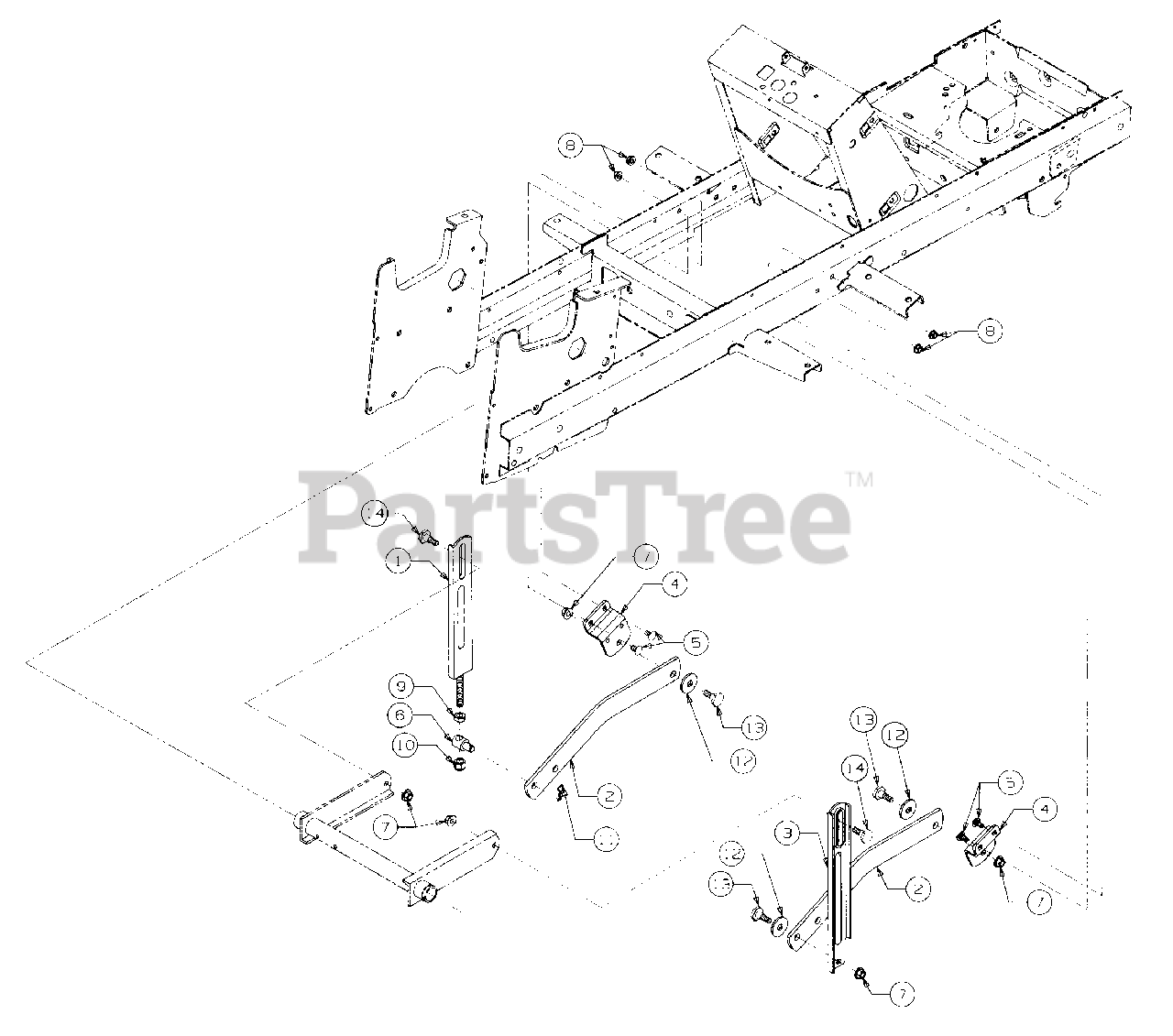

Implement Lift Hanger Parts Diagram

  • Title

1

Cub Cadet 603-0058

Bracket, LH Hanger
(Superseded to 603-0058-0716)

Variations

Cub Cadet 603-0058-0716

BRACKET ASSY - CUB YELLOW-99 (0716)

$75.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2233

Link, Lift

$

$

Not available

3

Cub Cadet 703-2234

Bracket, RH Hanger

Variations

Cub Cadet 703-2234-4021

BRACKET ASSY - CUB YELLOW 2 (4021)

$

$

Not available

$

$

4

Cub Cadet 703-2456

Bracket, Lift

$

$

Not available

5

Cub Cadet 710-0260

Bolt, Carriage, 5/16-18 x .62 Lg
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 711-3319

Ferrule, Adjustment
(Superseded to 911-3319)

$

$

Not available

7

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 7

0

10

Cub Cadet 712-3083

Nut, Hex Top Nylon Lock 1/2-13

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0145

Pin, Internal Cotter, .092 Dia x 1.63 Lg

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-3125

Washer, Flat, .50 x 1.5 x .15 Thk

$

$

Not available

13

Cub Cadet 738-0507B

Bolt, Shoulder

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 738-0430

Bolt, Shoulder

$11.99

$

In Stock, only 2 left!

0
