212902-0127-E1 - Briggs & Stratton Vertical Engine Carburetor, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

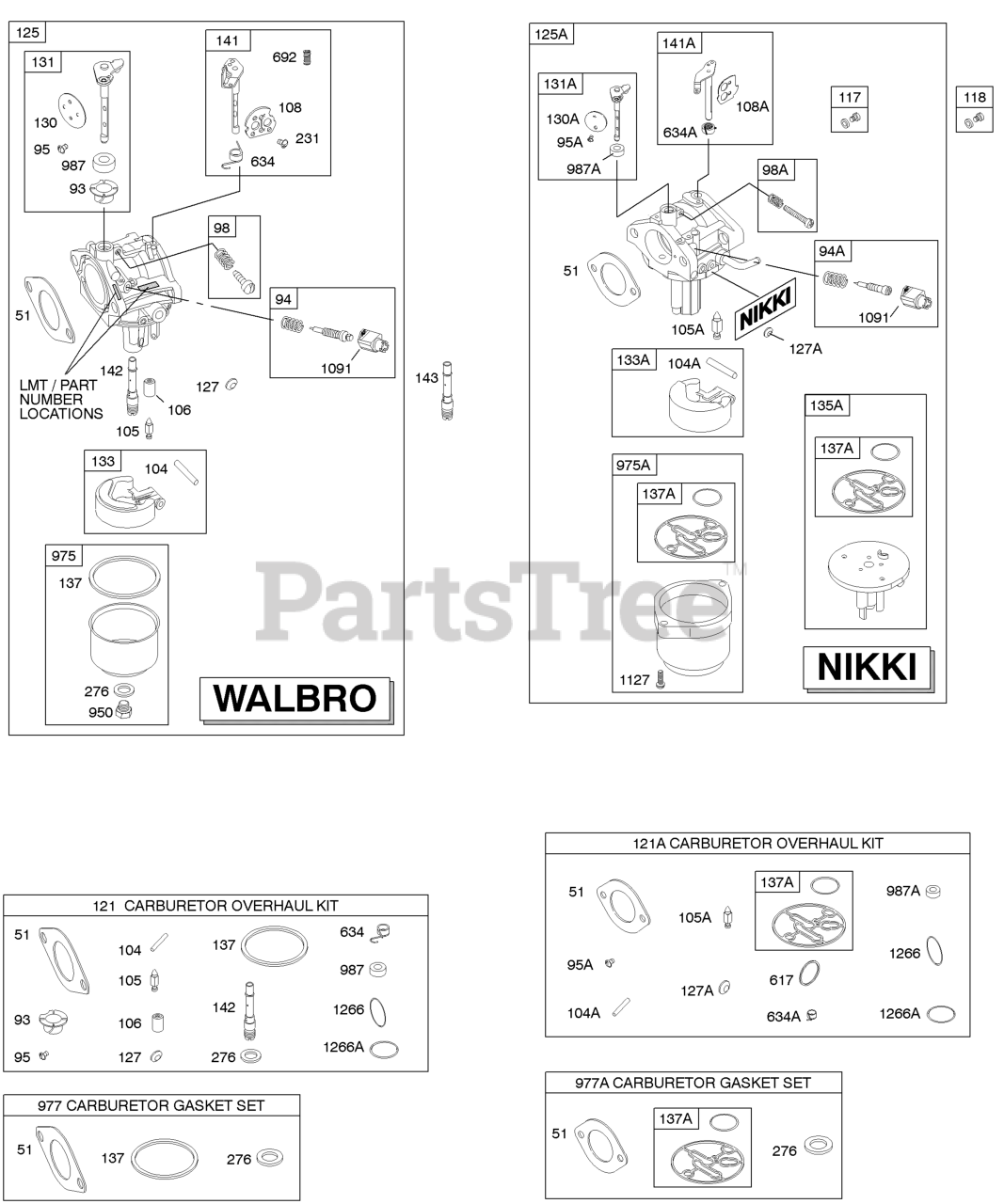

Carburetor, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Kit-Idle Mixture
(Superseded to 794176)

Note: (Walbro)

$21.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 695425

Kit-Idle Mixture
(Superseded to 793610)

Note: (Nikki)

$20.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve) (Walbro)

$3.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve) (Nikki)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Kit-Idle Speed

Note: (Walbro)

$10.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

Note: (Nikki)

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Float Hinge

Note: (Walbro)

$4.99

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

Note: (Nikki)

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

Note: (Walbro)

$6.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

Note: (Nikki)

$15.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (Pump Feed Carburetor)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 691227

Valve-Choke

$9.49

$

In Stock, only 2 left!

0

117

Briggs & Stratton 699897

Jet-Main

Note: (Standard)

$17.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 699898

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 790031

Kit-Carburetor Overhaul
(Superseded to 796185)

Note: (Walbro)

$112.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 698787

Kit-Carburetor Overhaul
(Superseded to 796184)

Note: (Nikki)

$63.99

$

In Stock, Qty 19

0

125A

Briggs & Stratton 791266

Carburetor
(Superseded to 593432)

Note: (Nikki)(Gravity Feed)

$137.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 694524

Plug-Welch

Note: (Walbro)

$4.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 690727

PLUG, Welch

Note: (Nikki)

$4.49

$

In Stock, only 2 left!

0

130

Briggs & Stratton 790024

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 698774

VALVE, Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 790901

Kit-Throttle Shaft

$38.99

$

In Stock, only 1 left!

0

131A

Briggs & Stratton 698776

KIT, Throttle Shaft

Note: (Nikki)

$39.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

Note: (Walbro)

$13.99

$

In Stock, only 4 left!

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

Note: (Nikki)

$28.99

$

In Stock, Qty 8

0

135A

Briggs & Stratton 792022

Tube-Fuel Transfer

Note: (Nikki)

$49.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

Note: (Nikki)

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 790902

Kit-Choke Shaft

$33.99

$

In Stock, only 1 left!

0

141A

Briggs & Stratton 698778

KIT, Choke Shaft

Note: (Nikki)

$32.99

$

In Stock, only 1 left!

0

231

Briggs & Stratton 691636

Screw

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 16

0

634

Briggs & Stratton 690802

Spring/Seal Assembly

$9.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 698779

Spring/Seal Assembly

$8.99

$

In Stock, only 1 left!

0

692

Briggs & Stratton 691301

Spring-Detent

$4.99

$

Usually ships in 2-12 days

0

950

Briggs & Stratton 691657

Screw-Float Bowl

Note: (Bottom Of Bowl)

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

Note: (Walbro)

$

$

Not available

975A

Briggs & Stratton 698783

BOWL, Float

Note: (Nikki)

$30.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

Note: (Walbro)

$67.99

$

In Stock, only 2 left!

0

977A

Briggs & Stratton 790032

Gasket Set-Carburetor
(Superseded to 796184)

Note: (Nikki)

$63.99

$

In Stock, Qty 19

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 698777

Seal-Throttle Shaft
(Superseded to 690998)

Note: (Nikki)

$7.99

$

In Stock, only 2 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl) (Nikki)

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 19

0
