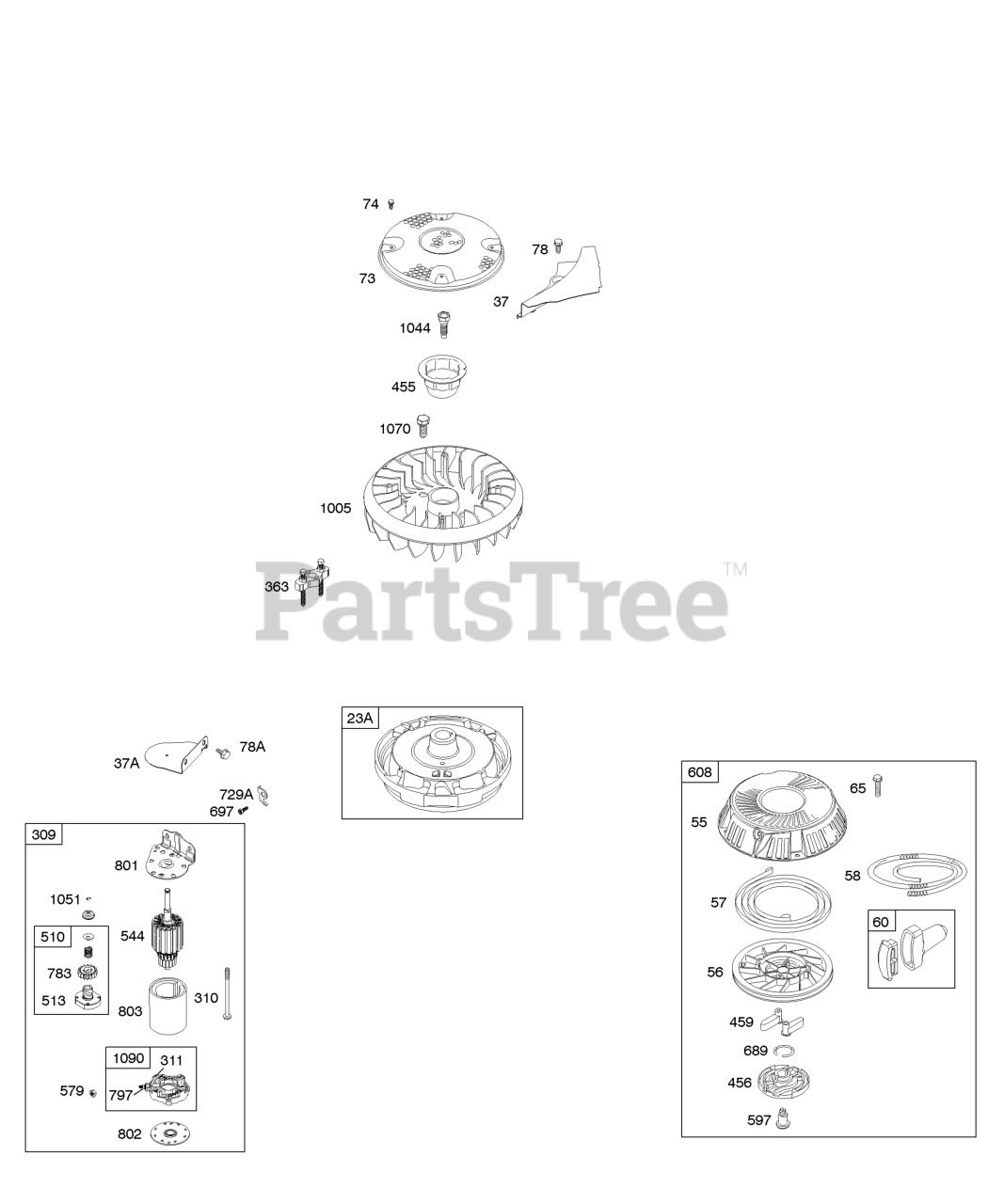

212702-0116-E1 - Briggs & Stratton Vertical Engine Electric Starter, Flywheel, Rewind Starter Parts Diagram

Vertical Engine

Electric Starter, Flywheel, Rewind Starter Parts Diagram

  • Title

23A

Briggs & Stratton 698283

Flywheel

Note: (Rewind Starter)

$187.99

$

Usually ships in 2-12 days

0

37A

Briggs & Stratton 697626

GUARD, Flywheel

Note: (Electric Start)

$11.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 695130

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 695129

PULLEY, Starter

$29.99

$

In Stock, Qty 9

0

57

Briggs & Stratton 695131

SPRING, Rewind Starter

$17.99

$

In Stock, only 2 left!

0

58

Briggs & Stratton 695132

ROPE, Starter

$8.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 494212

Grip-Starter Rope
(Superseded to 493926)

$

$

Not available

65

Briggs & Stratton 697725

SCREW

Note: (Rewind Starter)

$4.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 697384

Screen-Rotating

Note: Used Before Code Date 03031700

$30.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 697133

Screen-Rotating

Note: Used After Code Date 03031600

$

$

Not available

74

Briggs & Stratton 697897

Screw

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

78A

Briggs & Stratton 690364

SCREW

Note: (Flywheel Guard) (Electric Start)

$3.99

$

In Stock, only 2 left!

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 695113

CUP, Flywheel

$15.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 695128

PLATE, Pawl Friction

$12.99

$

In Stock, Qty 19

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 20+

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 3 left!

0

544

Briggs & Stratton 692034

Armature-Starter

$82.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 6

0

608

Briggs & Stratton 695058

Starter-Rewind
(Superseded to 591606)

$95.99

$

In Stock, Qty 20+

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$3.99

$

In Stock, Qty 6

0

729A

Briggs & Stratton 691224

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter

Note: (Not Serviced Separately, Order Starter Motor 693551)

$

$

Not available

1005

Briggs & Stratton 697360

Fan-Flywheel
(Superseded to 796200)

Note: Used Before Code Date 03031700

$42.99

$

In Stock, only 2 left!

0

1005

Briggs & Stratton 699044

Fan-Flywheel
(Superseded to 796200)

Note: Used After Code Date 03031600

$42.99

$

In Stock, only 2 left!

0

1044

Briggs & Stratton 698139

SCREW

Note: (Flywheel)

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Flywheel Fan)

$3.99

$

In Stock, Qty 6

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0
