21200 - Toro 30" TimeMaster Walk-Behind Mower (SN: 413000000 - 414514168) Side Discharge Chute Assembly Parts Diagram

30" TimeMaster Walk-Behind Mower

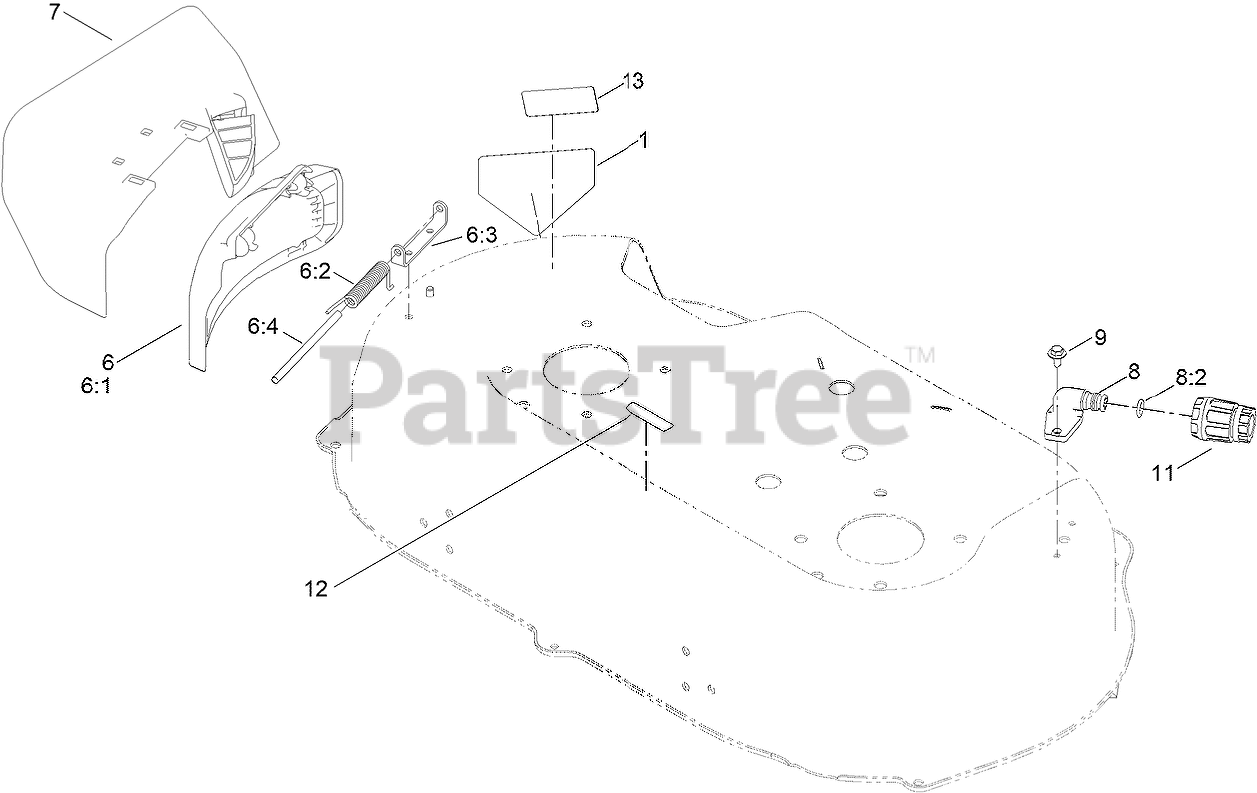

Side Discharge Chute Assembly Parts Diagram

  • Title

1

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

6

Toro 133-2630

SIDE DEFLECTOR SERVICE ASM

$25.99

$

Usually ships in 3-6 days

0

6:1

Toro 125-5091

DEFLECTOR-SIDE

$14.99

$

Usually ships in 3-6 days

0

6:2

Toro 127-0721

SPRING-TORSION, COVER

$4.99

$

In Stock, only 1 left!

0

6:3

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

6:4

Toro 99-5291

See Supercession: 136-8672
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

7

Toro 121-2319

CHUTE-DISCHARGE, SIDE

$29.99

$

In Stock, only 1 left!

0

8

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 5

0

8:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

9

Toro 139-1700

SCREW-HWH, THD ROLL

$1.49

$

Usually ships in 3-6 days

0

11

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

Usually ships in 3-6 days

0

12

Toro 120-9570

DECAL-WARNING

$1.49

$

In Stock, only 4 left!

0

13

Toro 125-5092

DECAL-PLACEMENT, FOOT

$2.49

$

Usually ships in 3-6 days

0
