21200 - Toro 30" TimeMaster Walk-Behind Mower (SN: 410174255 - 411599999) Housing Assembly Parts Diagram

30" TimeMaster Walk-Behind Mower

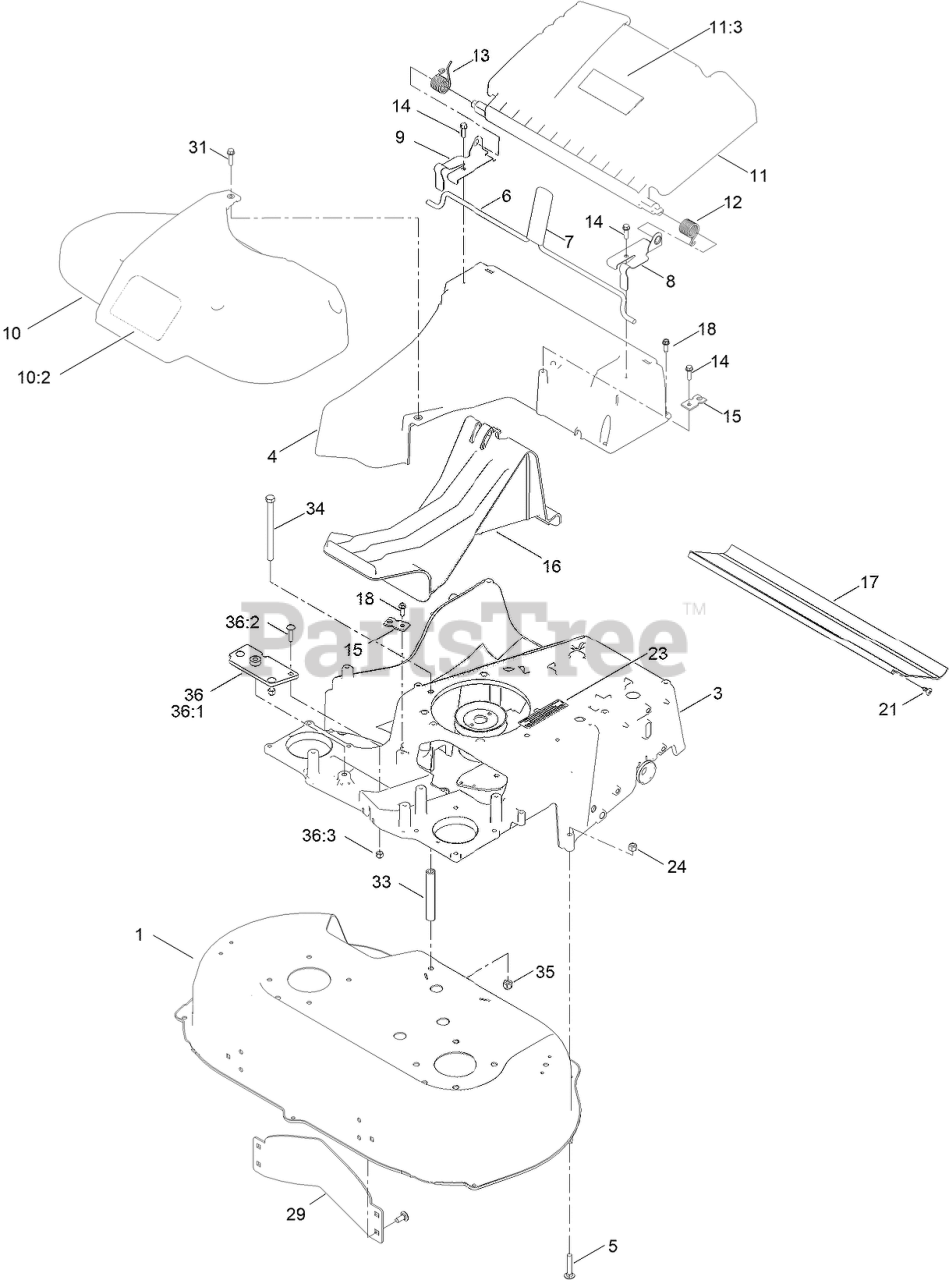

Housing Assembly Parts Diagram

  • Title
1

Toro 136-5873

HOUSING ASM

$328.99

$

In Stock, only 1 left!

0

3

Toro 138-5390-01

FRAME-30"

$211.99

$

Usually ships in 3-6 days

0

4

$58.99

$

Usually ships in 3-6 days

0

5

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0

6

Toro 139-5415

ROD-RELEASE, HANDLE

$15.99

$

Usually ships in 3-6 days

0

7

Toro 120-7018

GRIP-LEVER

$3.99

$

In Stock, only 1 left!

0

8

Toro 121-9114

BRACKET-DOOR, LH

$19.99

$

Usually ships in 3-6 days

0

9

Toro 121-9115

BRACKET-DOOR, RH

$19.99

$

Usually ships in 3-6 days

0

10

Toro 139-5408

BELT COVER ASM

$53.99

$

In Stock, only 2 left!

0

10:2

Toro 121-2391

DECAL-COVER, BELT

$6.49

$

Usually ships in 3-6 days

0

11

Toro 120-7048

REAR DEFLECTOR ASM

$38.99

$

In Stock, only 4 left!

0

11:3

Toro 131-4514

DECAL-WARNING

$2.49

$

In Stock, only 4 left!

0

12

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, Qty 11

0

13

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

14

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

15

Toro 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, Qty 5

0

16

Toro 120-5225

PLUG-MULCH

$29.99

$

In Stock, Qty 13

0

17

Toro 120-6241

SHIELD-TRAILING

$15.99

$

In Stock, Qty 20+

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

23

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 130-2352-01

BAFFLE-CONTROL

$27.99

$

Usually ships in 3-6 days

0

31

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

33

Toro 1-323283

SPACER-SHIELD

$9.49

$

In Stock, Qty 9

0

34

Toro 139-5409

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

35

Toro 137-3087

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

36

Toro 125-5072

FRAME PLATE KIT

$49.99

$

Usually ships in 3-6 days

0

36:1

Toro 125-2542

PLATE-FRAME

$44.99

$

Usually ships in 3-6 days

0

36:2

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

36:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
