212 CST (86278) - Snapper String Trimmer Trimmer (Part 1) Parts Diagram

String Trimmer

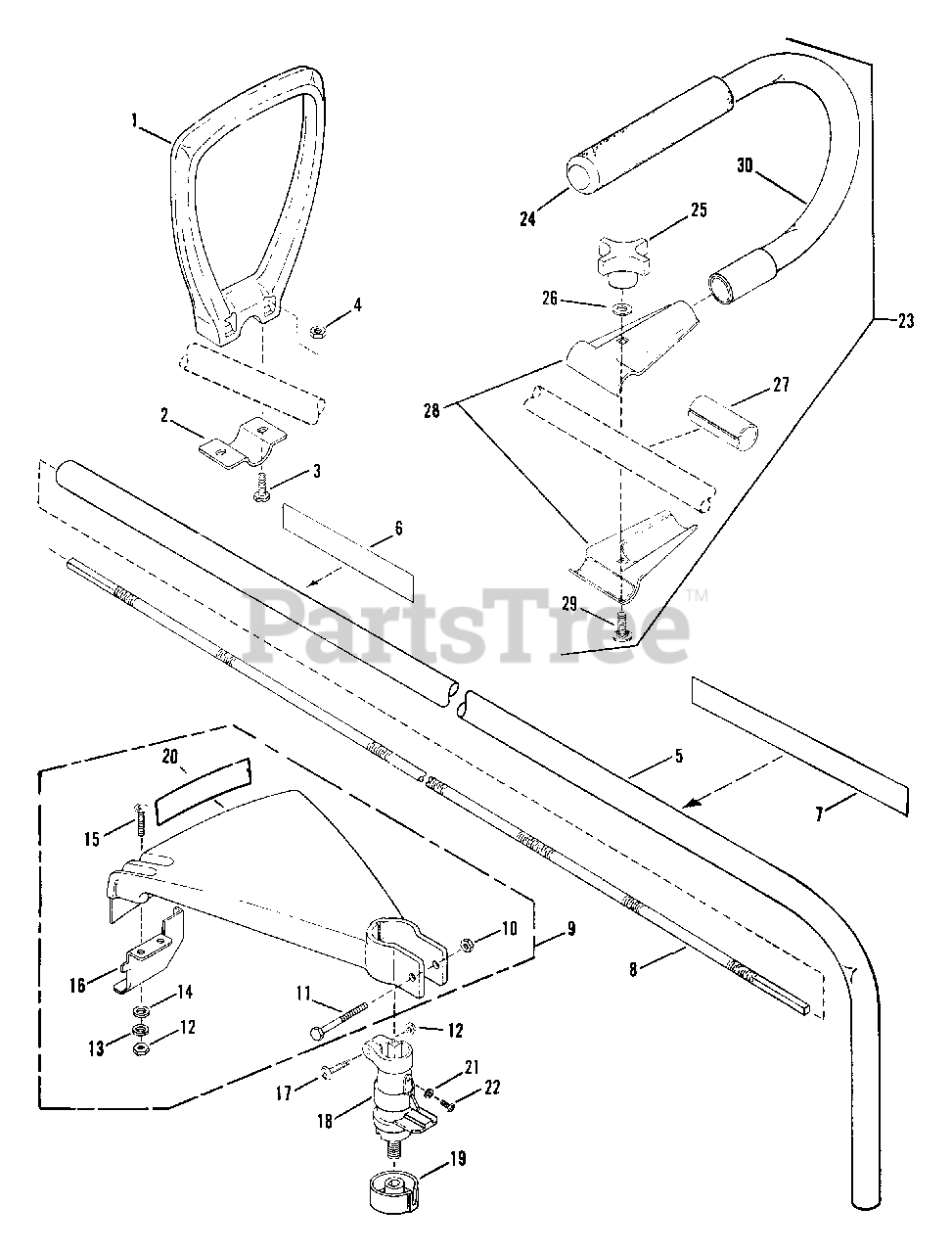

Trimmer (Part 1) Parts Diagram

  • Title

1

Snapper 7042575

DELTA HANDLE ASSM'Y., Model 212CST & P212CST

Note: Incl. items 2, 3, & 4)

$

$

Not available

2

Snapper 7042576

BRACKET

$

$

Not available

3

Snapper 7042577

SCREW, M5 x 22mm

$

$

Not available

4

Snapper 7042180

NUT, M5 Hex

$

$

Currently unavailable

5

Snapper 7057502

TUBE/DECAL ASSM'Y., Model P212CST, 212CST & 213CST

Note: (Incl.item 6)

$

$

Currently unavailable

6

Snapper 7015980

LABEL-WARNING

$

$

Currently unavailable

7

Snapper 7018917

LABEL, Model 212CST

$

$

Currently unavailable

Snapper 7018918

LABEL, Model 213CST

$

$

Currently unavailable

Snapper 7018678

LABEL, Model P212CST

$

$

Currently unavailable

8

Snapper 7042419

SHAFT, Flex (53.96" x .245", .2" Square Ends x 1.38")

$

$

Not available

9

Snapper 7042550

SHIELD ASSM'Y.

Note: (Incl.items 10 thru 16 and item 20)

$

$

Not available

10

Snapper 7042504

NUT, #M6 Hex

$

$

Currently unavailable

11

Snapper 7042551

SCREW, M6 x 50mm HH

$

$

Currently unavailable

12

Snapper 7042503

NUT, #10-24 Hex

$

$

Currently unavailable

13

Snapper 7042557

WASHER, Lock

$

$

Currently unavailable

14

Snapper 7042555

WASHER, Flat

$

$

Currently unavailable

15

Snapper 7042554

SCREW, Pan Hd. #10-24 x 3/4"

$

$

Currently unavailable

16

Snapper 7042556

HOUSING - KNIFE

$

$

Currently unavailable

17

Snapper 7042502

SCREW, #10-24 x 1"

$

$

Currently unavailable

18

Snapper 7042501

SPINDLE HOUSING ASSM'Y.

$

$

Not available

19

Snapper 7042516

COLLAR, Spindle

$

$

Not available

20

Snapper 7015083

LABEL

$

$

Not available

21

Snapper 7042106

WASHER, Flat

$

$

Not available

22

Snapper 7042146

SCREW, M4 x 9.5mm Pan Hd.

$

$

Not available

23

Snapper 51768

ASSM'Y, "J" HANDLE & Mounting

Note: (Including 24 thru 30)

$

$

Currently unavailable

24

Snapper 7015070

GRIP

$

$

Currently unavailable

25

Snapper 7015087

KNOB

$

$

Currently unavailable

26

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7015777

ISO MOUNT

$

$

Currently unavailable

28

Snapper 7051554

CLAMP ASSM'Y.

$

$

Currently unavailable

29

Snapper 7090861

CARRIAGE BOLT, 5/16-18 x 1-3/4"

$

$

Not available

30

Snapper 7051767

ASSM'Y "J" Handle

Note: (Incl.item 24)

$

$

Currently unavailable
