212 (190-212-100) - Cub Cadet Triple Bagger Cover Assembly Parts Diagram

Triple Bagger

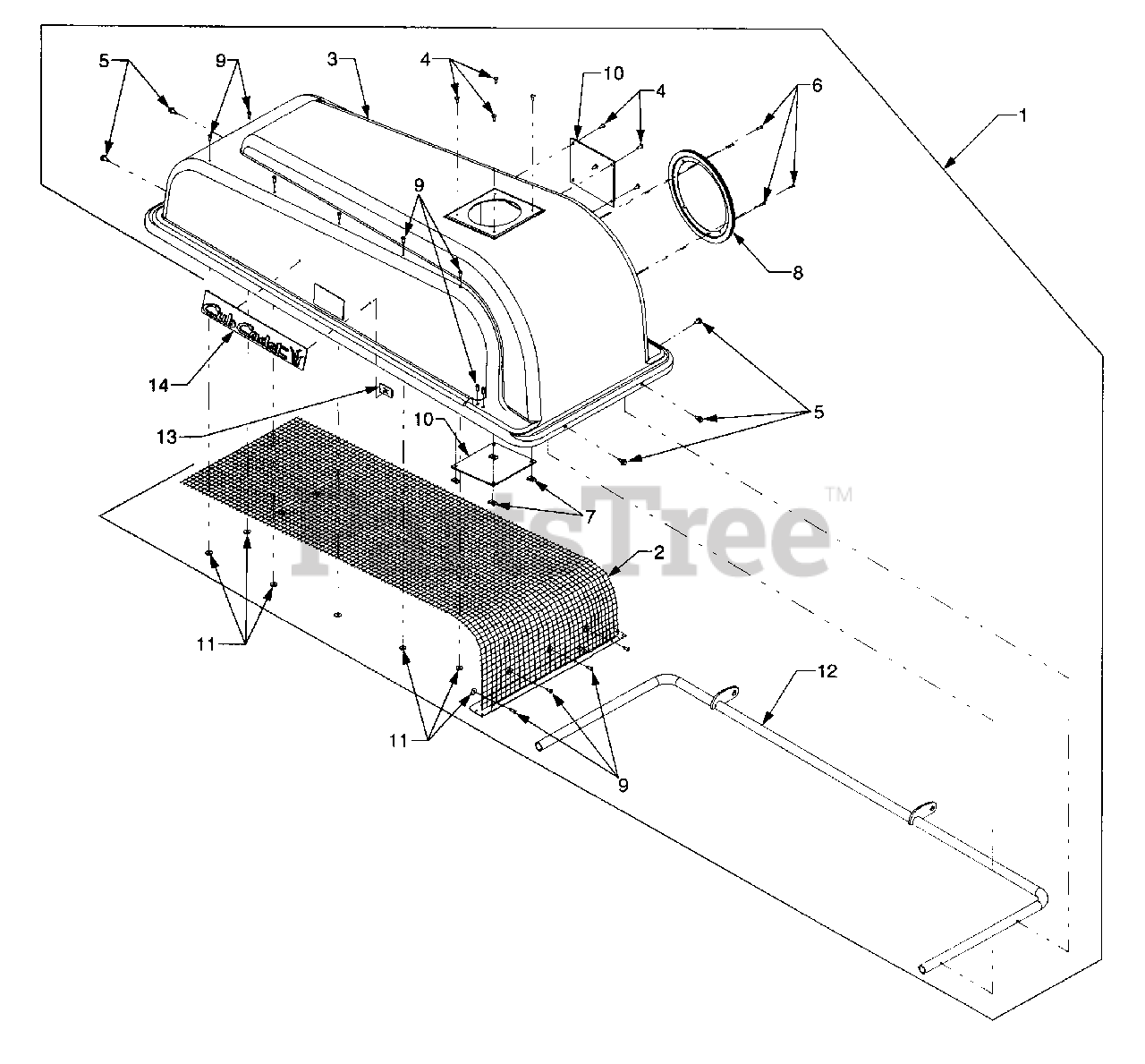

Cover Assembly Parts Diagram

  • Title

1

Cub Cadet 664-3000

Cover Assembly -

Note: Includes Ref. Nos. 2 thru 12

$

$

Not available

Cub Cadet 777S30250

Label, Warning

$

$

Not available

2

~N/A

Screen and Mtng. Brkt. Ass'y.

Note: Order P/N 664-3000 Cover Assembly

$

$

Not available

3

~N/A

Cover

Note: Order P/N 664-3000 Cover Assembly

$

$

Not available

4

Cub Cadet 710-0473

Screw, Truss Hd. Mach. 10-24 x .50

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0896

Screw, Hex Wash. Hd. Tapp 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0936

Screw, Truss Hd. Tapp 6-20 x .625

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0147

Speed Nut, 'U' Type, 10-24

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 723-0412

Seal, Tube, 7.10 ID

$32.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 728-0123

Rivet, Pop, .187 x .45
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 731-0824A

Plate, Plastic

$

$

Not available

11

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$5.49

$

In Stock, Qty 11

0

12

Cub Cadet 749-0747-0637

Bracket Assembly, Cover Hinge

$

$

Not available

13

Cub Cadet 726-3040

Speed Nut, Push On

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 777D03361

Decal, Cub Cadet

$

$

Not available
