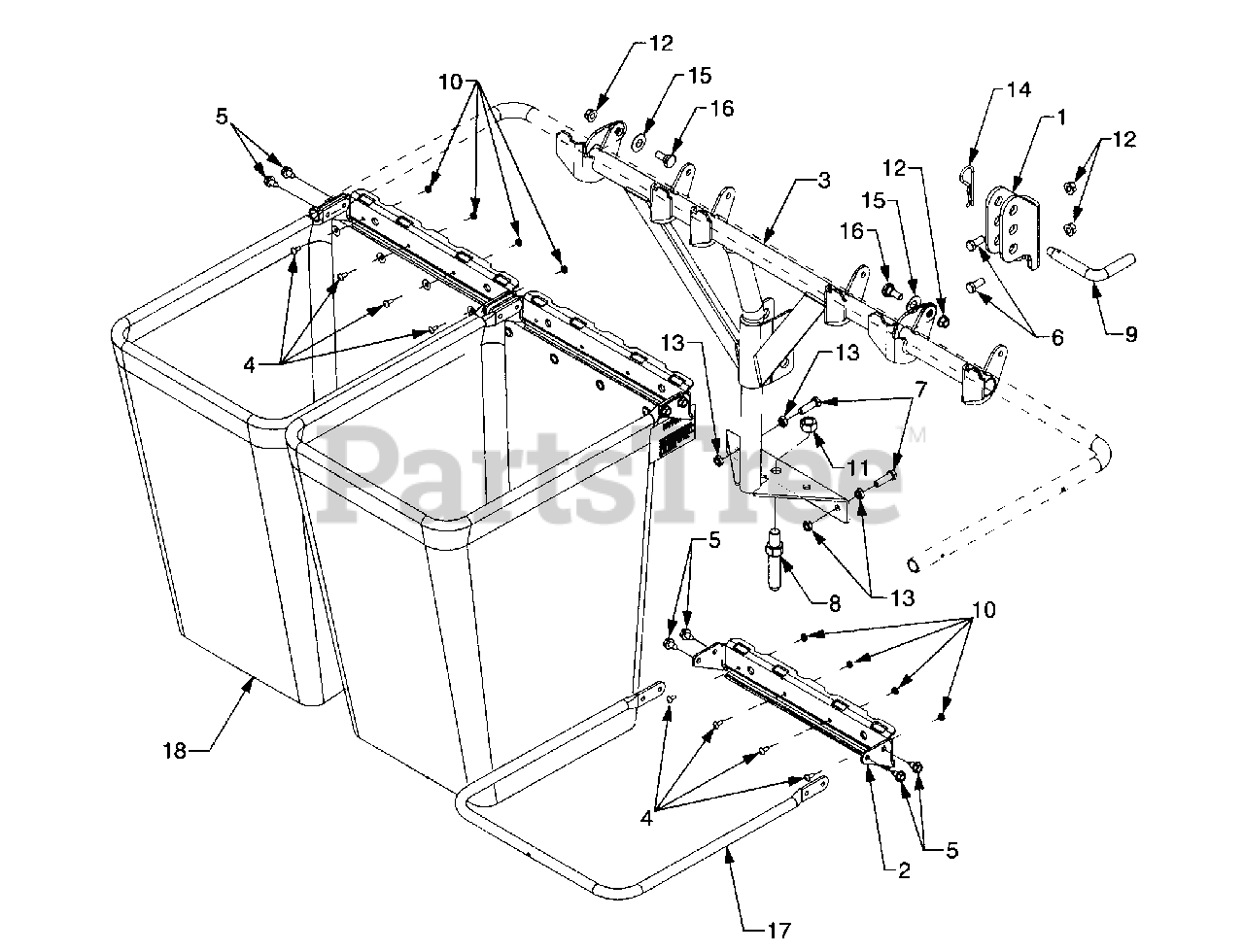

212 (190-212-100) - Cub Cadet Triple Bagger Bag, Frame And Support Parts Diagram

Triple Bagger

Bag, Frame And Support Parts Diagram

  • Title

1

Cub Cadet 13026-0637

Bracket, Hitch

$60.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 17201A-0637

Bracket, Bag Frame Hanger

$71.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0787-0637

Mounting Tube Assembly
(Superseded to 903-0787A)

$

$

Not available

4

Cub Cadet 710-0473

Screw, Truss Hd. Mach. 10-24 x .5

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3001

Screw, Hex Cap 3/8-16 x .880 GR5

$7.49

$

In Stock, Qty 9

0

7

Cub Cadet 710-3005

Screw, Hex Cap 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 711-1290

Stud, Adapter

$86.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-3285

Pin, Right Angle Clevis

$34.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0272

Nut, Hex Sems, 10-24

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0337

Nut, Hex, 5/8-18 GR5.

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

14

Cub Cadet 714-0117

Pin, Internal

$4.49

$

In Stock, Qty 16

0

15

Cub Cadet 736-0255

Washer, Belleville, .51 x 1.14 x .04

$4.99

$

In Stock, only 3 left!

0

16

Cub Cadet 738-0380

Screw, Shoulder .50 x .27: 3/8-16

$7.99

$

In Stock, only 1 left!

0

17

Cub Cadet 749-0745A-0637

Tube, Grass Bag Frame

$

$

Not available

18

Cub Cadet 764-0251

Bag, Grass Catcher
(Superseded to 964-0251)

$87.99

$

In Stock, Qty 15

0
