21199 - Toro 30" TimeMaster Walk-Behind Mower (SN: 410243167 - 411509999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

30" TimeMaster Walk-Behind Mower

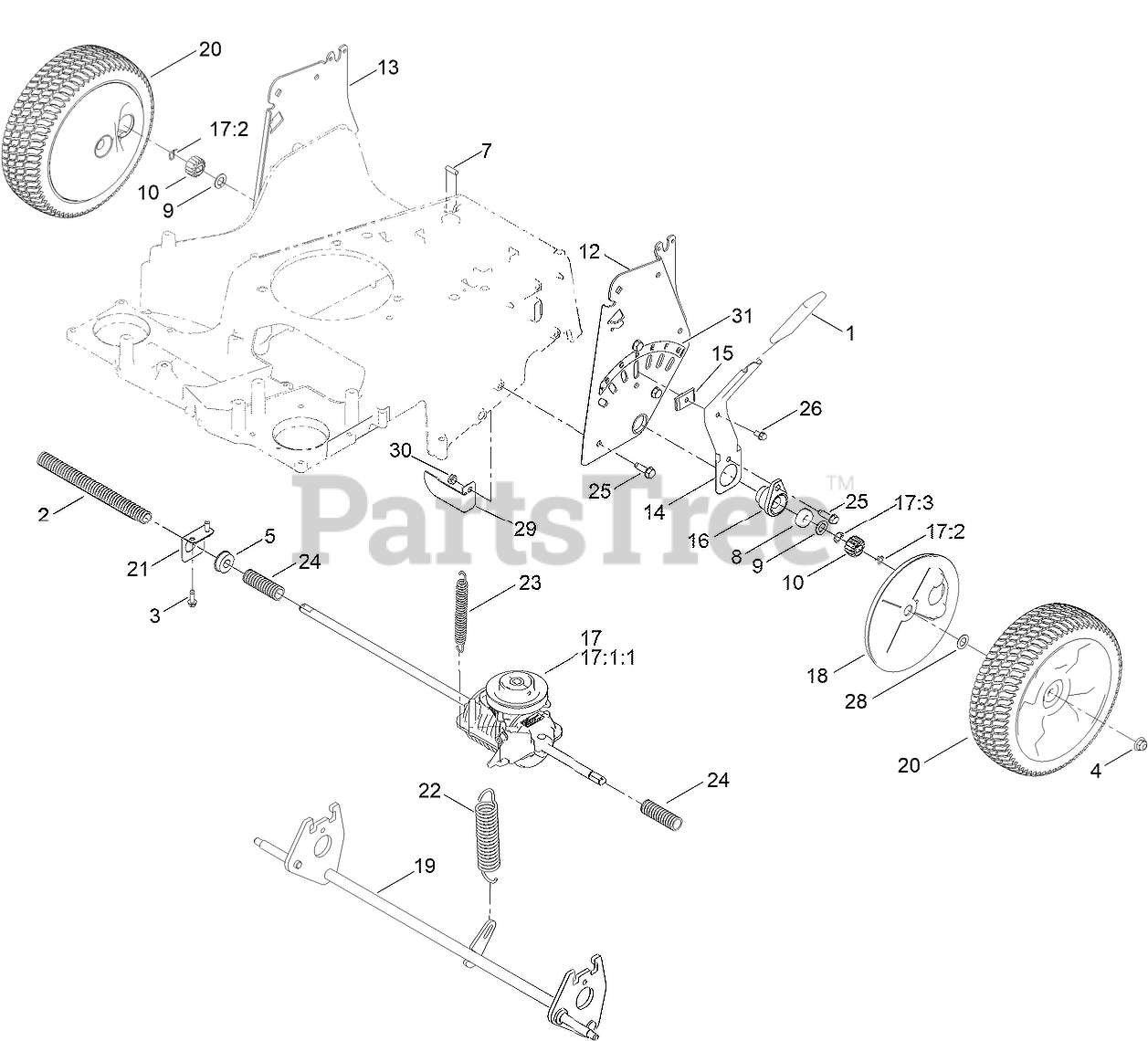

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 137-4796

GRIP-LEVER, LIFT

$5.99

$

In Stock, Qty 14

0

2

Toro 121-5799

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 19

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 9

0

5

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

7

Toro 106-5681

PIN-STOP

$3.49

$

In Stock, only 4 left!

0

8

Toro 133-2603

BEARING-BALL

$27.99

$

In Stock, Qty 20+

0

9

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

10

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

12

Toro 120-3342-03

PLATE-HOC, LH

$29.99

$

In Stock, only 2 left!

0

13

Toro 120-3343-03

PLATE-HOC, RH

$29.99

$

Usually ships in 3-6 days

0

14

Toro 120-5208

ARM-SPRING, REAR

$18.99

$

In Stock, Qty 20+

0

15

Toro 120-5209

KEY-SPRINGARM

$3.99

$

In Stock, Qty 20+

0

16

Toro 136-5929

RETAINER-BEARING

$9.49

$

Usually ships in 3-6 days

0

17

Toro 131-9665

TRANSMISSION KIT

$193.99

$

In Stock, Qty 20+

0

17:1:1

Toro 130-2370

TRANSMISSION PULLEY KIT

Note: Not illustrated

$29.99

$

In Stock, Qty 20+

0

17:2

Toro 130-2369

PIN-SNAP

$1.49

$

In Stock, Qty 20+

0

17:3

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

18

Toro 120-6233

COVER-GEAR

$13.99

$

In Stock, only 3 left!

0

19

Toro 140-4048

REAR AXLE ASM

$94.99

$

In Stock, Qty 5

0

20

Toro 125-2509

10 INCH WHEEL GEAR ASM

$77.99

$

In Stock, Qty 20+

0

21

Toro 138-3233

MOUNT-BEARING

$5.49

$

In Stock, Qty 20+

0

22

Toro 120-7026

SPRING-EXTENSION

$14.99

$

In Stock, Qty 9

0

23

Toro 120-7027

SPRING-EXTENSION

$9.49

$

In Stock, Qty 20+

0

24

Toro 121-5800

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 8

0

25

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

26

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

28

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

29

Toro 138-5338

BRACKET-STOP

$6.99

$

In Stock, Qty 12

0

30

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

31

Toro 125-2497

DECAL-HOC, REAR

$4.99

$

Usually ships in 3-6 days

0
