21199 HD - Toro 30" TimeMaster Walk-Behind Mower, Home Depot (SN: 413000000 - 999999999) Front Wheel and Height-of-Cut Assembly Parts Diagram

30" TimeMaster Walk-Behind Mower, Home Depot

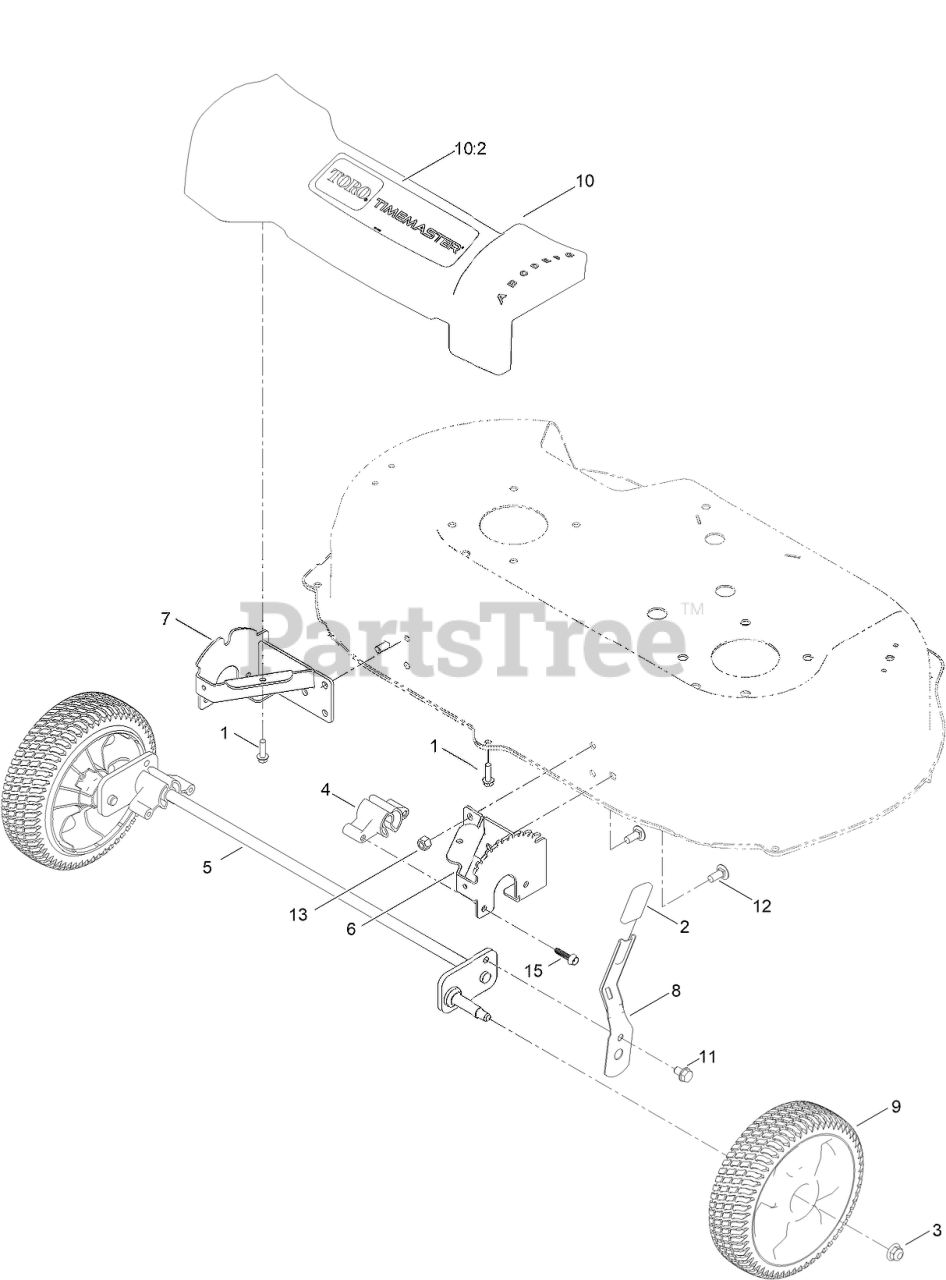

Front Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

2

Toro 120-9535

GRIP-LEVER

$1.99

$

In Stock, only 4 left!

0

3

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

4

Toro 136-5875

BUSHING-PIVOT, FRONT

$

$

Not available

5

Toro 139-1753

FRONT AXLE ASM

$44.99

$

In Stock, only 4 left!

0

6

Toro 120-7037-03

PLATE-HOC, LH

$25.99

$

In Stock, Qty 20+

0

7

Toro 120-7038-03

PLATE-HOC, RH

$25.99

$

In Stock, only 1 left!

0

8

Toro 120-7043

ARM-SPRING

$13.99

$

In Stock, Qty 10

0

9

Toro 125-2510

8 INCH WHEEL ASM

$31.99

$

In Stock, Qty 6

0

10

Toro 125-5027

FRONT COVER ASM

$49.99

$

In Stock, only 1 left!

0

10:2

Toro 121-2392

DECAL-COVER, FRONT

$16.99

$

Usually ships in 3-6 days

0

11

Toro 700057

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

12

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

15

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 6

0
