21180 - Toro 36cm Walk-Behind Mower, Electric (SN: 312000001 - 312999999) (2012) 36CM LAWN MOWER ASSEMBLY Parts Diagram

36cm Walk-Behind Mower, Electric

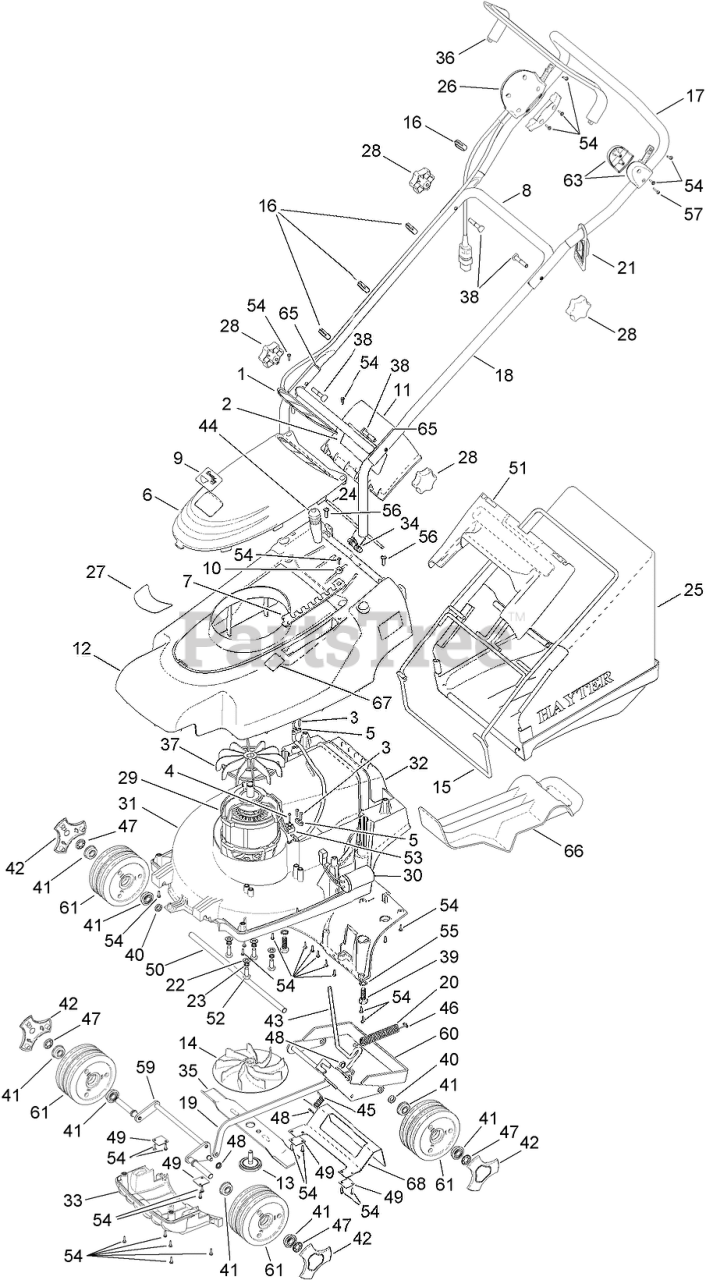

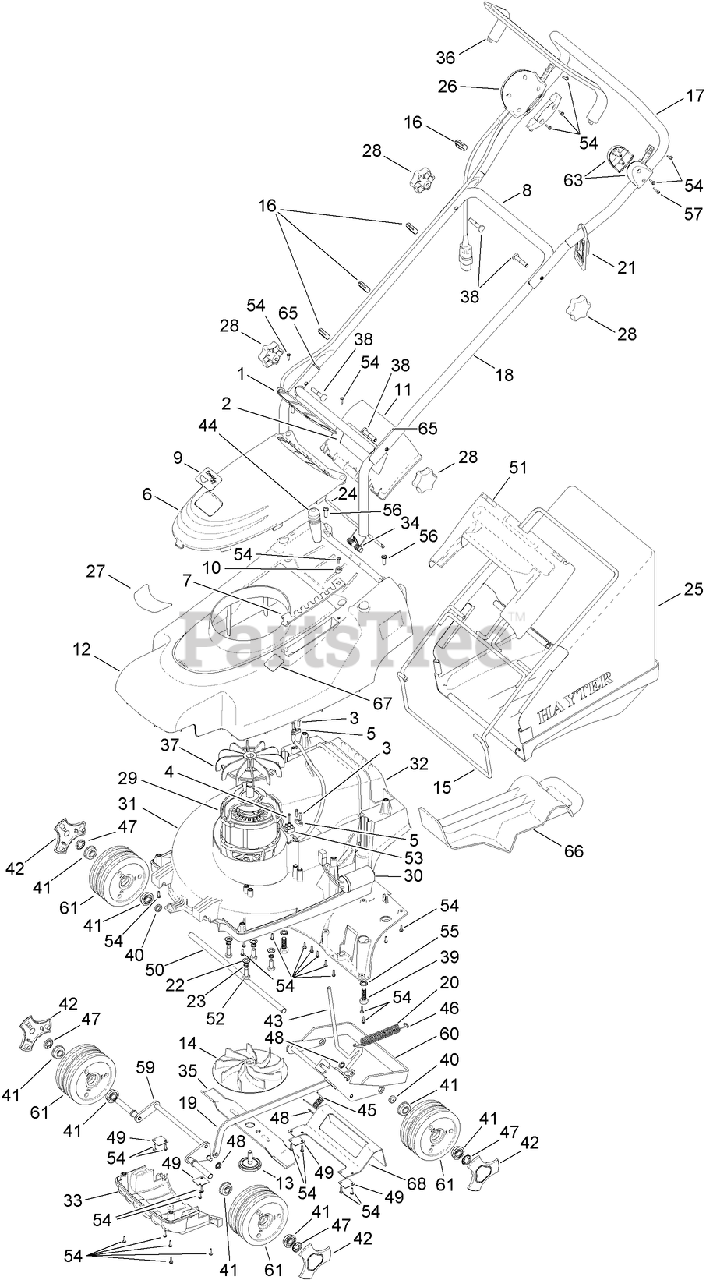

36CM LAWN MOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 111-0074

VENT MESH ASM

$

$

Currently unavailable

2

Toro 111-5173

DECAL-SAFETY, ELECTRIC

$

$

Currently unavailable

3

$

$

Not available

4

$

$

Not available

5

Toro 111-0117

CLAMP-CABLE

$

$

Currently unavailable

6

Toro 111-3932

COVER-MOTOR

$

$

Currently unavailable

7

Toro 111-0539

PLATE-HOC

$

$

Currently unavailable

8

Toro 111-0540

HANDLEBAR-LOWER
(Superseded to 111-0540-03)

$

$

Not available

9

Toro 111-4977

DECAL-TORO

$

$

Currently unavailable

10

Toro 111-0543

COVER-SCREW, HOC

$

$

Currently unavailable

11

Toro 111-1042

DEFLECTOR-REAR

$

$

Not available

12

Toro 111-3936

COVER-TOP

$

$

Currently unavailable

13

Toro 100013

BOLT-FIXING, CUTTERBAR (NYLON)
(Superseded to 111-9966)

$

$

Not available

14

Toro 100014

CARRIER-CUTTERBAR

$

$

Currently unavailable

15

Toro 100016

FRAME-GRASSBAG
(Superseded to 100016-03)

$

$

Not available

16

Toro 100023

CLIP-CABLE

$

$

Currently unavailable

17

Toro 100024

HANDLEBAR-UPPER

$

$

Currently unavailable

18

Toro 100025

HANDLEBAR-MIDDLE
(Superseded to 100025-03)

$

$

Not available

19

Toro 100037

ROD-CONNECTING

$

$

Currently unavailable

20

Toro 100080

SPRING-BALANCE, COUNTER

$

$

Currently unavailable

21

Toro 100105

CLEAT-CABLE

$

$

Currently unavailable

22

Toro 100106

Sealant-Liquid

$

$

Currently unavailable

23

Toro 100119

WASHER-SPRING

$

$

Currently unavailable

24

Toro 100126

ROD-DEFLECTOR

$

$

Currently unavailable

25

Toro 111-4009

GRASSBAG

$

$

Currently unavailable

26

Toro 111-4069

SWITCH AND LEAD ASM

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Toro 480088

KNOB-HANDLEBAR

$

$

Not available

29

Toro HY100001

MOTOR
(Superseded to 111-7714)

$

$

Not available

30

Toro HY100002

CAPACITOR

$

$

Currently unavailable

31

Toro HY100003

UNDERDECK

$

$

Currently unavailable

32

Toro HY100004

THROWPLATE

$

$

Currently unavailable

33

$

$

Currently unavailable

34

Toro 111-7417

SPRING-DEFLECTOR

$

$

Not available

35

Toro HY100012

CUTTERBAR

$

$

Currently unavailable

36

Toro HY100017

ARM-BAIL

$

$

Not available

37

Toro HY100019

FAN-TOP, MOTOR

$

$

Currently unavailable

38

Toro HY100028

BOLT-HANDLEBAR
(Superseded to HY226024)

$

$

Not available

39

Toro 09392

SCREW-HH

$

$

Not available

40

Toro HY100030

SPACER-WHEEL, REAR

$

$

Currently unavailable

41

Toro HY100033

BEARING-WHEEL

$

$

Not available

42

Toro 111-4011

CAP-HUB

$1.49

$

Usually ships in 3-6 days

0

43

Toro HY100038

LEVER-HOC

$

$

Currently unavailable

44

Toro HY100039

KNOB-HOC

$

$

Currently unavailable

45

Toro HY100041

SPRING-HOC

$

$

Currently unavailable

46

Toro HY100042

PIN-SPRING, HOC

$

$

Currently unavailable

47

Toro HY100047

WASHER-STARLOCK

$

$

Currently unavailable

48

Toro HY100048

WASHER-STARLOCK, 8mm

$

$

Currently unavailable

49

Toro HY100064

PLATE-PIVOT, AXLE

$

$

Currently unavailable

50

Toro HY100068

ROD-AXLE, REAR

$

$

Currently unavailable

51

Toro HY100075

TOP-GRASSBAG

$

$

Currently unavailable

52

Toro HY100076

BOLT-MOTOR

$

$

Currently unavailable

53

Toro HY100077

BLOCK-TERMINAL

$

$

Currently unavailable

54

$

$

Not available

55

Toro HY100079

WASHER

$

$

Currently unavailable

56

Toro HY100127

SCREW-PPH, THREAD FORMING

$

$

Currently unavailable

57

Toro HY100128

SCREW-PPH

$

$

Not available

59

Toro HY100503

FRONT AXLE ASM

$

$

Currently unavailable

60

Toro HY100504

REAR AXLE ASM

$

$

Currently unavailable

61

Toro HY100505

WHEEL ASM

$

$

Currently unavailable

63

Toro HY100510

MOUNT BAIL ARM ASM

$

$

Currently unavailable

65

Toro 111-0547

PLUG-TUBE
(Superseded to 30-0160)

$

$

Not available

66

Toro 111-4377

PLUG-MULCHING

$23.99

$

Usually ships in 3-6 days

0

67

Toro 111-4782

DECAL-HOC

$

$

Currently unavailable

68

Toro 111-4915

GUARD-PLATE, AXLE

$

$

Currently unavailable
