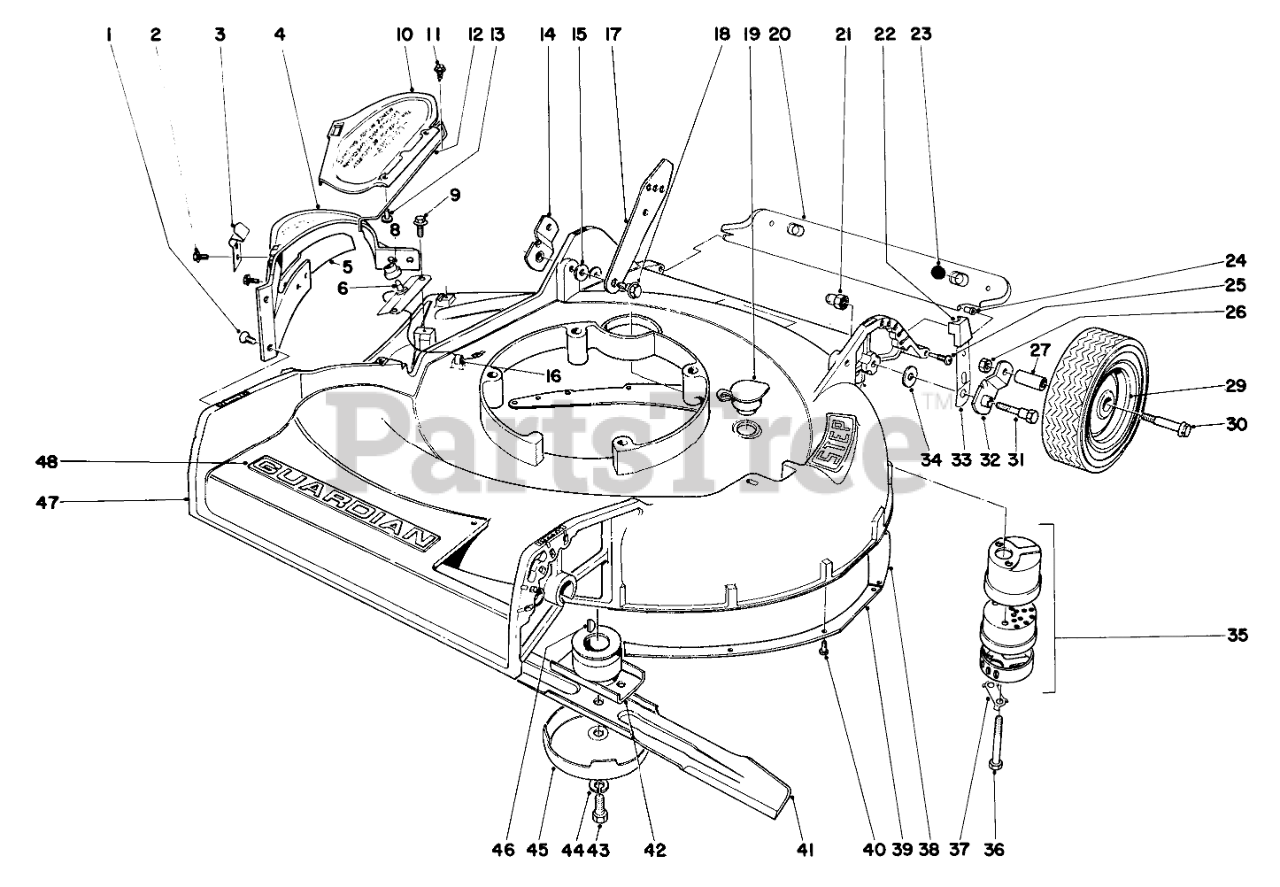

21172 - Toro Guardian Walk-Behind Mower (SN: 002000001 - 002999999) (1972) HOUSING ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 11-3010

Screw

$

$

Not available

2

Toro 32140-91

Screw

$

$

Currently unavailable

3

Toro 12-1170

Latch

$

$

Not available

4

Toro 12-1160

Deflector (Incl. Ref. Nos. 2-5)

$

$

Currently unavailable

5

Toro 10-8960

DefIector Bar

$

$

Currently unavailable

6

Toro 12-4940

Deflector Switch & Wire (Incl. Ref. No. 8)

$

$

Not available

8

Toro 12-4930

Boot Switch

$

$

Not available

9

Toro 32140-91

Screw

$

$

Currently unavailable

10

Toro 8-5760

Deflector (Incl. Ref. Nos. 12 & 13)

$

$

Currently unavailable

11

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

12

Toro 8-5250

Hinge Pin

$

$

Currently unavailable

13

Toro 3295-22

Rivet

$

$

Currently unavailable

14

Toro 8-4260

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

15

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

16

Toro 2412-9

Clip

$

$

Currently unavailable

17

Toro 8-6910

Handle Latch
(Superseded to 43-1550)

$

$

Not available

18

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

19

Toro 6-4500

WASHOUT PLUG

$

$

Not available

20

Toro 8-6060

Safety Shield (Incl. Ref. Nos. 23 & 24)
(Superseded to 28-3780)

$

$

Not available

21

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

22

Toro 8-4220

Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 20+

0

23

Toro 5-6450

SKID BUTTON

$

$

Not available

24

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

25

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

26

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

27

Toro 3-2664

Bushing

$

$

Not available

29

Toro 8-5880

Wheel Assembly (Incl. Ref. No. 27)

$

$

Not available

30

Toro 3-2652

Bolt

$

$

Not available

31

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

32

Toro 8-4280

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

33

Toro 8-3840

Spring Arm
(Superseded to 23-0400)

$

$

Not available

34

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

35

Toro 5-4769

Muffler (Incl. Ref. Nos. 36 & 37)

$62.99

$

Usually ships in 3-6 days

0

36

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

37

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

38

Toro 8-5550

Main Skirt

$

$

Currently unavailable

39

Toro 8-5570

Secondary Skirt

$

$

Currently unavailable

40

Toro 32144-12

Screw

$

$

Not available

41

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

42

Toro 8-5370

BLADE RETAINER WA

$111.99

$

Usually ships in 3-6 days

0

43

Toro 3-5246

SPECIAL SCREW

$

$

Not available

44

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

45

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

46

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

47

Toro 5-2879

Housing (Incl. Ref. Nos. 38, 39 & 40)

$

$

Currently unavailable

48

Toro 12-5020

Emblem

$

$

Currently unavailable
