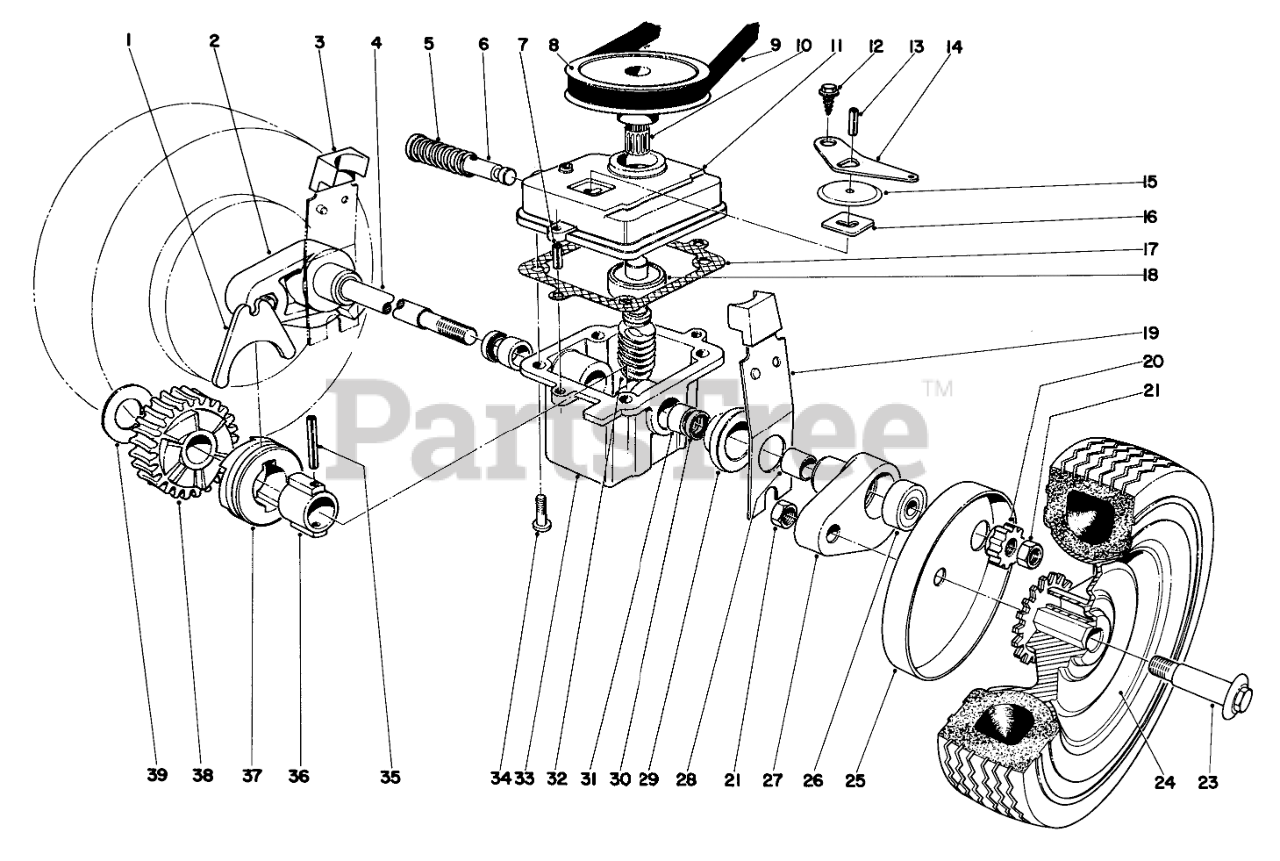

21172 - Toro Guardian Walk-Behind Mower (SN: 002000001 - 002999999) (1972) GEAR BOX ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

GEAR BOX ASSEMBLY Parts Diagram

  • Title
1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 2-6359

Pivot Arm, R.H. (Incl. Ref. No. 28)

$

$

Not available

3

Toro 8-4220

Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 8

0

4

Toro 3-0720

DRIVE SHAFT

$

$

Not available

5

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

6

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$46.99

$

Usually ships in 3-6 days

0

7

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

8

Toro 5-1615

PULLEY

$

$

Not available

9

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

10

Toro 3290-286

TOLERANCE RING

$

$

Not available

11

Toro 5-3283

Gear Case Cover (Incl. Ref. No. 18)

$

$

Not available

12

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

13

Toro 32121-23

PIN-ROLL

$

$

Not available

14

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

15

Toro 3-2615

TRANS DUST COVER

$

$

Not available

16

Toro 3-0681

LATCH PLATE

$

$

Not available

17

Toro 3-0734

GASKET

$9.99

$

Usually ships in 3-6 days

0

18

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

19

Toro 10-4380

LH SPRING ARM ASM

$

$

Not available

Toro 8-4250

Spring Arm

Note: Not Illustrated.

$

$

Not available

20

Toro 3-0738

PINION GEAR

$51.99

$

Usually ships in 3-6 days

0

21

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

23

$

$

Not available

24

Toro 11-9470

Wheel & Tire (Inc. Ref. No. 22)
(Superseded to 11-1279)

$

$

Not available

25

Toro 3-5235

WHEEL COVER

$41.99

$

Usually ships in 3-6 days

0

26

Toro 251-183

.375 RPP BALL BEARING

$65.99

$

Usually ships in 3-6 days

0

27

Toro 2-6369

Pivot Arm, L.H. (Incl. Ref. No. 28)

$104.99

$

Usually ships in 3-6 days

0

28

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

29

Toro 5-0745

End Cap
(Superseded to 92-5714)

$

$

Not available

30

Toro 253-86

Seal
(Superseded to 47-7260)

$8.49

$

In Stock, only 2 left!

0

31

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

32

Toro 5-1616

Worm Shaft

$

$

Currently unavailable

33

Toro 5-4609

Gear Case (Incl. Ref. No. 31)
(Superseded to 5-4459)

$

$

Not available

34

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

35

Toro 32121-40

PIN-SPRING
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

36

Toro 3-0721

SLEEVE

$

$

Not available

37

Toro 12-2050

Clutch Jaw
(Superseded to 19-5660)

$46.99

$

Usually ships in 3-6 days

0

38

Toro 3-0723

Worm Gear

$

$

Currently unavailable

39

Toro 3-0724

THRUST WASHER

$

$

Not available

Toro 11-8670

Gear Case Assembly Complete

Note: Not Illustrated.

$

$

Not available
