21172 - Toro Guardian Walk-Behind Mower (SN: 001000001 - 001999999) (1971) HANDLE ASSEMBLY MODEL NO. 19472 Parts Diagram

Guardian Walk-Behind Mower

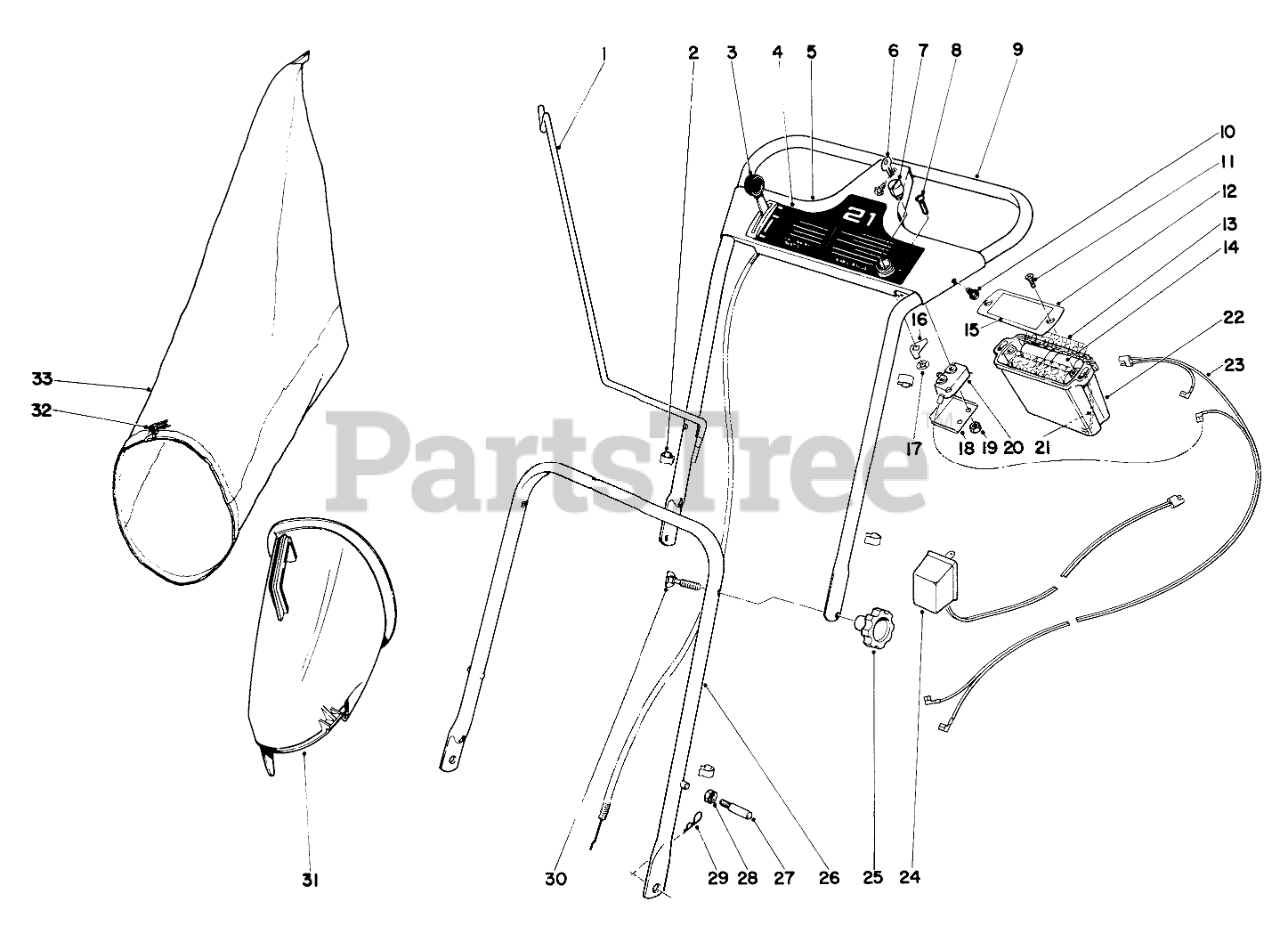

HANDLE ASSEMBLY MODEL NO. 19472 Parts Diagram

  • Title
1

Toro 5-1050

Bag Hanger Rod
(Superseded to 12-3030)

$107.99

$

Usually ships in 3-6 days

0

2

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

3

Toro 8-6440

Throttle Control
(Superseded to 46-6011)

$130.99

$

Usually ships in 3-6 days

0

4

Toro 8-6490

Decal, Escutcheon Plate

$

$

Currently unavailable

5

Toro 8-5730

Escutcheon Plate

$

$

Currently unavailable

6

$

$

Not available

7

Toro 6-8210

Key Hsg.

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 8-6380

Upper Handle

$

$

Currently unavailable

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

$

$

Not available

12

Toro 6-8230

Cover

$

$

Not available

13

Toro 6-8320

Spacer

$

$

Not available

14

Toro 11-7260

Battery Pack

$

$

Not available

15

Toro 8-5600

Decal

$

$

Currently unavailable

16

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Toro 8-2410

Cover Switch

$

$

Currently unavailable

19

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

20

Toro 6-8260

Switch

$

$

Currently unavailable

21

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

$

$

Not available

22

Toro 6-9750

Container Pack

$

$

Not available

23

Toro 6-6310

Wire Harness

$

$

Not available

24

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

25

Toro 8-6290

Handle Release Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

26

Toro 5-3019

Lower Handle

$

$

Currently unavailable

27

Toro 6-6940

Handle Pin
(Superseded to 17-9380)

$

$

Not available

28

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

29

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

30

Toro 6-6330

HANDLE SCREW

$

$

Not available

31

Toro 8-5160

Bag Attachment
(Superseded to 12-0750)

$155.99

$

Usually ships in 3-6 days

0

32

Toro 3-2781

BAG CORD FASTENER

$

$

Not available

33

Toro 5-3099

Grass Bag Kit
(Superseded to 6-6669)

$

$

Not available
