21141 - Toro 41cm Walk-Behind Mower, Electric (SN: 314000001 - 314999999) (2014) LOWER ASSEMBLY Parts Diagram

41cm Walk-Behind Mower, Electric

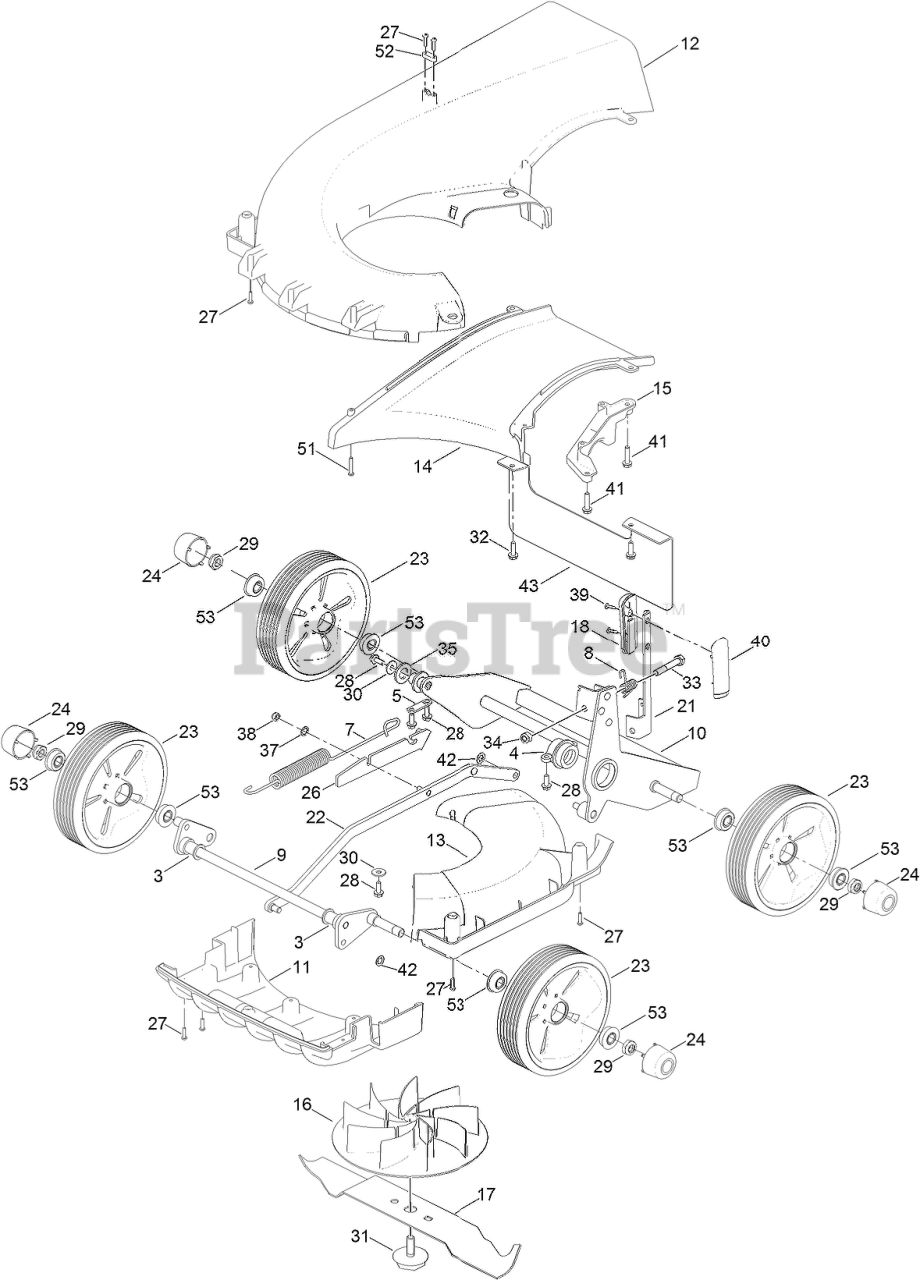

LOWER ASSEMBLY Parts Diagram

  • Title
3

Toro 410069

BEARING-AXLE, FRONT

$

$

Currently unavailable

4

Toro 410048

HOUSING-PIVOT BEARING, LH

$

$

Currently unavailable

5

Toro 219037

PLATE-SECURING

$

$

Currently unavailable

7

Toro 410050

SPRING-COUNTER BALANCE

$

$

Currently unavailable

8

Toro 111-0078

SPRING-HOC

$

$

Currently unavailable

9

Toro 111-0027

AXLE-FRONT

$

$

Currently unavailable

10

Toro 111-0068-03

FRAME-WHEEL

$

$

Not available

11

Toro 111-0034

MOULDING-FIN

$

$

Currently unavailable

12

Toro 111-0037

MOULDING-SNAIL DECK

$

$

Currently unavailable

13

Toro 111-0038

MOULDING-ACCESS, SNAIL DECK

$

$

Currently unavailable

14

Toro 111-0039

MOULDING-THROW PLATE

$

$

Currently unavailable

15

Toro 111-0050

MOUNT-BEARING

$

$

Not available

16

Toro 111-0053

MOULDING-MOUNT, ELECTRIC BLADE

$

$

Currently unavailable

17

Toro 111-0054

CUTTERBAR-ELECTRIC

$

$

Currently unavailable

18

Toro 111-0055

KNOB-HOC, RH

$

$

Currently unavailable

21

Toro 111-0059

LEVER-HOC

$

$

Currently unavailable

22

Toro 111-0063

ROD-CONNECTING BAR

$

$

Currently unavailable

23

Toro 111-4036

WHEEL ASM

$40.99

$

Usually ships in 3-6 days

0

24

Toro 111-0066

CAP-WHEEL, CENTER

$

$

Currently unavailable

26

Toro 111-0073

MOUNT-SPRING

$

$

Currently unavailable

27

$

$

Not available

28

Toro 09365

SCREW-TAPTITE

$

$

Currently unavailable

29

Toro 111-0119

NUT-NYLOC

$

$

Currently unavailable

30

Toro 09262

WASHER

$

$

Not available

31

Toro 111-0099

BOLT-FIXING, BLADE

$

$

Currently unavailable

32

Toro 09575

SCREW-TAPTITE

$

$

Not available

33

$

$

Currently unavailable

34

Toro 09441

NUT-HEX, NI

$

$

Not available

35

Toro 09491

WASHER-PLAIN

$

$

Not available

37

Toro 09472

WASHER-PLAIN

$

$

Not available

38

Toro 09438

NUT-NYLOC

$

$

Not available

39

$

$

Not available

40

Toro 111-0105

KNOB-HOC, LH

$

$

Currently unavailable

41

Toro 09364

SCREW-HH

$

$

Not available

42

Toro 0201086

WASHER-STARLOCK

$

$

Not available

43

Toro 111-4952-03

GUARD-REAR

$

$

Not available

51

$

$

Currently unavailable

52

Toro 111-0117

CLAMP-CABLE

$

$

Currently unavailable

53

Toro 111-1010

Bearing
(Superseded to HY100033)

$

$

Not available
