21132 - Toro 41cm Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE, CHASSIS, HANDLE AND BAG ASSEMBLY Parts Diagram

41cm Recycler Walk-Behind Mower

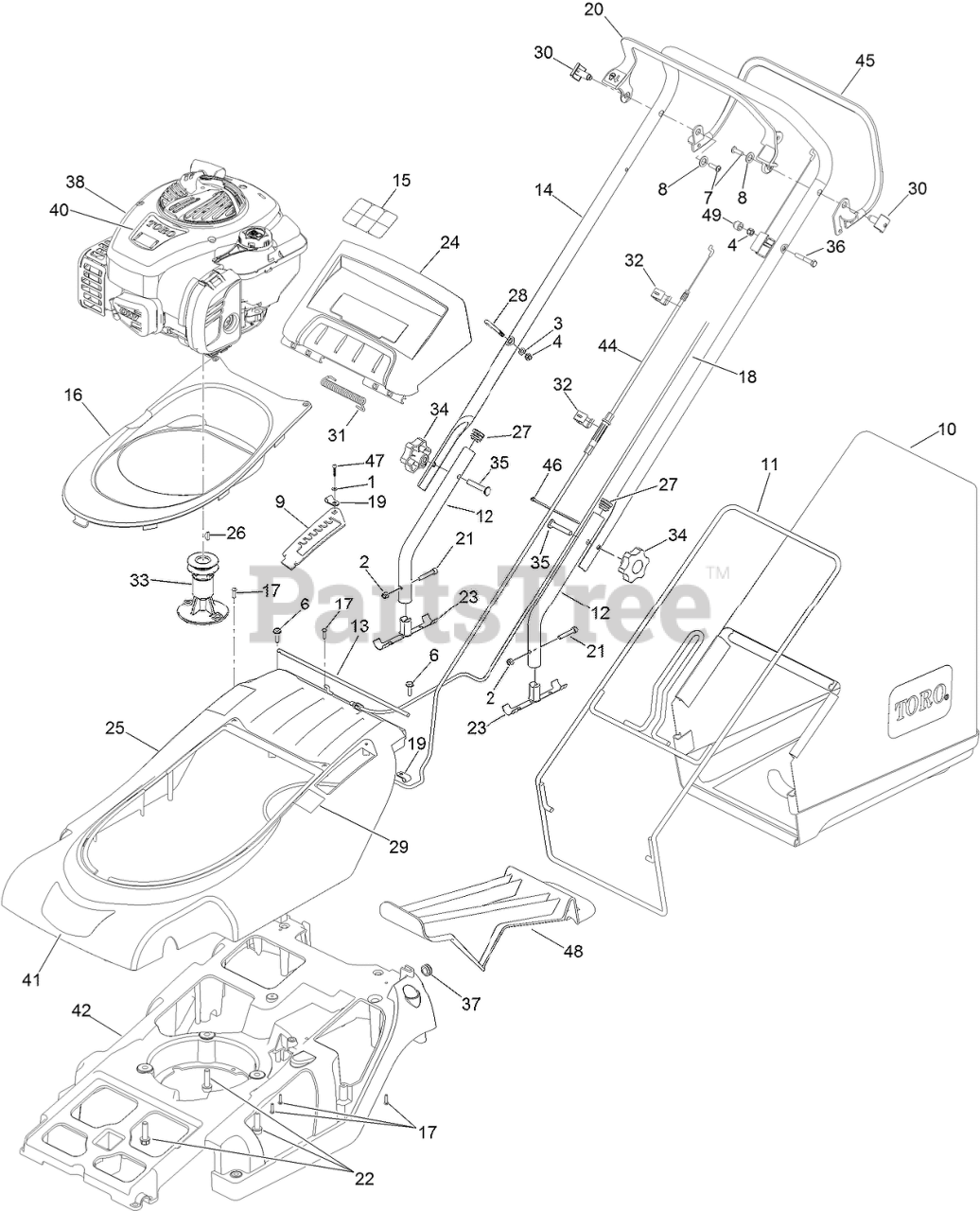

ENGINE, CHASSIS, HANDLE AND BAG ASSEMBLY Parts Diagram

  • Title
1

Toro 09658

WASHER

$

$

Not available

2

Toro 09438

NUT-NYLOC

$

$

Not available

3

Toro 09472

WASHER-PLAIN

$

$

Not available

4

Toro 09544

NUT-NYLOC

$

$

Currently unavailable

6

Toro 09575

SCREW-TAPTITE

$

$

Not available

7

Toro 09687

SCREW

$

$

Currently unavailable

8

Toro 09688

WASHER-NYLON

$

$

Currently unavailable

9

Toro 111-0040

PLATE-HOC

$

$

Currently unavailable

10

Toro 111-4025

GRASSBAG

$

$

Currently unavailable

11

Toro 111-0045-03

FRAME-GRASSBAG

$

$

Not available

12

Toro 111-0051-03

HANDLEBARS-LOWER

$

$

Not available

13

Toro 111-0056

BAR-HINGE

$

$

Currently unavailable

14

Toro 111-0079-03

HANDLEBARS

$

$

Currently unavailable

15

Toro 111-0083

DECAL-SAFETY

$

$

Not available

16

Toro 111-0089

MOULDING-TRIM

$

$

Currently unavailable

17

$

$

Not available

18

Toro 111-0096

CABLE-BRAKE, ENGINE

$

$

Currently unavailable

19

Toro 111-0098

CLIP-P

$

$

Currently unavailable

20

Toro 340179

LEVER-ENGINE

$

$

Not available

21

Toro 111-0118

SCREW-SOCKET

$

$

Not available

22

Toro 09349

SCREW-TAPTITE, UNC

$

$

Currently unavailable

23

Toro 111-0960

PLUG-HANDLEBAR

$

$

Currently unavailable

24

Toro 111-1043

MOULDING-DEFLECTOR, REAR

$

$

Not available

25

Toro 111-3978

TOP-COVER

$

$

Currently unavailable

26

Toro 1662

KEY-WOODRUFF

$

$

Currently unavailable

27

Toro 300160

PLUG-TUBE

$

$

Not available

28

Toro 305093

GUIDE-ROPE

$

$

Currently unavailable

29

Toro 320006

DECAL-HOC

$

$

Currently unavailable

30

Toro 340182

PIN-PIVOT

$

$

Currently unavailable

31

Toro 410030

SPRING-DEFLECTOR

$

$

Currently unavailable

32

Toro 410037

GUIDE-CABLE

$

$

Currently unavailable

33

Toro 410078

CARRIER-BLADE

$

$

Not available

34

Toro 480088

KNOB-HANDLEBAR

$

$

Not available

35

Toro HY226024

BOLT-HANDLEBAR

$

$

Not available

36

Toro ZBH1F040U

SCREW-HH

$

$

Currently unavailable

37

Toro 111-2155

GROMMET-RUBBER

$

$

Not available

38

ENGINE-BRIGGS, 09P7020022H1

Note: Not serviced separately

$

$

Not available

38

ENGINE-BRIGGS, 09P7020022H1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

40

Toro 111-5433

DECAL-ENGINE

$

$

Currently unavailable

41

Toro 111-5432

DECAL-RECYCLE

$

$

Currently unavailable

42

$

$

Not available

44

Toro 111-5481

CABLE-CLUTCH, AUTO-DRIVE

$

$

Currently unavailable

45

Toro 306094W

LEVER-CLUTCH
(Superseded to 111-1921-03)

$

$

Not available

46

Toro HY3966

TIE-CABLE

$

$

Not available

47

Toro 111-6806

SCREW-PLASTITE

$

$

Currently unavailable

48

Toro 111-4382

PLUG-MULCHING

$

$

Currently unavailable

49

Toro 343025

CAP-PLASTIC

$

$

Currently unavailable
