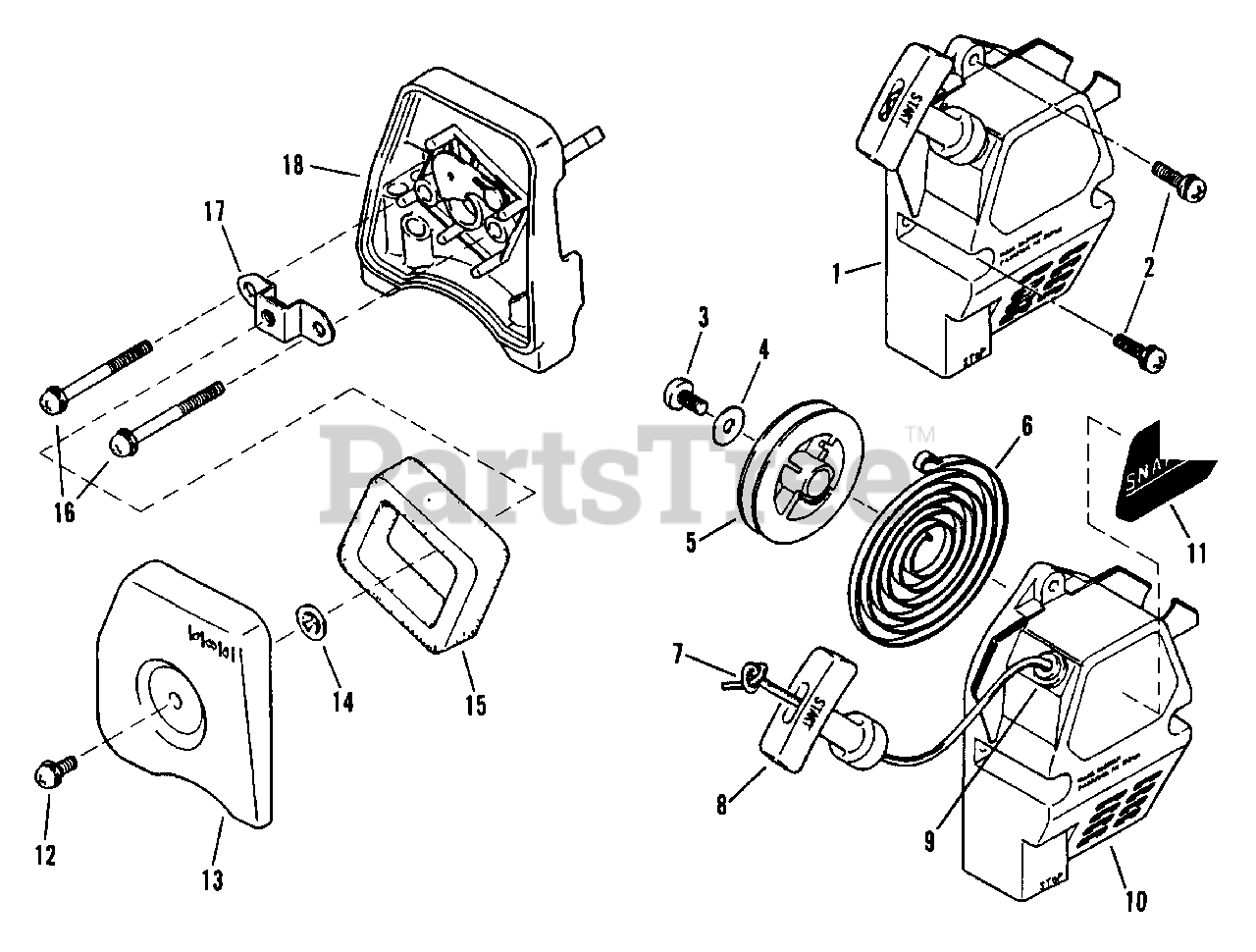

2111 SST (86220) - Snapper String Trimmer Recoil Starter Assembly Parts Diagram

String Trimmer

Recoil Starter Assembly Parts Diagram

  • Title
1

Snapper 7044477

ASSEMBLY, Recoil Starter

Note: (Includes items 3 thru 11)

$

$

Currently unavailable

2

Snapper 7044478

SCREW/WASHER

$

$

Currently unavailable

3

$

$

Currently unavailable

4

$

$

Currently unavailable

$

$

Not available

6

$

$

Not available

7

Snapper 7044377

ROPE, Starter

$

$

Currently unavailable

8

Snapper 7044115

KNOB, Starter

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Snapper 7044481

CASE, Starter

$

$

Currently unavailable

11

Snapper 44294

LABEL, Snapper

$

$

Currently unavailable

12

Snapper 7044095

SCREW/WASHER

$

$

Currently unavailable

13

Snapper 7044466

COVER, Cleaner

$

$

Currently unavailable

$

$

Currently unavailable

15

Snapper 7044468

ELEMENT, Cleaner

$

$

Currently unavailable

16

Snapper 7044056

SCREW/WASHER

$

$

Not available

17

Snapper 7044470

BRACKET

$

$

Currently unavailable

18

Snapper 7044471

CASE, Cleaner

Note: (Choke is part of this assembly)

$

$

Currently unavailable
