2111 SST (86220) - Snapper String Trimmer Clutch And Piston Assembly Parts Diagram

String Trimmer

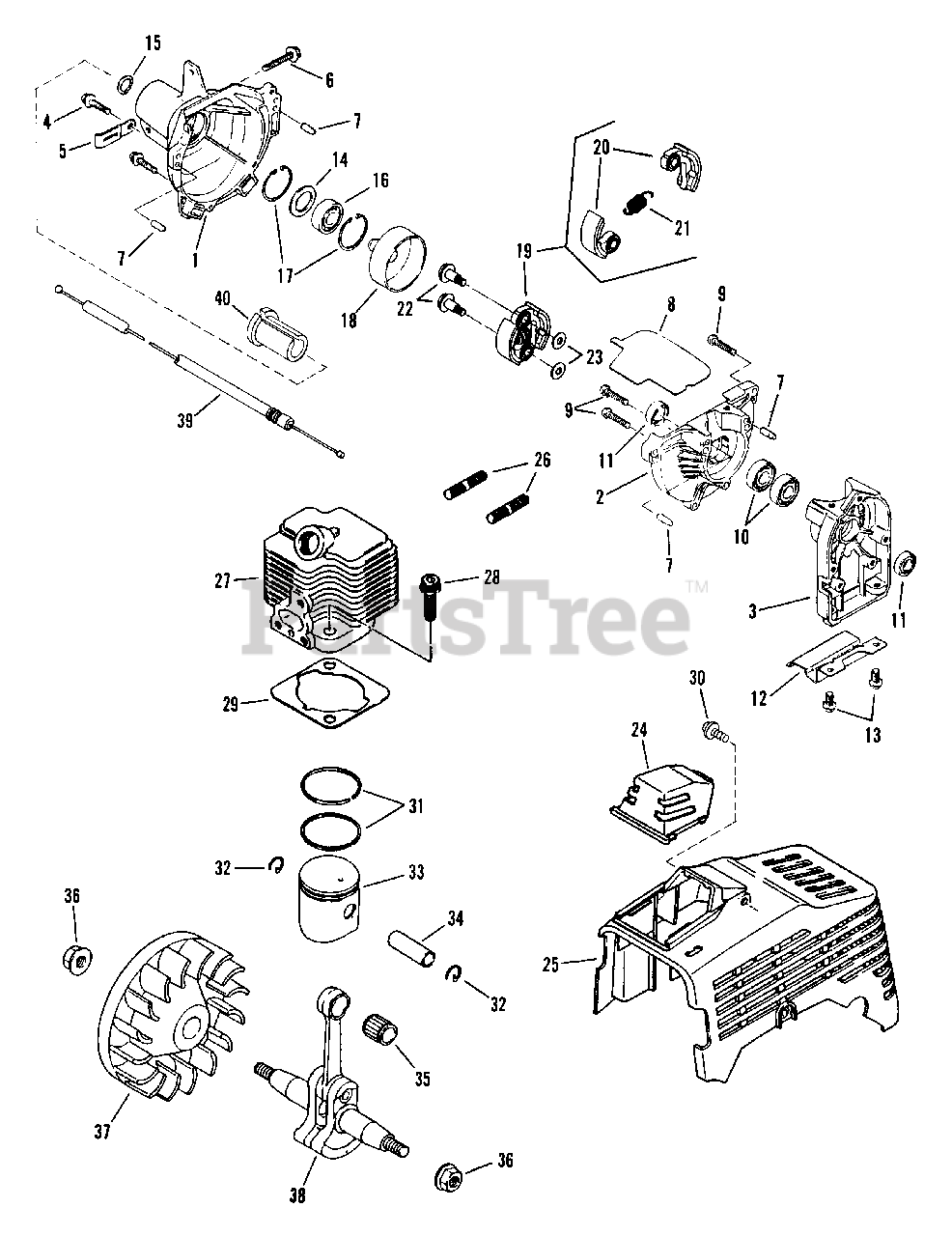

Clutch And Piston Assembly Parts Diagram

  • Title
1

Snapper 7044268

CASE, Clutch

$

$

Currently unavailable

2

Snapper 7044385

CASE, Drive

$

$

Currently unavailable

3

Snapper 7044310

CASE, Starter

$

$

Currently unavailable

4

Snapper 7044034

BOLT/WASHER

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Snapper 7044296

BOLT/WASHER

$

$

Currently unavailable

7

Snapper 7044307

PIN, Dowel

$

$

Currently unavailable

8

Snapper 7044297

GASKET, Muffler/Tank

$

$

Currently unavailable

9

Snapper 7044308

SCREW, Cross Pan Head

$

$

Currently unavailable

10

Snapper 7044309

BEARING, Ball

$

$

Currently unavailable

11

Snapper 7044013

SEAL, Oil
(Superseded to 7044013YP)

$10.99

$

Usually ships in 2-12 days

0

12

$

$

Currently unavailable

13

Snapper 7044299

SCREW/WASHER

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Snapper 7044420

RING, Snap

$

$

Currently unavailable

16

Snapper 7044421

BEARING, Ball
(Superseded to 7044421YP)

$27.99

$

Usually ships in 2-12 days

0

17

Snapper 7044422

RING, Snap

$

$

Not available

18

Snapper 7044423

DRUM, Clutch
(Superseded to 7044423YP)

$64.99

$

Usually ships in 2-12 days

0

19

Snapper 7044369

ASSEMBLY, Clutch

Note: (Includes items 20 & 21)

$

$

Not available

20

Snapper 7044366

FLYWHEEL

$

$

Not available

21

$

$

Currently unavailable

22

Snapper 7044368

BOLT, Clutch

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Snapper 7044424

GUARD, Spark Plug

$

$

Currently unavailable

25

Snapper 7044425

COVER, Top

$

$

Currently unavailable

26

Snapper 7044426

BOLT, Stud

$

$

Currently unavailable

27

Snapper 7044427

CYLINDER

$

$

Currently unavailable

28

Snapper 7044316

BOLT, Flange

$

$

Currently unavailable

29

Snapper 7044317

GASKET, Cylinder
(Superseded to 7044317YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7044428

SCREW/WASHER

$

$

Currently unavailable

31

Snapper 7044404

RING, Top
(Superseded to 7044404YP)

$7.49

$

Usually ships in 2-12 days

0

32

Snapper 7044319

CLIP, Piston Pin

$

$

Not available

33

Snapper 7044405

ASSEMBLY, Piston
(Superseded to 7044405YP)

Note: (Includes item 34)

$51.99

$

Usually ships in 2-12 days

0

34

Snapper 7044406

PIN, Piston

$

$

Not available

35

Snapper 7044322

BEARING, Needle

$

$

Currently unavailable

36

Snapper 7044359

NUT, Conical Spring

$

$

Currently unavailable

$

$

Not available

38

Snapper 7044324

ASSEMBLY, Crank Shaft

$

$

Currently unavailable

39

Snapper 7044269

CABLE, Throttle

$

$

Currently unavailable

40

Snapper 7022092

ISO-Mount

$

$

Not available
