21104 - Toro Whirlwind Walk-Behind Mower (SN: 000000001 - 000999999) (1970) FRONT AXLE & GEAR CASE ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

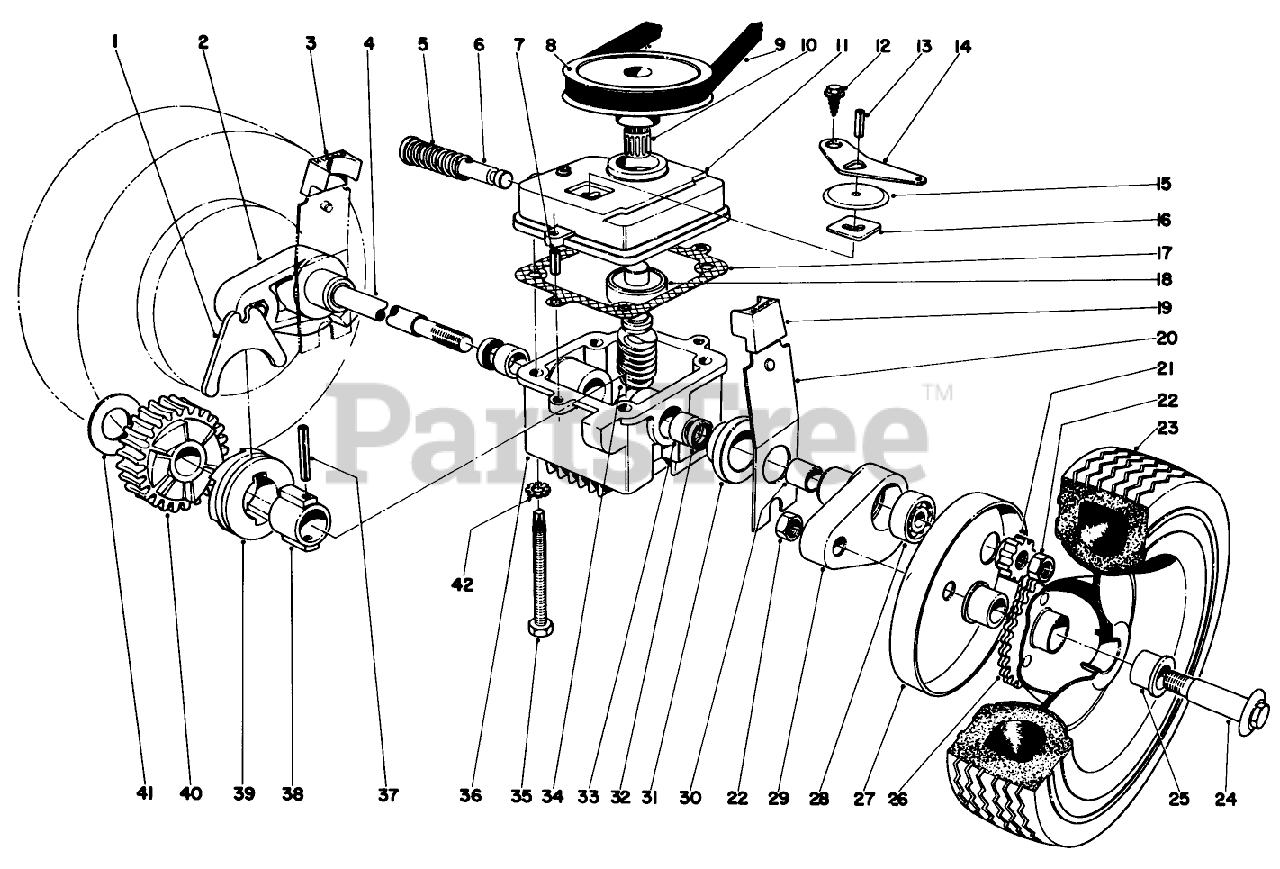

FRONT AXLE & GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 2-6359

Pivot Arm (Incl. Ref. 30)

$

$

Not available

3

$

$

Not available

4

Toro 3-0720

DRIVE SHAFT

$

$

Not available

5

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

6

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$46.99

$

Usually ships in 3-6 days

0

7

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

8

Toro 5-1615

PULLEY

$

$

Not available

9

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

10

Toro 3290-286

TOLERANCE RING

$

$

Not available

11

Toro 5-3283

GEAR CASE COVER

$

$

Not available

12

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

13

Toro 32121-23

PIN-ROLL

$

$

Not available

14

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

15

Toro 3-2615

TRANS DUST COVER

$

$

Not available

16

Toro 3-0681

LATCH PLATE

$

$

Not available

17

Toro 3-0734

GASKET

$9.99

$

Usually ships in 3-6 days

0

18

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

19

Toro 5-0657

ARM KNOB

$

$

Not available

20

Toro 3-2640

Spring Arm

$

$

Not available

21

Toro 3-0738

PINION GEAR

$51.99

$

Usually ships in 3-6 days

0

22

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

23

Toro 4-2600

8 TIRE

$

$

Not available

24

Toro 3-5117

Wheel Bolt
(Superseded to 26-4430)

$54.99

$

Usually ships in 3-6 days

0

25

Toro 5-4504

FLANGE BUSHING

$

$

Not available

26

Toro 3-7570

Wheel Assembly

$

$

Not available

27

Toro 3-5235

WHEEL COVER

$41.99

$

Usually ships in 3-6 days

0

28

Toro 251-183

.375 RPP BALL BEARING

$65.99

$

Usually ships in 3-6 days

0

29

Toro 2-6369

Pivot Arm (Incl. Ref.30)

$104.99

$

Usually ships in 3-6 days

0

30

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

31

Toro 5-0745

End Cap
(Superseded to 92-5714)

$

$

Not available

32

Toro 253-86

Seal
(Superseded to 47-7260)

$8.99

$

In Stock, only 2 left!

0

33

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

34

Toro 5-1616

Worm Shaft

$

$

Currently unavailable

35

Toro 32140-63

Sems Screw

$

$

Currently unavailable

36

Toro 3-1079

Gear Case
(Superseded to 5-8339)

$

$

Not available

37

Toro 32121-40

PIN-SPRING
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

38

Toro 3-0721

SLEEVE

$

$

Not available

39

Toro 3-0722

Clutch
(Superseded to 19-5660)

$46.99

$

Usually ships in 3-6 days

0

40

Toro 3-0723

Worm Gear

$

$

Currently unavailable

41

Toro 3-0724

THRUST WASHER

$

$

Not available

42

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

Toro 4-0809

Gear Case Assv.

$

$

Not available
