21103 - Toro Whirlwind Walk-Behind Mower (SN: 009000001 - 009999999) (1969) 21" WHIRLWIND S.P. KEY-LECTRIC Parts Diagram

Whirlwind Walk-Behind Mower

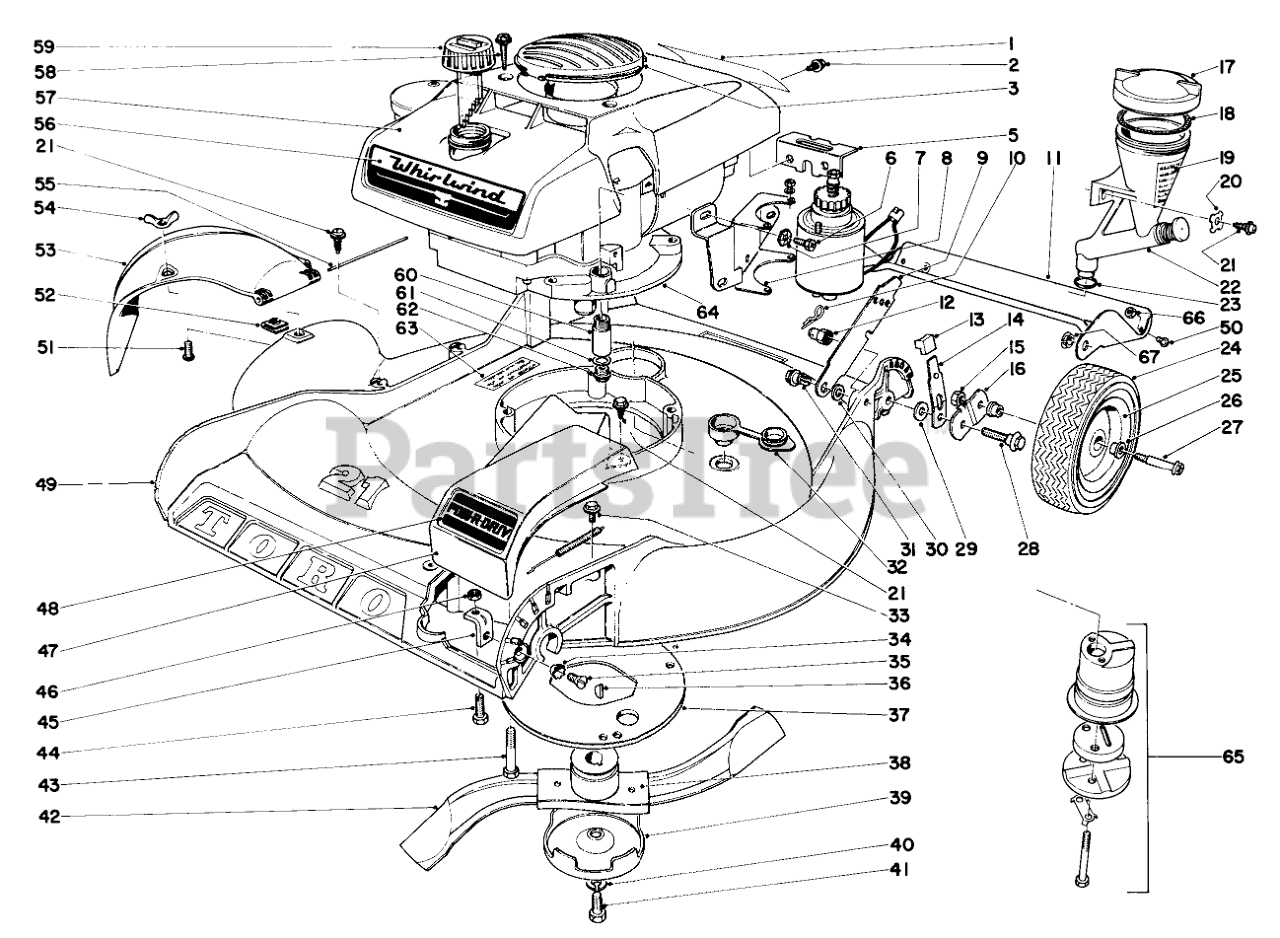

21" WHIRLWIND S.P. KEY-LECTRIC Parts Diagram

  • Title

1

Toro 5-3335

Decal

$

$

Currently unavailable

2

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

3

Toro 5-3516

Insert Shroud

$

$

Currently unavailable

5

Toro 5-3307

Bracket

$

$

Currently unavailable

6

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 5-3517

Bracket

$

$

Currently unavailable

9

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

10

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

11

Toro 5-4662

Safety Shield-Rear

$

$

Currently unavailable

12

Toro 3-6482

Nut
(Superseded to 12-2080)

$25.99

$

Usually ships in 3-6 days

0

13

Toro 5-0656

Knob

$

$

Not available

14

Toro 5-3357

Spring Arm

$

$

Not available

15

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

16

Toro 5-4471

Pivot Arm

$

$

Currently unavailable

17

Toro 3-8429

Cap, Reservoir (Incl. Ref. 18)

$

$

Currently unavailable

18

Toro 5-1391

"O" Ring

$

$

Not available

19

Toro 5-2947

Decal, Reservoir

$

$

Currently unavailable

20

Toro 3290-261

Washer

$

$

Currently unavailable

21

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

22

Toro 5-0625

Reservoir, Oil

$

$

Not available

23

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

24

Toro 4-2600

8 TIRE

$

$

Not available

25

Toro 3-7350

Wheel Assembly (Incl. Ref. 26)

$

$

Not available

26

Toro 5-4504

FLANGE BUSHING

$

$

Not available

27

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

28

Toro 5-3351

Pivot Screw
(Superseded to 12-2440)

$21.99

$

In Stock, only 1 left!

0

29

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

30

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

31

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

32

Toro 5-0655

Washer Plug
(Superseded to 6-4500)

$

$

Not available

33

Toro 32104-82

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

34

Toro 3255-12

Lockwasher

$

$

Not available

35

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

36

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

37

Toro 3-7626

Grass Guard

$

$

Not available

38

Toro 3-7286

BLADE RETAINER WA

$213.99

$

Usually ships in 3-6 days

0

39

Toro 5-4475

Scalp Cup
(Superseded to 5-9530)

$

$

Not available

40

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

41

Toro 3-5246

SPECIAL SCREW

$

$

Not available

42

Toro 5-1610

Blade

$

$

Not available

43

Toro 32140-49

Screw
(Superseded to 11-0580)

$18.99

$

Usually ships in 3-6 days

0

44

Toro 3-7281

SCREW

$

$

Not available

45

Toro 3-7278

ADJ BRACKET

$

$

Not available

46

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

47

Toro 5-3305

Guard, Belt

$

$

Currently unavailable

48

Toro 5-3303

Decal

$

$

Currently unavailable

49

Toro 5-324

Housing

$

$

Currently unavailable

50

Toro 3258-159

Screw-Nylon
(Superseded to 5-6450)

$

$

Not available

51

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

52

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

53

Toro 5-3311

Deflector
(Superseded to 71-8640)

$

$

Not available

54

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

55

Toro 3-2644

HINGE PIN

$

$

Not available

56

Toro 5-3304

Decal

$

$

Currently unavailable

57

Toro 5-3327

Shroud

$

$

Currently unavailable

58

Toro 32104-88

SCREW-HWH

$

$

Not available

59

Toro 5-3460

Gas Cap
(Superseded to 42-0682)

$

$

Not available

60

Toro 3-0761

Extension Oil Drain

$

$

Currently unavailable

61

Toro 28833

Gasket-Oil Drain

$

$

Currently unavailable

62

Toro 27244

Plug Oil Drain

$

$

Currently unavailable

63

Toro 3-7643

Decal
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

64

Toro 221-312

Engine

$

$

Currently unavailable

65

Toro 2-9329

Muffler
(Superseded to 5-4769)

$62.99

$

Usually ships in 3-6 days

0

66

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

67

Toro 256-194

Nyliner

$

$

Currently unavailable

Toro 5-3556

Starter Rope

Note: Not illustrated

$

$

Currently unavailable

Toro 81064

Bag-Set of 2

Note: Not illustrated

$

$

Currently unavailable

Toro 3-6279

Grass Bag Locking Strap

Note: Not illustrated

$

$

Currently unavailable

Toro 4-2089

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 5-4472

Pivot Arm

Note: Not illustrated

$

$

Not available
