211 SST (86228) - Snapper String Trimmer Handle & Handle Mount Parts Diagram

String Trimmer

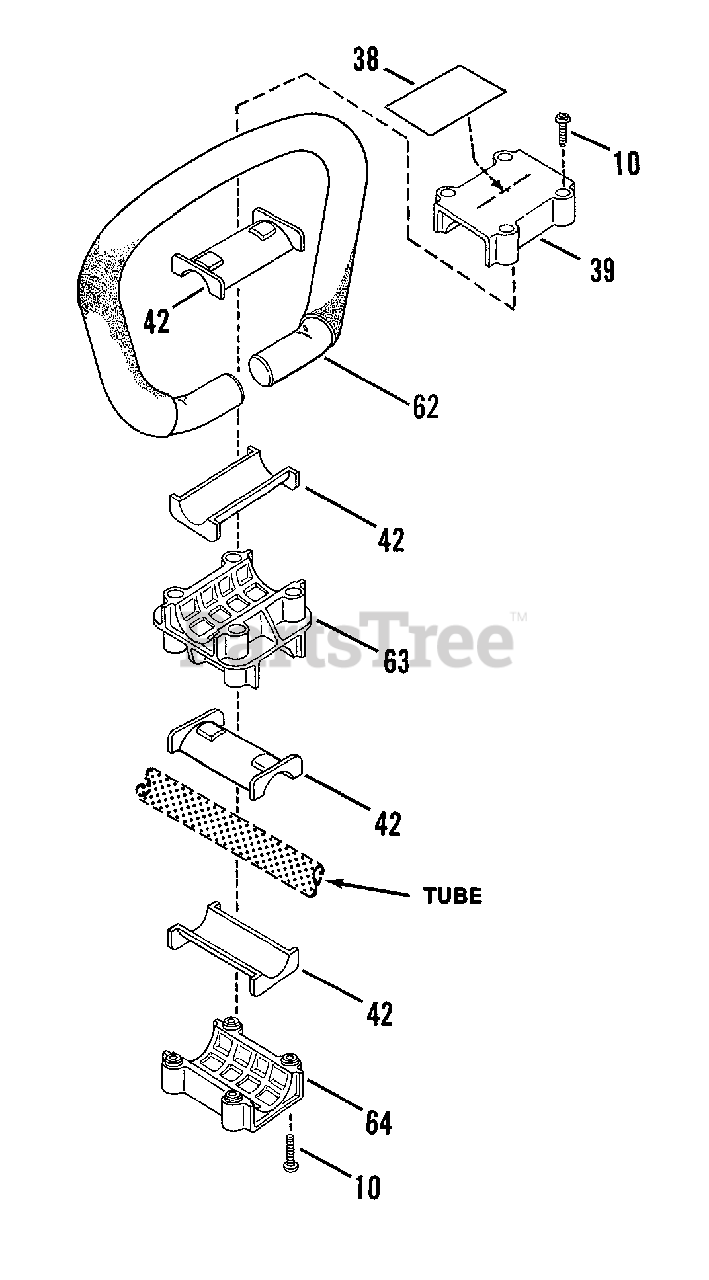

Handle & Handle Mount Parts Diagram

  • Title
10

Snapper 7090902

SCREW, #10-16x3/4"

$

$

Not available

38

Snapper 7015984

DECAL, Replacement Part

$

$

Not available

39

Snapper 7051738

HANDLE MOUNT ASSEMBLY

Note: (Includes 1 of item 38)

$

$

Currently unavailable

42

Snapper 7015739

ISO-MOUNT

$

$

Currently unavailable

62

Snapper 7051671

HANDLE ASSM'Y., Loop

$

$

Not available

63

Snapper 7017001

HANDLE MOUNT, Center

$

$

Currently unavailable

64

Snapper 7018909

HANDLE MOUNT, Cap

$

$

Currently unavailable
