211 SST (86228) - Snapper String Trimmer Carburetor & Spark Arrestor Parts Diagram

String Trimmer

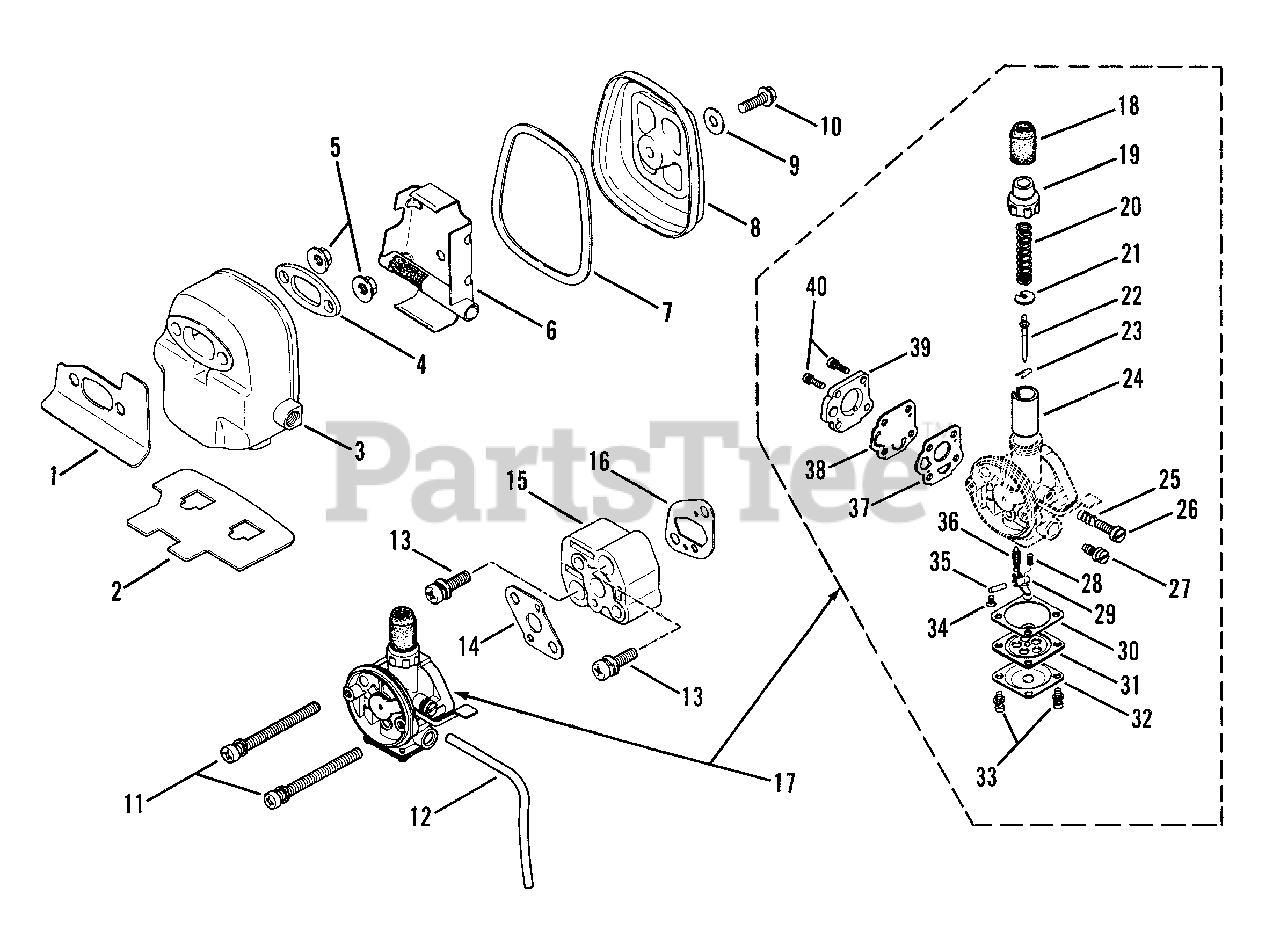

Carburetor & Spark Arrestor Parts Diagram

  • Title

1

Snapper 7044356

GASKET, Muffler

$

$

Not available

2

Snapper 7044413

GASKET
(Superseded to 7044413YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7044412

BODY, Muffler

$

$

Currently unavailable

4

Snapper 7044358

PLATE, Muffler

$

$

Not available

5

Snapper 7044359

LOCKNUT, Sems

$

$

Currently unavailable

6

Snapper 7044360

SPARK ARRESTOR ASSM'Y

$

$

Not available

7

Snapper 7044361

GASKET

$

$

Not available

8

Snapper 7044362

COVER, Muffler

$

$

Not available

9

Snapper 7044363

WASHER

$

$

Not available

10

Snapper 7044364

BOLT, Flange

$

$

Not available

11

Snapper 7044056

SCREW/WASHER, Carb.

$

$

Not available

12

Snapper 7044330

TUBE, Overflow
(Superseded to 7044330YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7044549

SCREW/WASHER

Note: Was 44328

$1.99

$

In Stock, only 1 left!

0

14

Snapper 7044329

GASKET, Carburetor
(Superseded to 7044329YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7044326

INSULATOR, Carburetor

$

$

Currently unavailable

16

Snapper 7044327

GASKET, Insulator
(Superseded to 7044327YP)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper 7044408

CARBURETOR ASSEMBLY

Note: (Includes items 12 & 18 thru 40)

$

$

Currently unavailable

18

Snapper 7044057

CAP, Rubber

$

$

Not available

19

Snapper 7044332

CAP, Mixing Chamber

$

$

Not available

20

Snapper 7044333

SPRING, Throttle
(Superseded to 7044333YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7044334

RETAINER, Spring

$

$

Not available

22

Snapper 7044409

NEEDLE, Jet Assembly
(Superseded to 7044409YP)

$5.99

$

Usually ships in 2-12 days

0

23

Snapper 7044336

CLIP, Needle

$

$

Not available

24

Snapper 7044337

VALVE, Throttle

$

$

Not available

25

Snapper 7044338

SPRING, Throttle Adj. Screw

$

$

Currently unavailable

26

Snapper 7044339

SCREW, Throttle Adj.

$

$

Currently unavailable

27

Snapper 7044340

NEEDLE, Main Jet Assm'y.

$

$

Not available

28

Snapper 7044341

SPRING, Inlet Valve
(Superseded to 7044341YP)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7044346

ARM, Float

$

$

Currently unavailable

30

Snapper 7044342

GASKET, Main Diaphragm

$

$

Not available

31

Snapper 7044348

DIAPHRAGM, Main Assm'y.

$

$

Not available

32

Snapper 7044349

COVER, Main Diaphragm

$

$

Not available

33

Snapper 7044078

SCREW

$

$

Currently unavailable

34

Snapper 7044076

SCREW, Float Pin Set

$

$

Currently unavailable

35

Snapper 7044347

PIN, Float

$

$

Currently unavailable

36

Snapper 7044073

VALVE, Float

$

$

Not available

37

Snapper 7044345

GASKET, Pump Cover

$

$

Not available

38

Snapper 7044344

DIAPHRAGM, Pump

$

$

Not available

39

Snapper 7044343

COVER, Pump

$

$

Currently unavailable

40

Snapper 7044069

SCREW

$

$

Currently unavailable
