211-700 - MTD Tiller (1991) Handle And Wheel Assembly Parts Diagram

Tiller

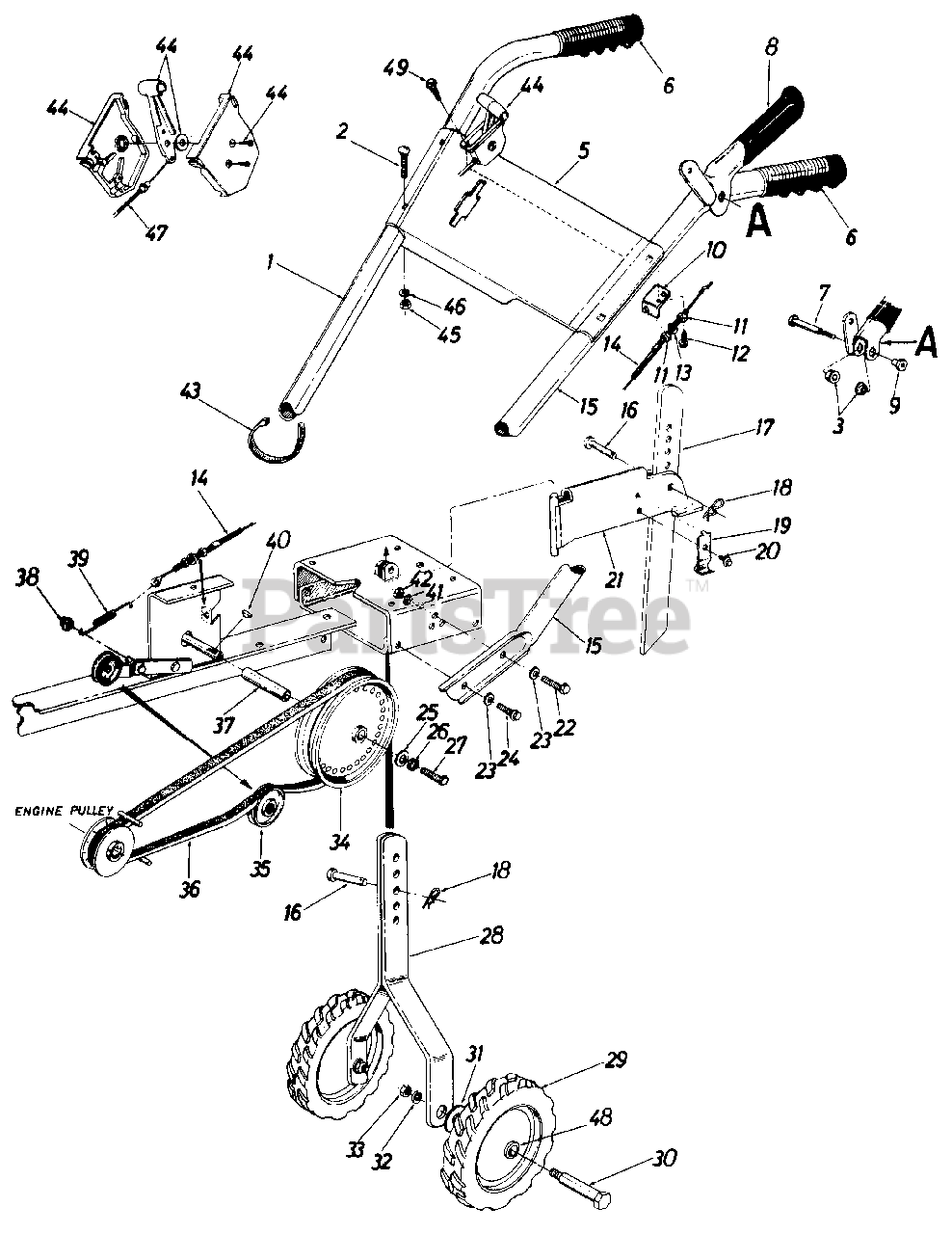

Handle And Wheel Assembly Parts Diagram

  • Title

1

MTD 749-0794

Handle R.H.

$

$

Currently unavailable

2

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

3

MTD 741-0402

Hex Flange Plastic Brg.

$

$

Not available

5

MTD 784-0037A

Handle Panel

$

$

Not available

6

MTD 720-0180

Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

7

MTD 738-0560

Shld. Bolt .374" Dia. x 1.375" Lg.
(Superseded to 938-0560)

Note: (Special)

$10.99

$

In Stock, only 1 left!

0

8

MTD 784-0031

Clutch Grip Ass'y.

$

$

Not available

9

MTD 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

10

MTD 15093

Cable Support Brkt.

$

$

Not available

11

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

12

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 746-0370

Clutch Control Cable
(Superseded to 946-0370)

$

$

Not available

15

MTD 749-0795

Handle L.H.

$

$

Currently unavailable

16

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

17

MTD 04927

Depth Bar

$

$

Not available

18

MTD 714-0149B

Hairpin Cotter

$4.49

$

In Stock, Qty 18

0

19

MTD 732-0380

Depth Bar Spring

$

$

Not available

20

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

21

MTD 04944

Tailpiece Ass'y.

$

$

Not available

22

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0649

Hex Wash. Hd. Self-Tap Scr. 3/8-24 x 7/8" Lg.

$

$

Not available

25

MTD 736-0176

Fl-Wash. 25" I.D. x .930" O.D. x 120" Thk.

$4.99

$

In Stock, only 4 left!

0

26

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

27

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

28

MTD 06813

Wheel Bracket Ass'y.

$

$

Not available

29

MTD 734-0867

Wheel Ass'y. 10" x 1.75"
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

30

MTD 738-0318

Shld. Bolt

$

$

Not available

31

MTD 736-0253

Belleville Washer '/2" I.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

33

MTD 712-0200A

Hex Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

34

MTD 756-0389A

Pulley 6" O.D.

$

$

Not available

35

MTD 756-0137

Idler Pulley

$

$

Not available

36

MTD 754-0190

V-Belt
(Superseded to 954-0190)

$32.99

$

In Stock, Qty 5

0

37

MTD 750-0472

Spacer

$

$

Not available

38

MTD 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

39

MTD 732-0387

Extension Spring

$

$

Not available

40

MTD 714-0388

Hi-Pro Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

41

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 712-0342

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

43

MTD 725-0157

Cable Ties

$3.99

$

In Stock, Qty 20+

0

44

MTD 831-0823A

Throttle Control Box

$32.99

$

In Stock, Qty 20+

0

45

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

MTD 746-0503

Throttle Control Wire 35"
(Superseded to 946-0503)

$

$

Not available

48

MTD 741-0116

Bearing

$

$

Not available

49

MTD 710-0779A

Self-Tapping Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0
